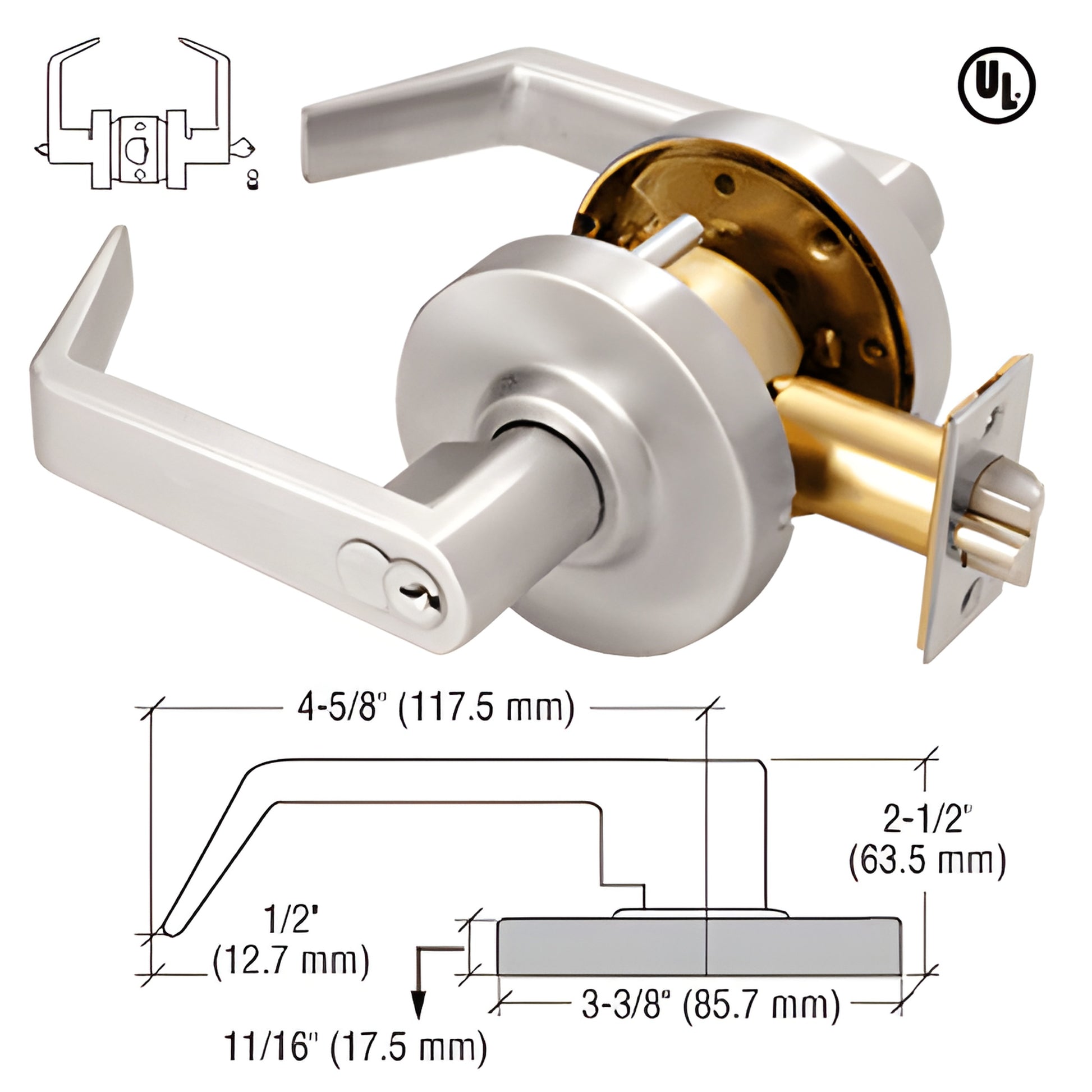

CRL Brushed Nickel Commercial Grade 1 Entry Lever Lockset 7-Pin SFIC
Item# D62ENTBN
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Nickel
Fire Rating Hour
3
Function
Entrance
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Operation Type
F109 Entrance Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
- 7-Pin SFIC Keyway (interchangeable core option)
- Clutch Feature (Grade 1) to prevent lever torque damage
- ANSI A156.2 Grade 1 and 2
- 3 Year Warranty
- UL Listed — 3-hour fire rating
CRL Heavy-Duty Commercial Grade 1 and 2 Lever Locksets — non-handed, reversible locksets with a clutch feature that disengages the outer lever when the latch is locked, preventing latch failure from excessive torque attempts. Ideal for commercial doors requiring a durable, fire-rated lever lockset and long-lasting performance.
UL Listed with a 3-hour fire rating. Fits door thicknesses from 1-3/8" to 1-3/4" (35 to 45 mm) with a 2-3/4" (70 mm) backset. Available with either Schlage® 'C' 6-pin keyway or 7-pin Small Format Interchangeable Core (SFIC). Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike.
ENTRANCE FUNCTION DESCRIPTION: Pushing the inside button locks the outside trim and requires a key to unlock. Pushing and twisting the button locks the outside lever and always requires a key to unlatch. Inside lever always allows free egress.
Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are representative; colors may vary by monitor.
SKU: D62ENTBN — Order this commercial-grade, 7-pin SFIC-compatible, UL 3-hour fire-rated entrance lever lockset today or contact CRL Customer Service for assistance.
Installation Instructions
