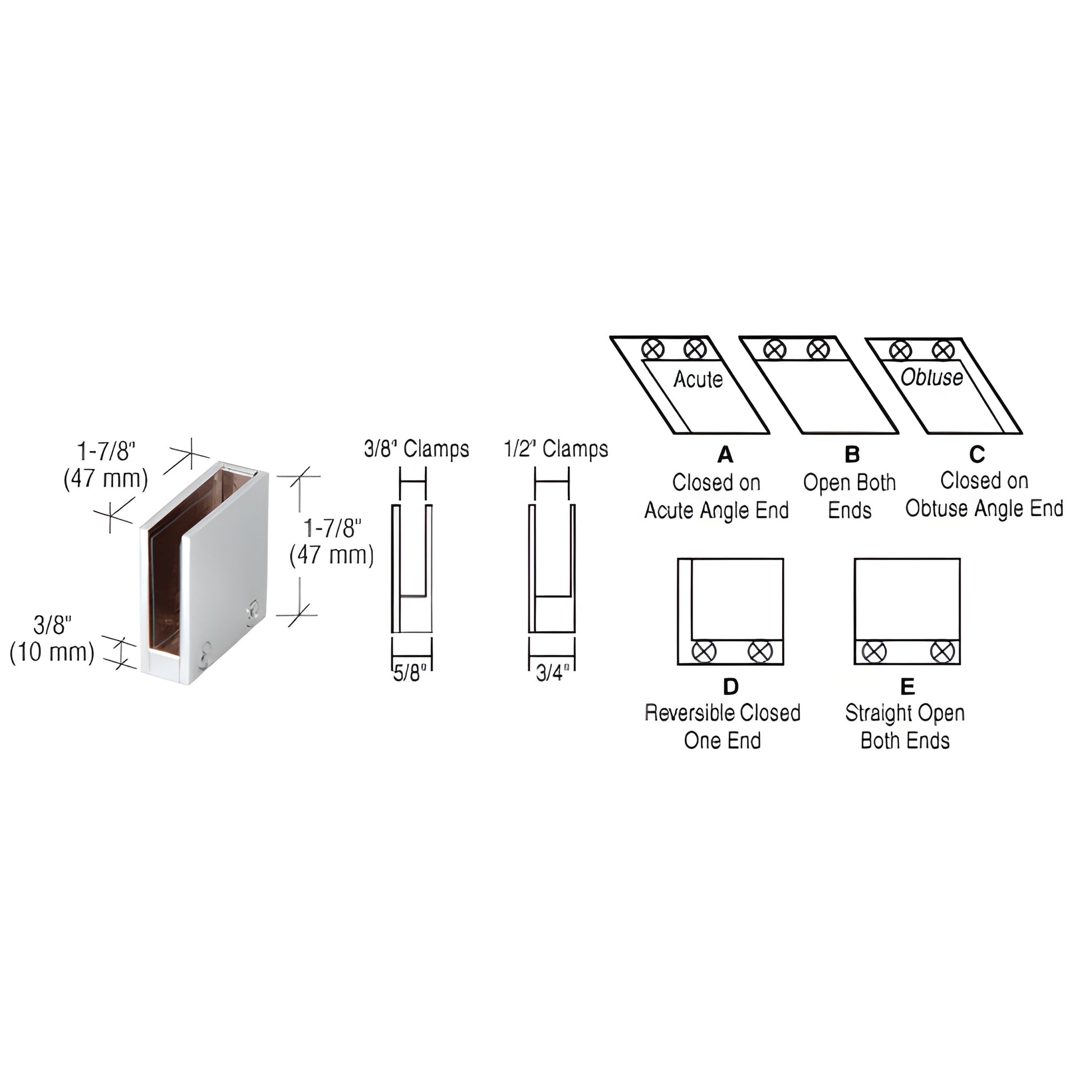

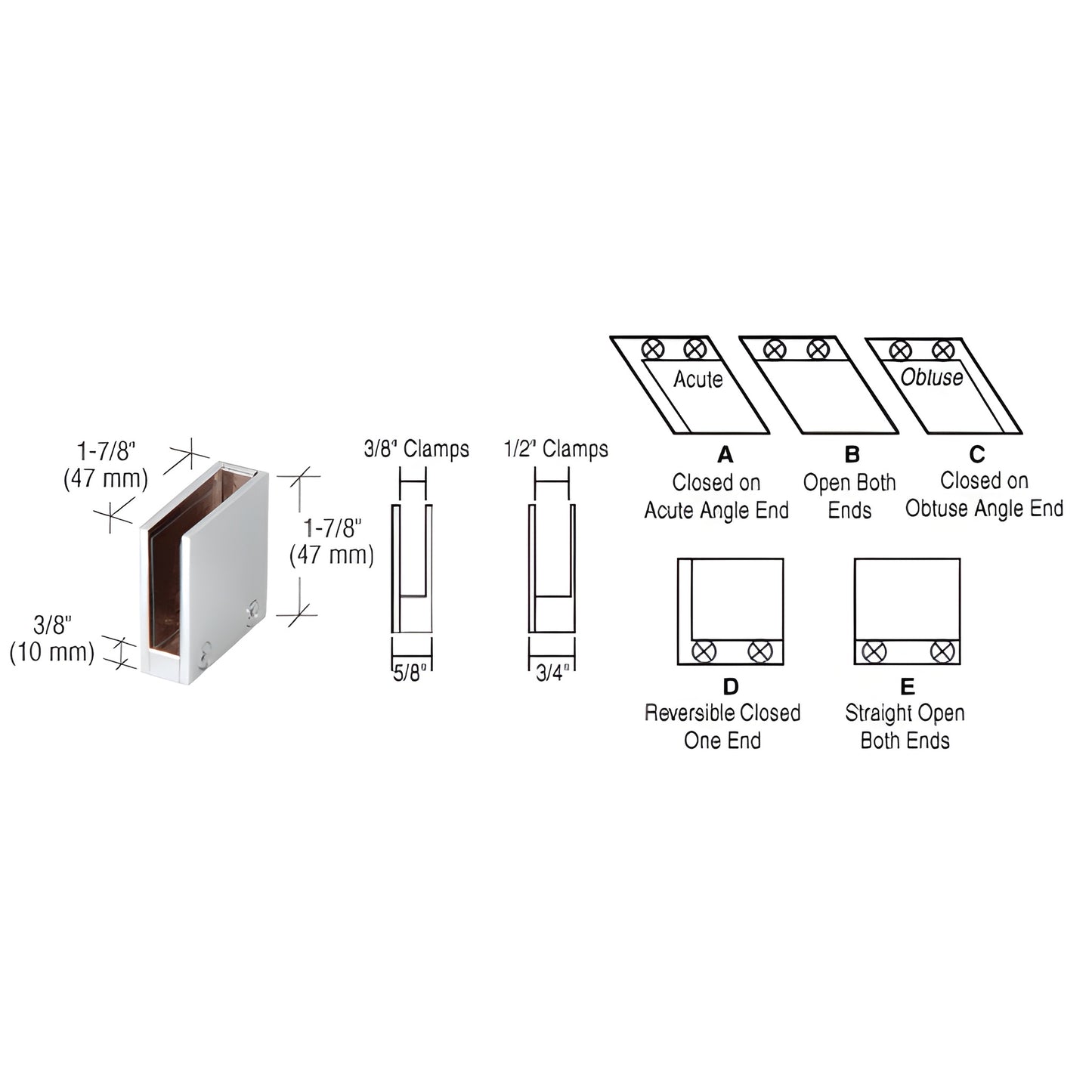

CRL Brushed Nickel 3/8 in 90 Degree End Clamp Type D for Stair Rail
CRL Brushed Nickel 3/8 in 90 Degree End Clamp Type D for Stair Rail
Regular price
$30.57 CAD
Regular price
Sale price
$30.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RH2238BN
Shipping Weight: 7.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Flat
Depth
5/8 in. (16 mm)
Finish/Color
Brushed Nickel
Glazing Thickness
3/8 in. (10 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
Overview
- Chrome, Brass, and Brushed Nickel finishes
- Custom finishes available on request
- For 3/8" (10 mm) tempered glass
CRL 90 Degree Straight End Clamp "D" (SKU: RH2238BN) — reversible 90° clamp designed for the top or bottom edge of a level run in glass railing systems. Ideal for 3/8" (10 mm) tempered glass partitions, railings, and room dividers.
Uses P612** replacement screws. Two clamp sizes accommodate 3/8" or 1/2" (10 or 12 mm) glass.
Features and installation: predrilled, ready-to-use glass and railing clamps that secure tempered glass with a simple loosen-insert-tighten action. Use CRL Tuff-Pak Tape to cushion glass in clamps. For wood mounting use Screw Cat. No. 8X212DW; for metal mounting use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available.
Clamp Types:
A: Acute End Clamp for slanted railings
B: Open Center Clamp for slanted railings
C: Obtuse End Clamp for slanted railings
D: Straight End Clamp for level railings (this product)
E: Straight Open Center Clamp for level railings
Durable 90° glass clamp for commercial and residential tempered glass railing installations — order SKU RH2238BN today.
