CRL Brushed Nickel 1/2 in 90° Straight End Railing Clamp Type D
CRL Brushed Nickel 1/2 in 90° Straight End Railing Clamp Type D
Regular price
$34.09 CAD
Regular price
Sale price
$34.09 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RH2212BN
Shipping Weight: 6.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Flat
Depth
3/4 in. (19 mm)
Finish/Color
Brushed Nickel
Glazing Thickness
1/2 in. (13 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
Overview
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 1/2" (12 mm)

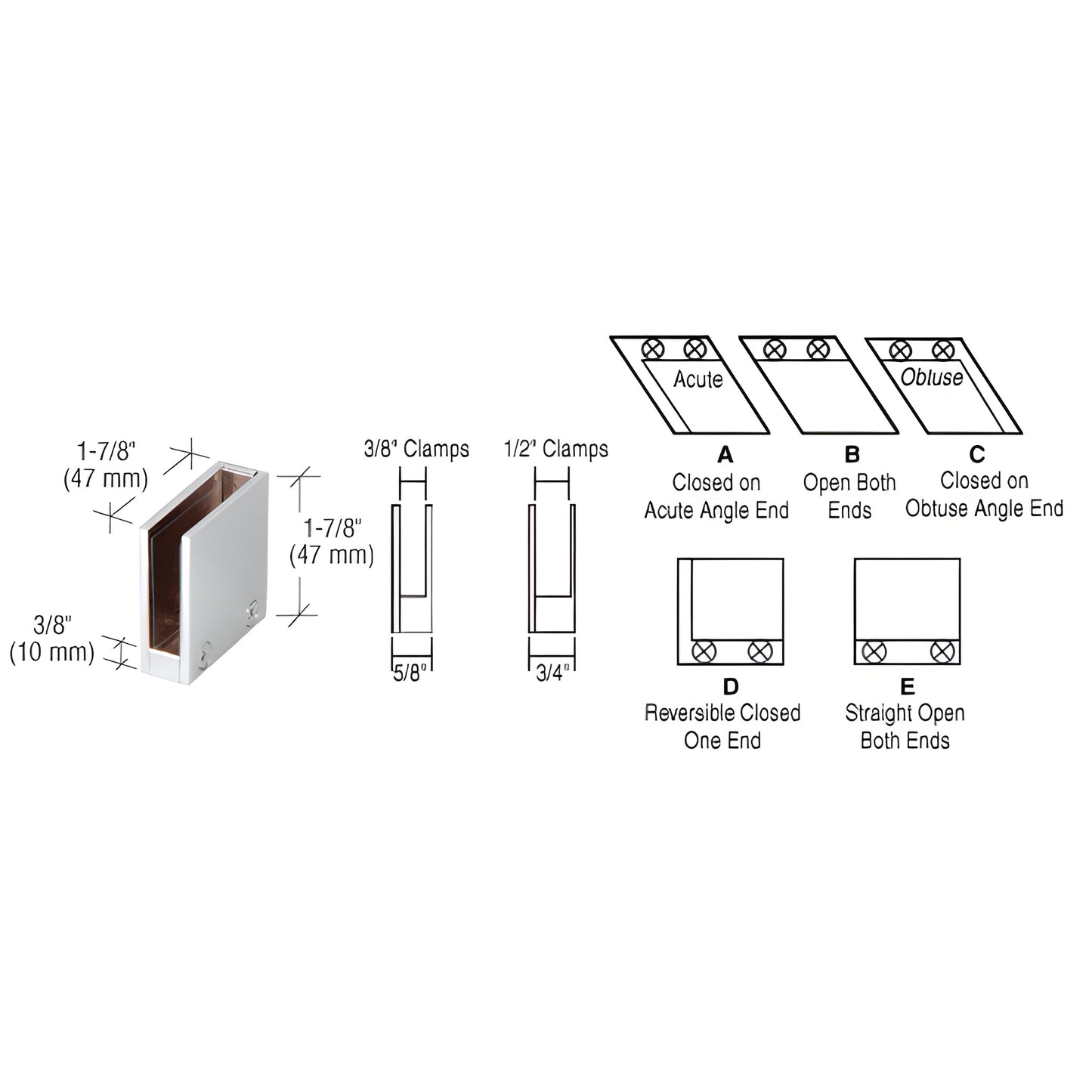

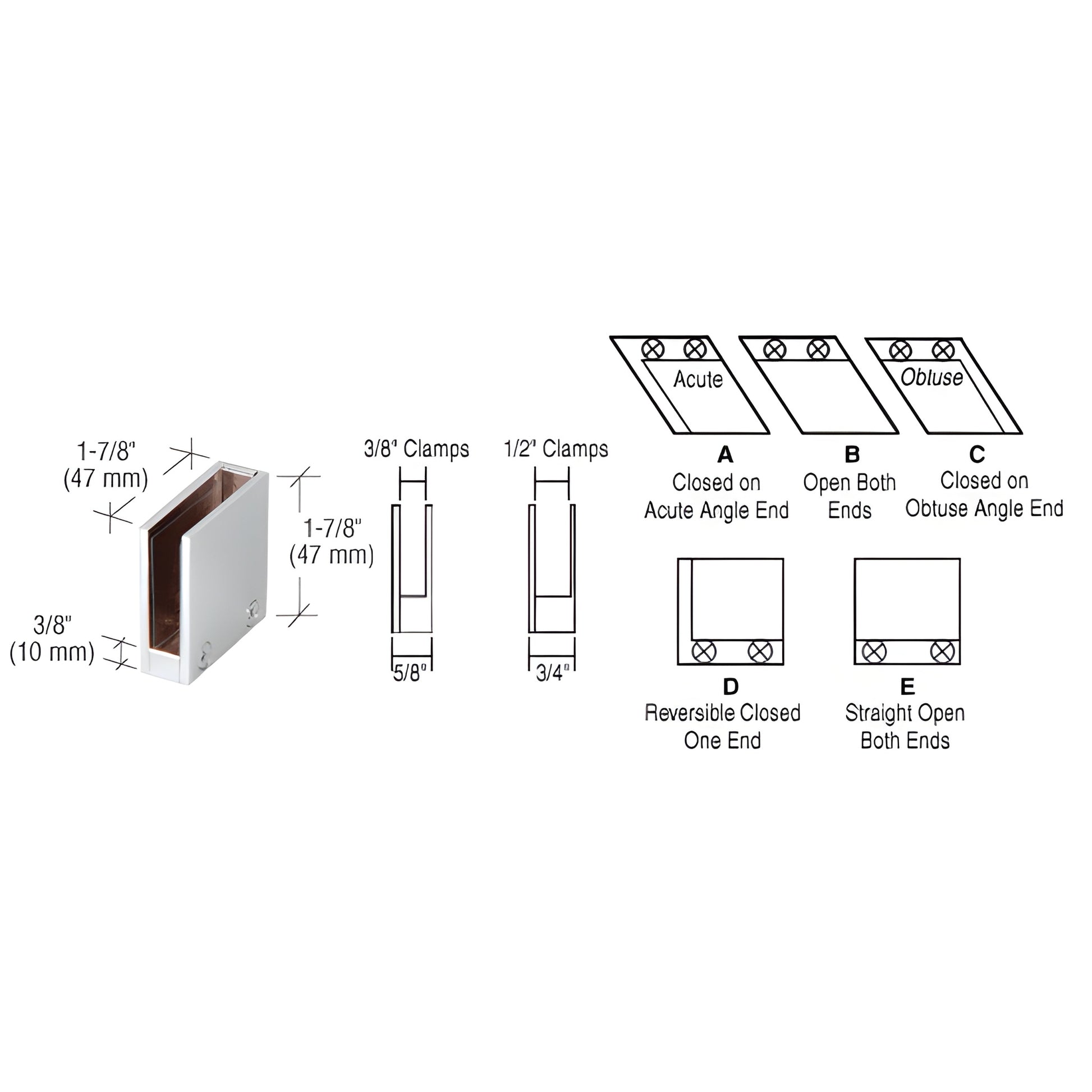

Use the CRL 90 Degree Straight End Clamp "D" (SKU RH2212BN) on top or bottom of 1/2" (12 mm) tempered glass at the end of a level run. The reversible 90° corner clamp installs quickly and is ideal for glass railing and partition applications.
P612** replacement screws
Our glass and railing clamps are predrilled and ready for metal-and-glass railings, partitions, room dividers, and other architectural glass projects. Available for 3/8" or 1/2" (10 or 12 mm) tempered glass, these clamps ship in three stocked finishes with custom finishes on request. Installation is simple: loosen the screw, insert the glass edge, then tighten. We recommend CRL Tuff-Pak Tape to cushion glass in clamps. For wood mounts use Screw Cat. No. 8X212DW; for metal mounts use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available on request.
A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
