CRL Polished Brass 1/2" Type D 90° End Clamp for Stair Railing

• Chrome, Brass, and Brushed Nickel finishes
• Custom finishes available on request
• For 1/2" (12 mm) tempered glass

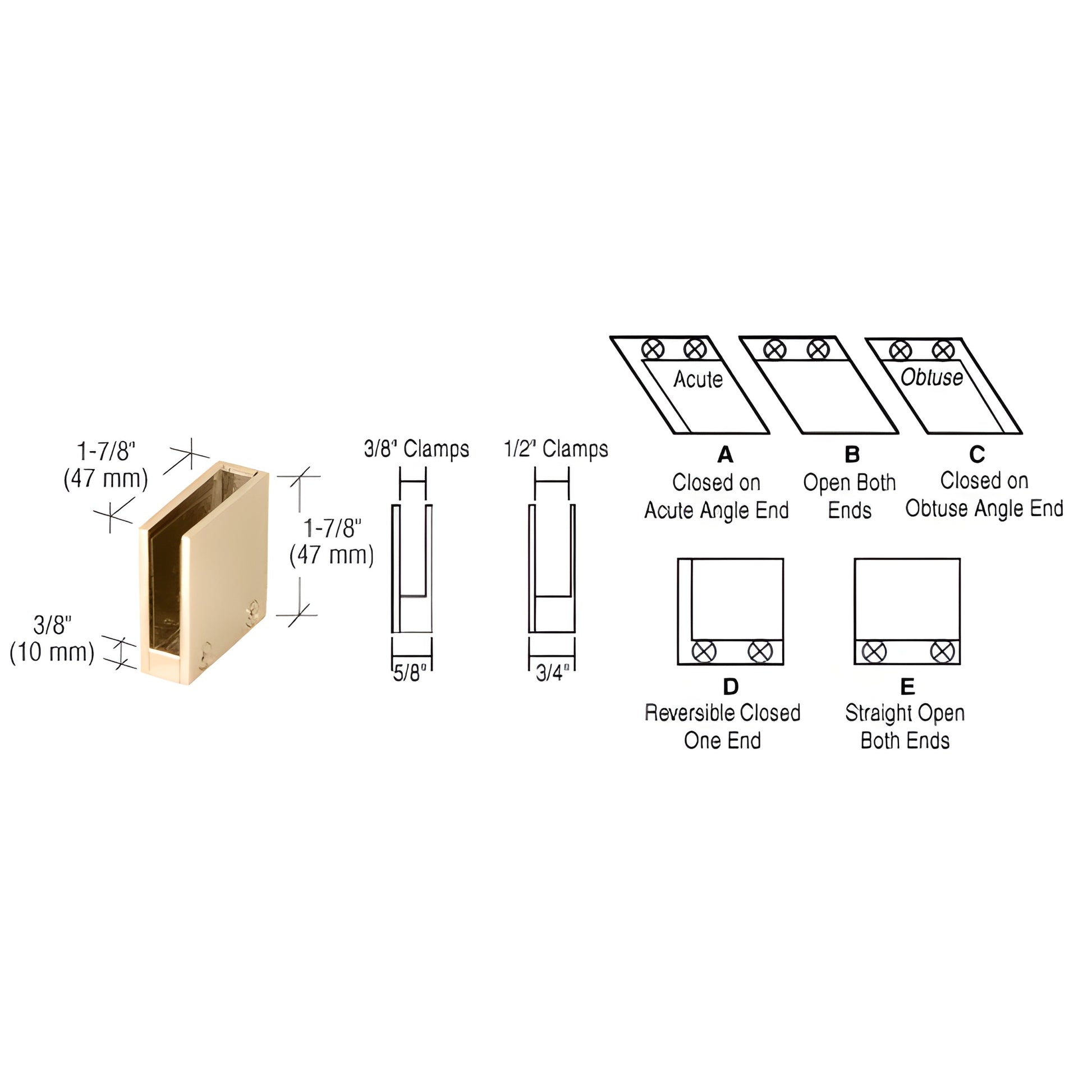

SKU: RH2212BR — CRL 90 Degree Straight End Clamp "D" is a reversible 90° straight end glass clamp designed for level railings and level runs. Install on the top or bottom edge of 1/2" (12 mm) tempered glass for secure glass railing and partition connections.

Replacement screws: P612**

Our glass and railing clamps are predrilled and ready for glass railing, staircase, partition, room divider, and balustrade applications. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Three popular stocked finishes and custom finish options are available. To install, loosen the screw at one end, insert the glass edge, then tighten. Use CRL Tuff-Pak Tape to cushion glass in clamps. For wood mounting use Screw Cat. No. 8X212DW; for metal mounting use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available on request.

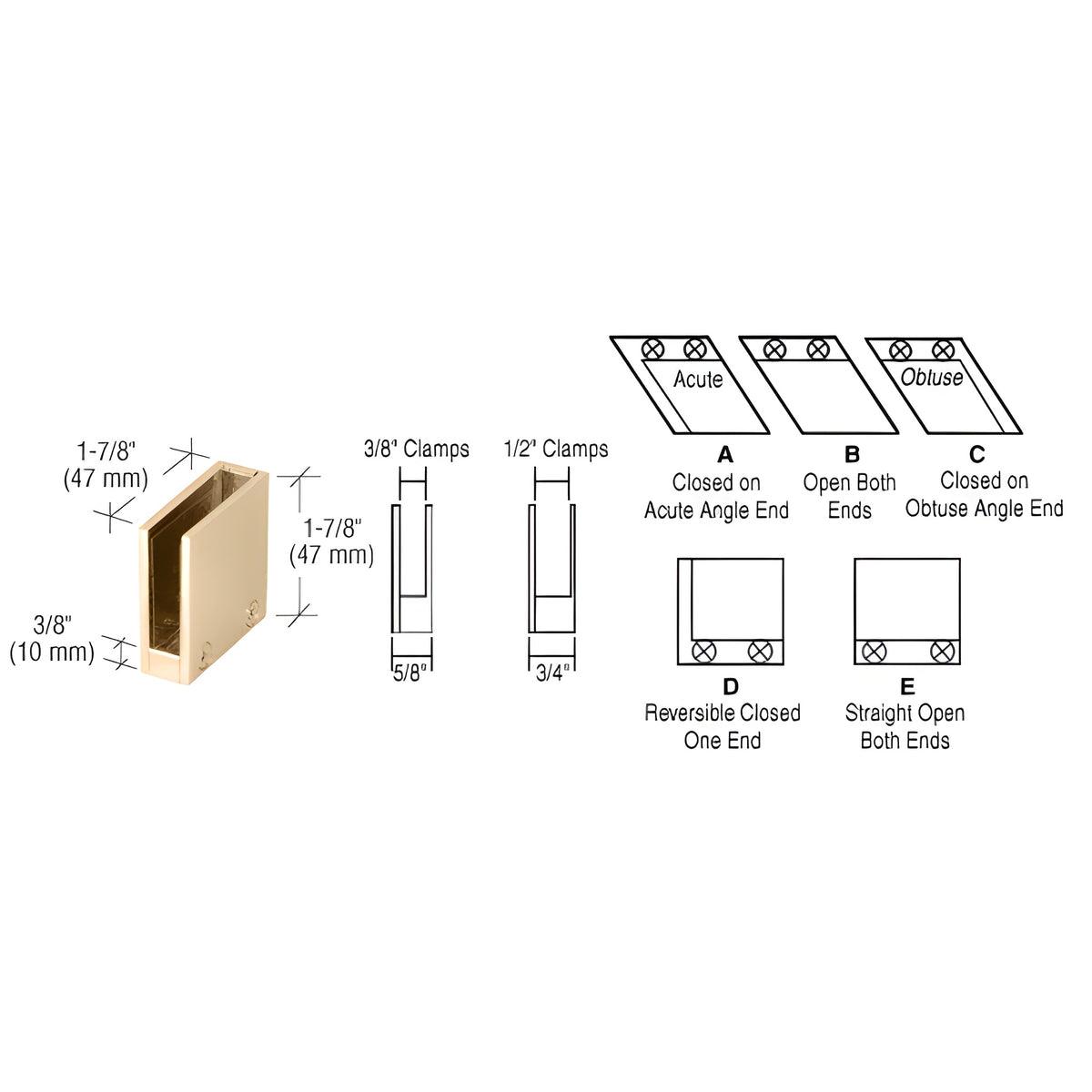

A: Acute End Clamp for slanted railings
B: Open Center Clamp for slanted railings
C: Obtuse End Clamp for slanted railings
D: Straight End Clamp for level railings
E: Straight Open Center Clamp for level railings

Brass Finish Advisory:
