CRL Chrome 1/2 in Type D 90° Rail End Clamp for Stairs & Walkways
CRL Chrome 1/2 in Type D 90° Rail End Clamp for Stairs & Walkways
Regular price
$34.09 CAD
Regular price
Sale price
$34.09 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RH2212CH
Shipping Weight: 6.32 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.32 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Flat
Depth
3/4 in. (19 mm)
Finish/Color
Chrome
Glazing Thickness
1/2 in. (13 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
Overview
- Chrome, Brass, and Brushed Nickel finishes
- Custom finishes available on request
- For 1/2" (12 mm) tempered glass
Use CRL 90 Degree Straight End Clamp "D" (SKU RH2212CH) on the top or bottom edge of glass at the end of a level run. These reversible 90° end clamps secure 1/2" (12 mm) glass for glass railing systems, partitions, and room dividers.
P612** replacement screws
Our glass and railing clamps arrive predrilled and ready to install. Designed for tempered glass applications, two clamp sizes accommodate 3/8" or 1/2" (10 or 12 mm) glass. Stocked in three popular finishes with custom finishes available, clamps install quickly—loosen the screw, insert the glass edge, then tighten. Use CRL Tuff-Pak Tape to cushion glass in clamps. For wood mounting use screw Cat. No. 8X212DW; for metal mounting use screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available on request.

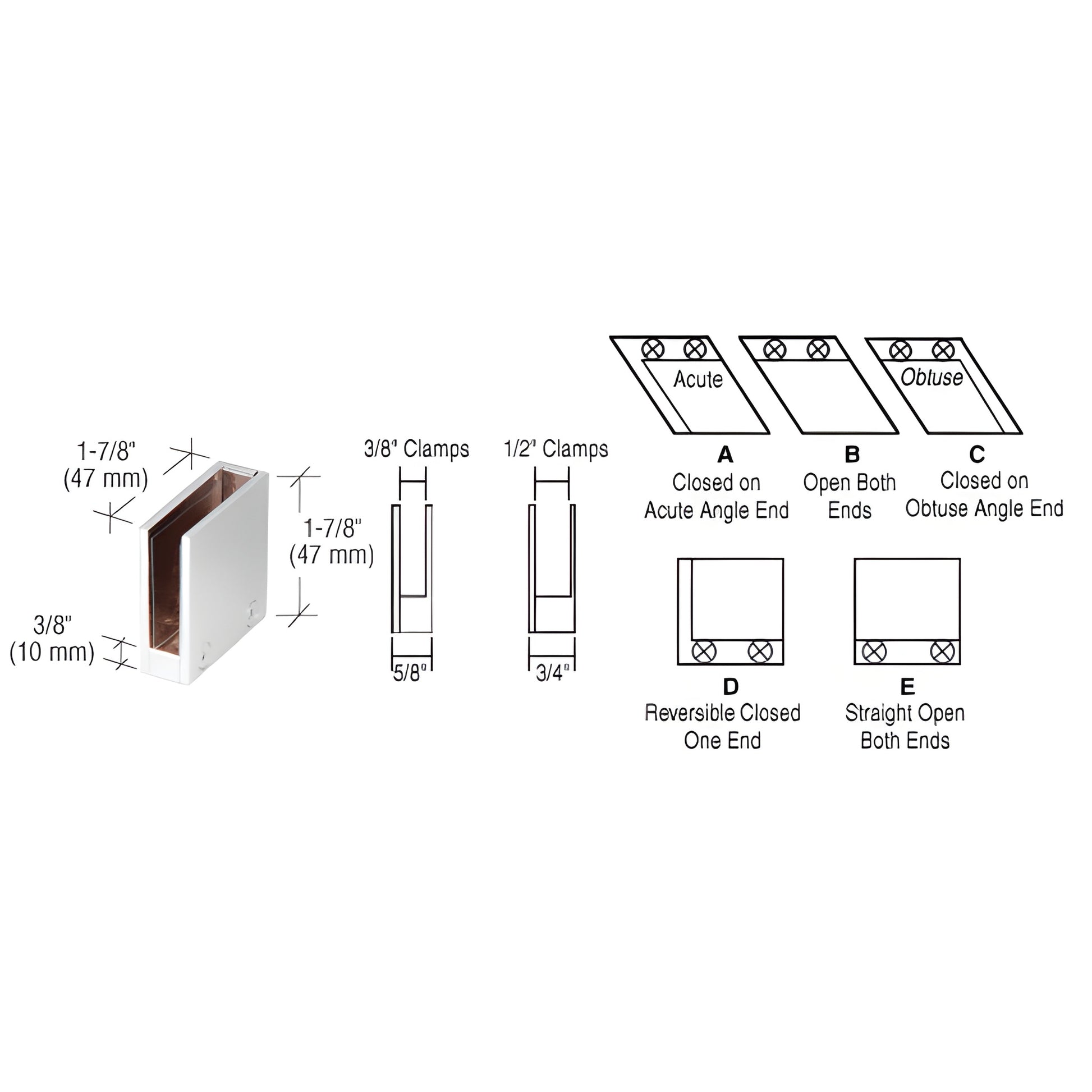

A: Acute End Clamp for slanted railings
B: Open Center Clamp for slanted railings
C: Obtuse End Clamp for slanted railings
D: Straight End Clamp for level railings
E: Straight Open Center Clamp for level railings
