CRL Chrome 3/8 in 90° Type D Glass End Clamp for Stairs/Walkways
CRL Chrome 3/8 in 90° Type D Glass End Clamp for Stairs/Walkways
Regular price
$38.79 CAD
Regular price
Sale price
$38.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RH2238CH
Shipping Weight: 6.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Flat
Depth
5/8 in. (16 mm)
Finish/Color
Chrome
Glazing Thickness
3/8 in. (10 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
Overview
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 3/8" (10 mm)
CRL 90 Degree Straight End Clamp "D" (SKU: RH2238CH) — durable end clamp for level railings and glass balustrades. Use on the top or bottom edge of 3/8" (10 mm) tempered glass at the end of a level run. Clamps are reversible for 90° corners and are predrilled for quick installation.
P612** replacement screws
Our glass and railing clamps are predrilled and ready to use in metal and glass railings, partitions, room dividers and more. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Stocked in three popular finishes with custom finishes available on request. Installation is simple — loosen one screw, insert the glass edge and tighten. Use CRL Tuff-Pak tape to cushion glass in clamps. For wood mounting use Screw Cat. No. 8X212DW. For metal mounting use Screw Cat. No. FHSTMSS. Drawings and templates are available.

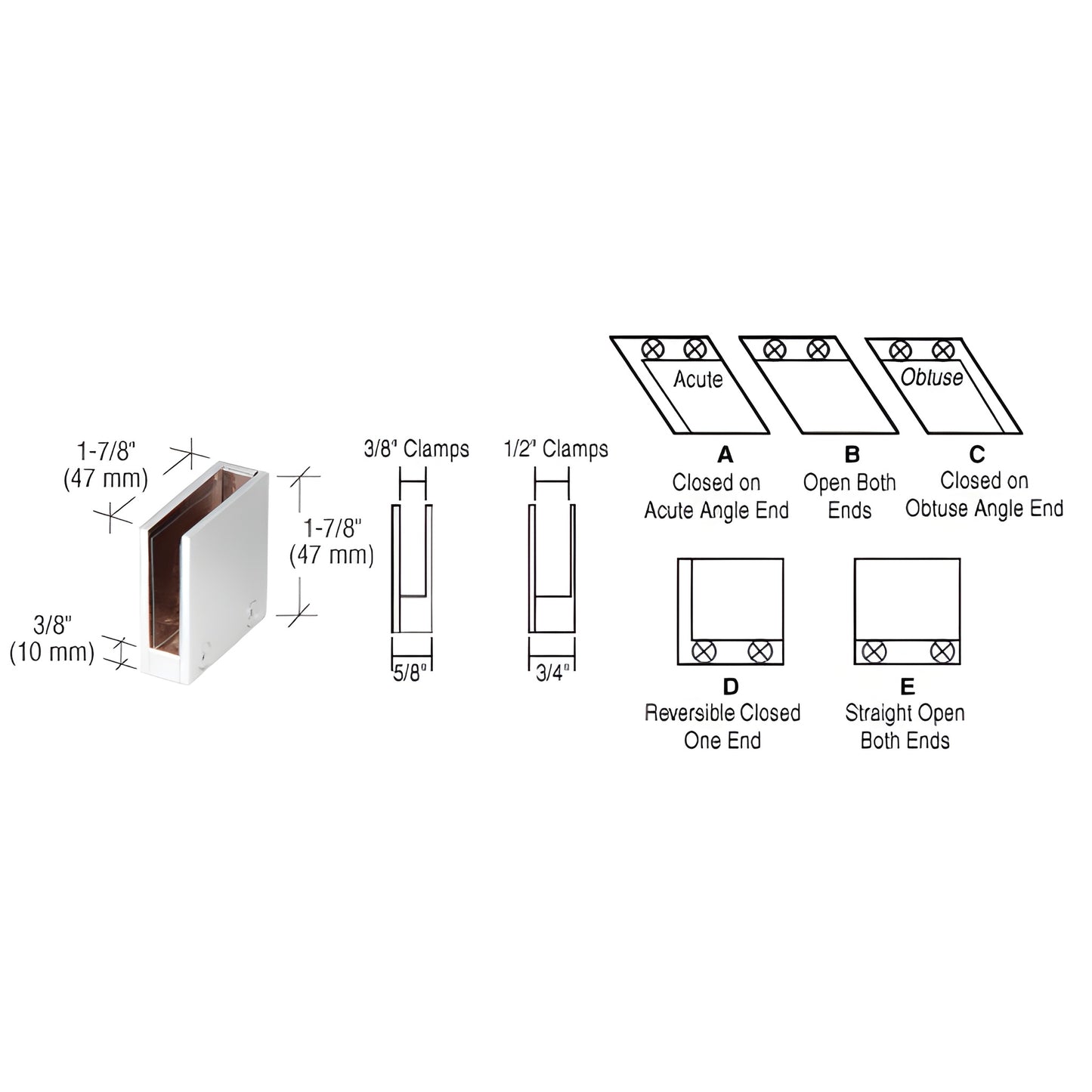

Clamp types:
A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Shop RH2238CH now — order or request a custom finish and installation template.
Specifications
Templates
