Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor.
CRL
CRL Polished Brass 3/8" 90° Type D End Clamp for Stair & Walkway Railings
CRL Polished Brass 3/8" 90° Type D End Clamp for Stair & Walkway Railings
Regular price
$36.44 CAD
Regular price
Sale price
$36.44 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RH2238BR
Shipping Weight: 6.08 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.08 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Flat
Depth
5/8 in. (16 mm)
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. (10 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
Overview
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 3/8" (10 mm)

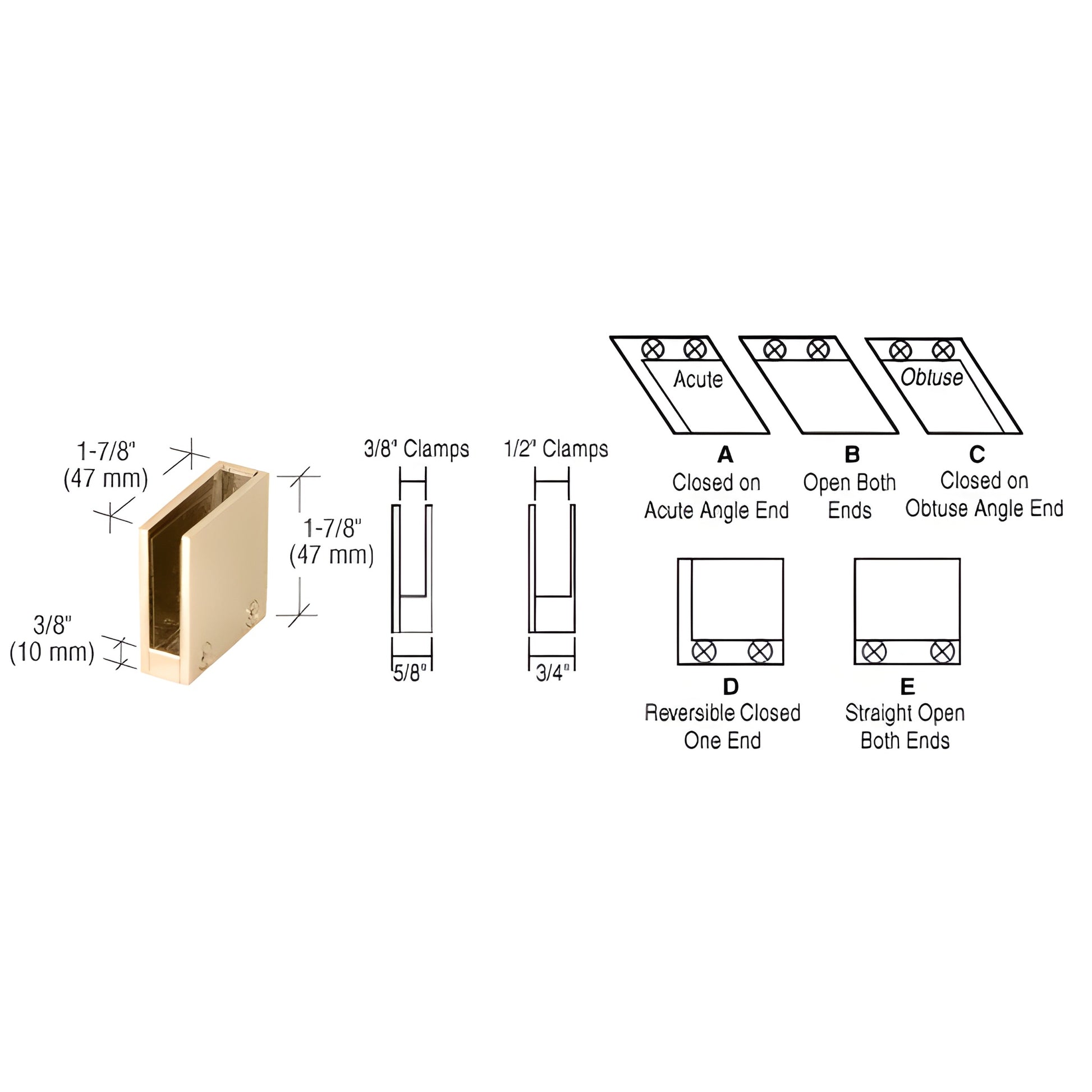

CRL 90 Degree Straight End Clamp "D" (SKU: RH2238BR) — reversible 90° straight end clamp for glass railings. Install on the top or bottom edge of glass at the end of a level run. Ideal for tempered glass railing systems and partition projects.
P612** replacement screws
Our glass and railing clamps are predrilled for quick installation in metal-and-glass railings, partitions, room dividers, and more. Available for 3/8" (10 mm) tempered glass; additional size options accommodate 1/2" (12 mm) where noted. Stocked in three popular finishes with custom finish options on request. To install: loosen screw on one end, insert the glass edge and tighten. Use CRL Tuff-Pak Tape to cushion glass in clamps. For wood mounts use Screw Cat. No. 8X212DW; for metal mounts use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available.

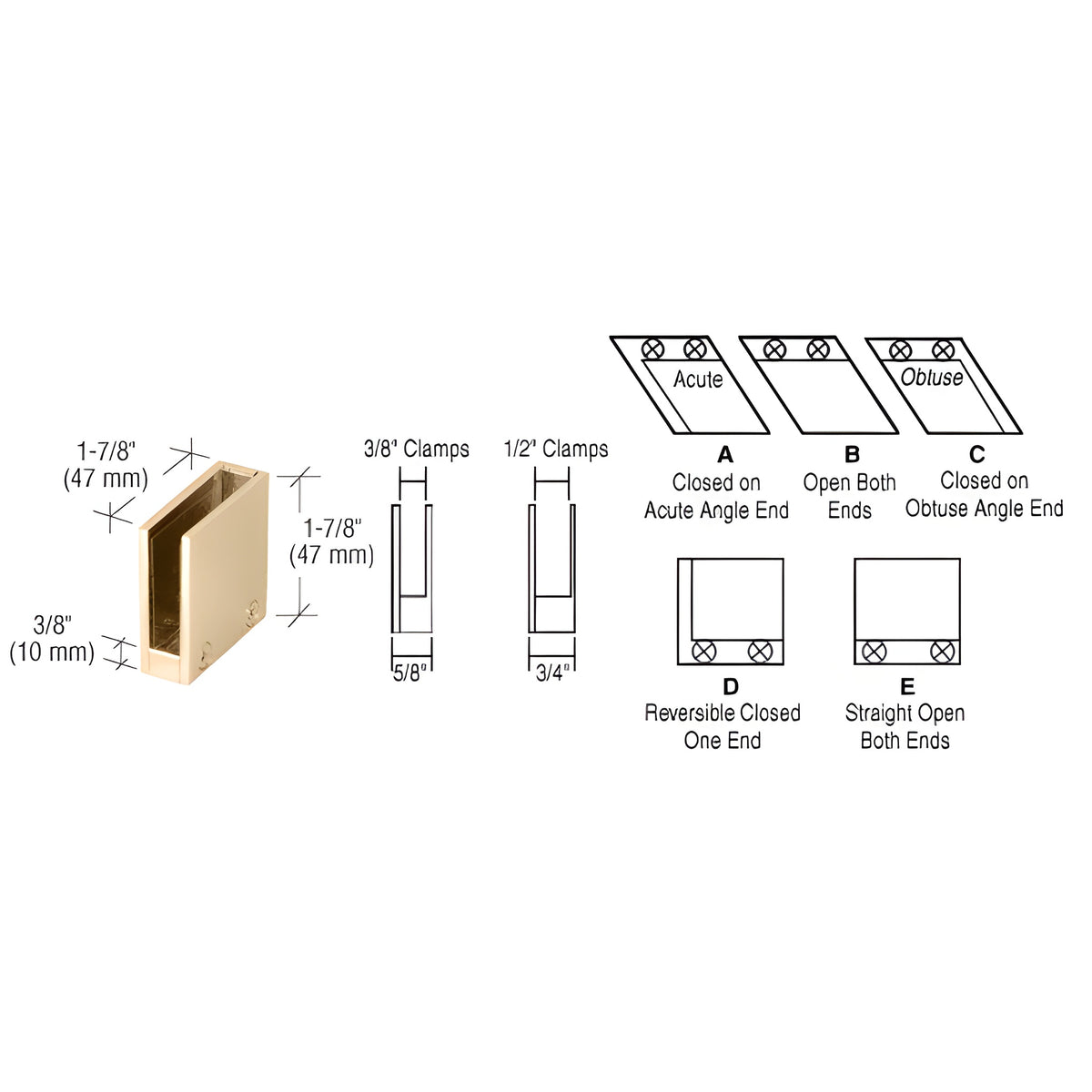

Clamp Types:
A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. See the Brass Finish Disclaimer in the Technical References for care and maintenance details.
Need this clamp for a glass railing project? Contact CRL or add SKU RH2238BR to your cart to order.
Specifications
Cleaning & Maintenance
