Product Details
- Secures Shower Enclosures Not Going All the Way to Ceiling
- Use Monolithic Tempered Glass
- 98" (2.49 m) Lengths in a Choice of Five Popular Finishes
- Dual Profile Allows User Choice of Soft Rounded Side or Flat Side
- Junior Adapter Block Required for Use With Junior Prima Hinge Only (Sold Separately)

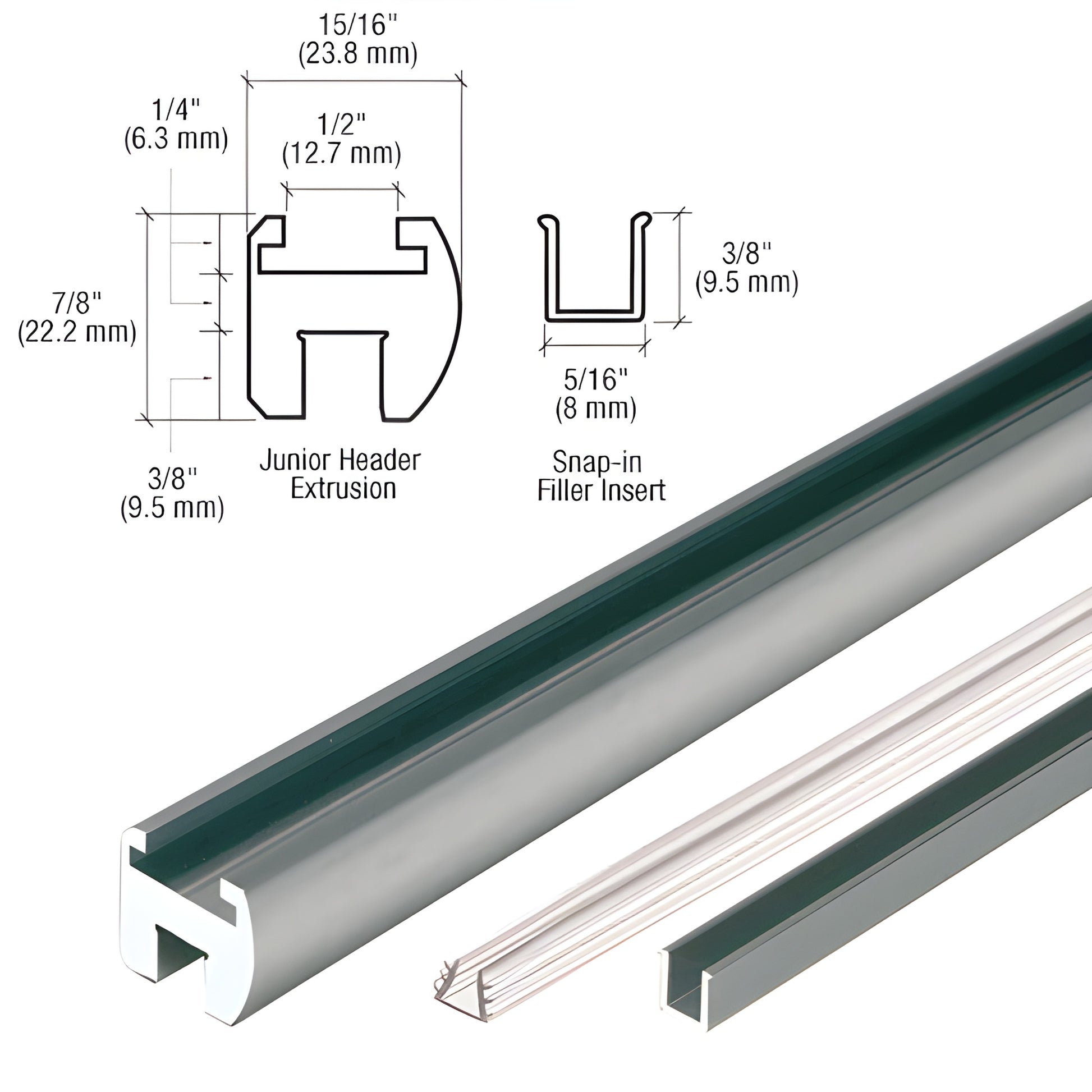

- One 98" (2.49 m) Piece of HE06 Header Extrusion
- One 36" (914 mm) Piece of 1N06 Snap-In Filler for Door Pocket
- 98" (2.49 m) of Vinyl for 1/4" (6 mm) Thick Glass
- One Pack of Two Wall Mounting Brackets
- Six Corners (Two Adjustable, Two Fixed 90 Degree, and Two Fixed 135 Degree)
- One 3 mm Allen Wrench
- 12 each 8 x 3/8" Pan Head Phillips Sheet Metal Screws SPECIFICATIONS: Material: 6063-T5 Extruded Aluminum
The CRL Junior Header Kit for 1/4" (6 mm) thick tempered safety glass provides support to shower enclosures not going all the way to the ceiling. Installers can fabricate in-house using the components provided.
NOTE: The Junior Header Kit is adaptable to Junior Prima Hinges, if using the Kit with Top and Bottom Mount Pivot Hinges. The Kits contain all items needed for installation, except the JRHAB01 Junior Adapter Block, which must be purchased separately.
EACH JUNIOR HEADER KIT CONTAINS:
One 98" (2.49 m) Piece of HE06 Header Extrusion
One 36" (914 mm) Piece of 1N06 Snap-In Filler
for Door Pocket
98" (2.49 m) of Vinyl for 1/4" (6 mm) Thick Glass
One Pack of Two Wall Mounting Brackets
Six Corners (Two Adjustable, Two Fixed 90 Degree,
and Two Fixed 135 Degree)
One 3 mm Allen Wrench
12 each 8 x 3/8" Pan Head Phillips Sheet Metal Screws
SPECIFICATIONS:
Material: 6063-T5 Extruded Aluminum
