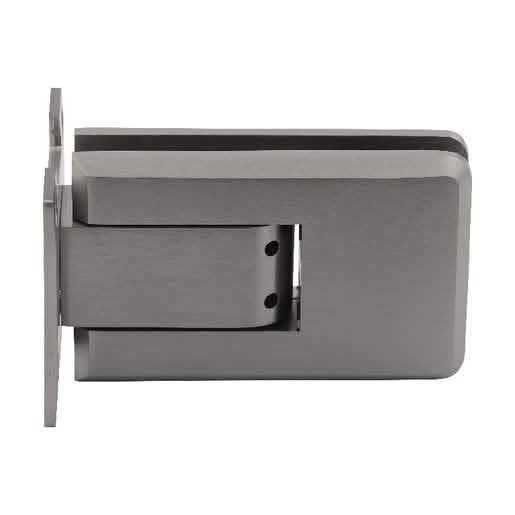

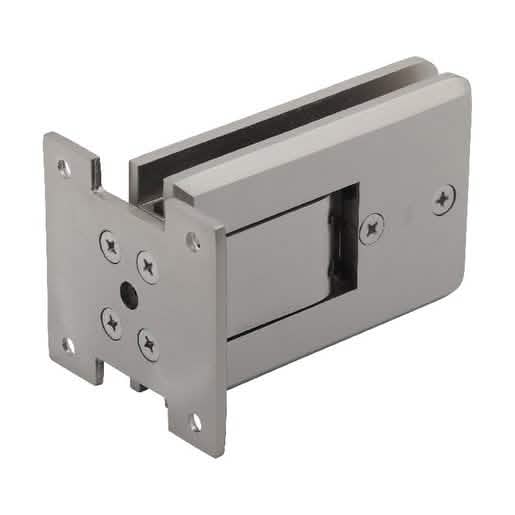

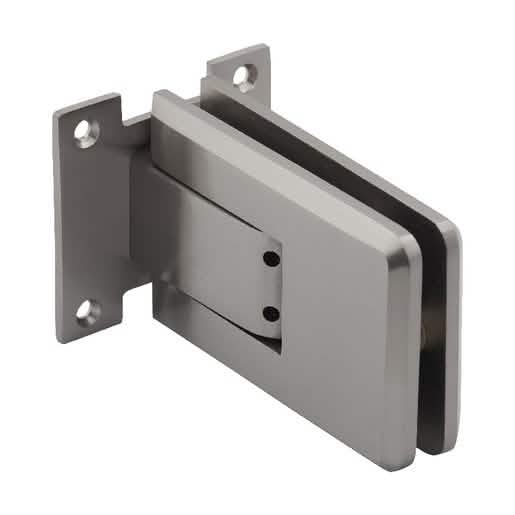

CRL Brushed Nickel Atlas Glass Door Hinge
CRL Brushed Nickel Atlas Glass Door Hinge
Regular price
$350.01 CAD
Regular price
Sale price
$350.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# ATL01BN
Shipping Weight: 6.645 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 6.645 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | Yes |
| Back | Plate Full |
| Edge | Profile Beveled |
| Finish/Color | Brushed Nickel |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Height 3-9/16 in. | (90 mm) |
| Material | Brass |
| Maximum Door Weight | 140 |
| Maximum Door Width 39 in. | (991 mm) |
| Mounting | Type Wall Mount |
| Self-Centering Yes | Atlas |
| Width 5 7/8 in. | (149 mm) |
Overview
The innovative CRL Atlas Series 'All-Glass' Door Hinge is designed for minimal hardware needs and offers a sleek, heavy-duty solution for creating doors or gates with tempered glass.
This self-centering hinge, with adjustable spring strength, ensures effortless operation without the need for additional closing mechanisms.
Ideal for large interior tempered glass doors and gates, the Atlas Hinge holds open at 90 degrees and allows for easy closed position adjustments, making it perfect for double door or inline panel configurations.
Constructed from solid brass with stainless steel components, these hinges are available in four architectural finishes and are suitable for environments with excess moisture.
Note that two hinges are the maximum recommended per door, and they are intended for residential or hotel shower use.
This self-centering hinge, with adjustable spring strength, ensures effortless operation without the need for additional closing mechanisms.
Ideal for large interior tempered glass doors and gates, the Atlas Hinge holds open at 90 degrees and allows for easy closed position adjustments, making it perfect for double door or inline panel configurations.
Constructed from solid brass with stainless steel components, these hinges are available in four architectural finishes and are suitable for environments with excess moisture.
Note that two hinges are the maximum recommended per door, and they are intended for residential or hotel shower use.
