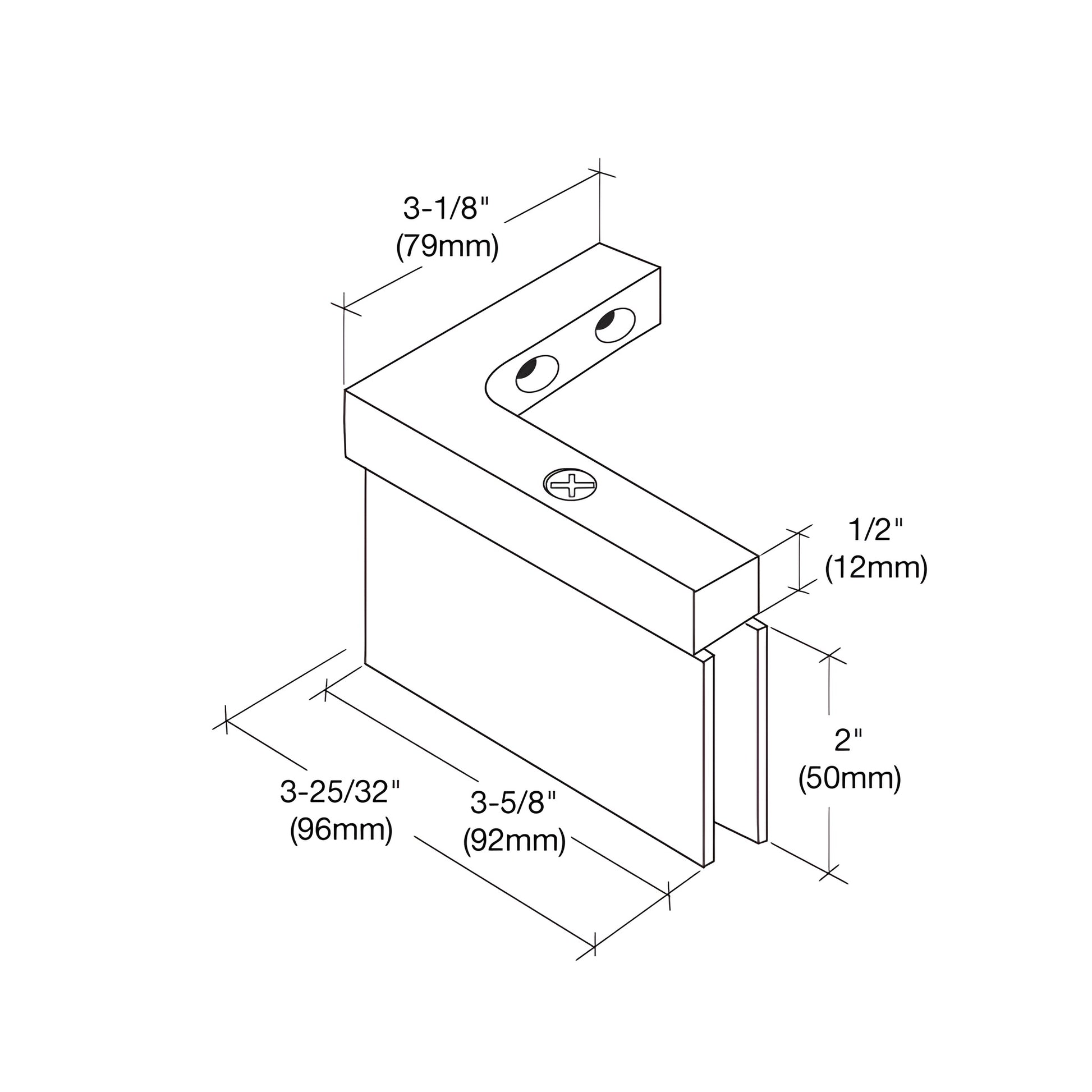

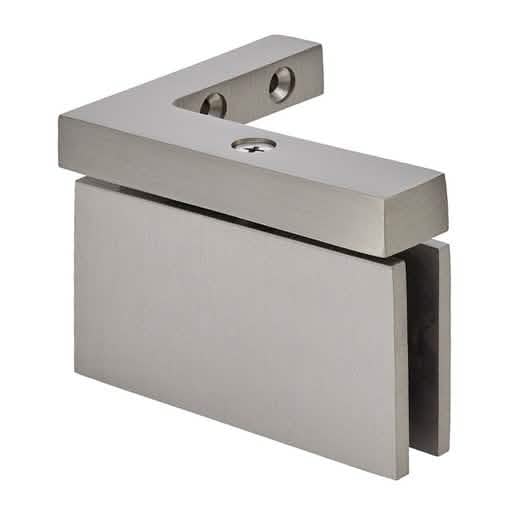

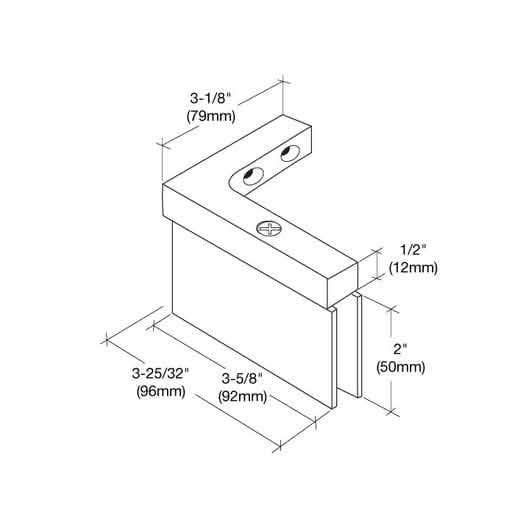

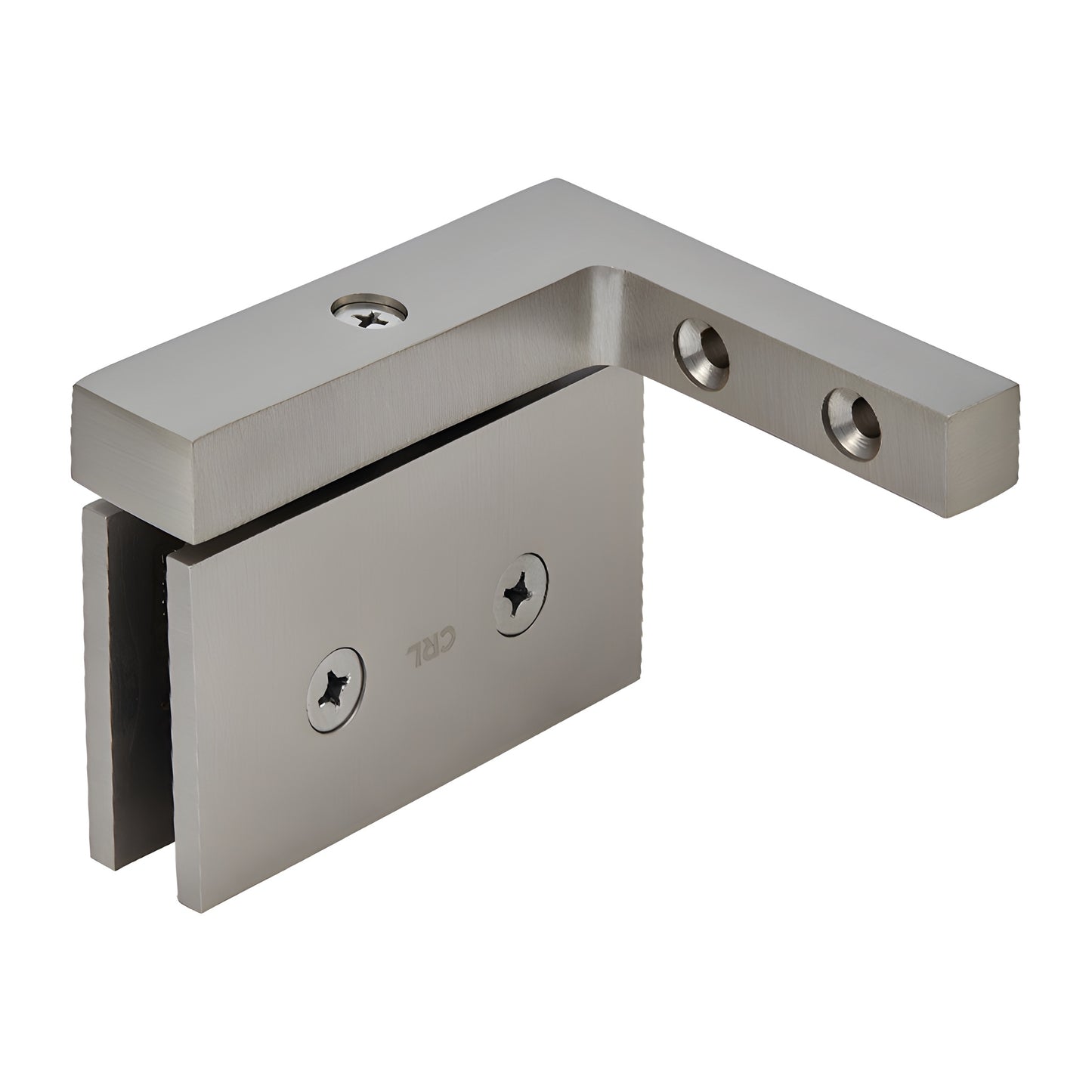

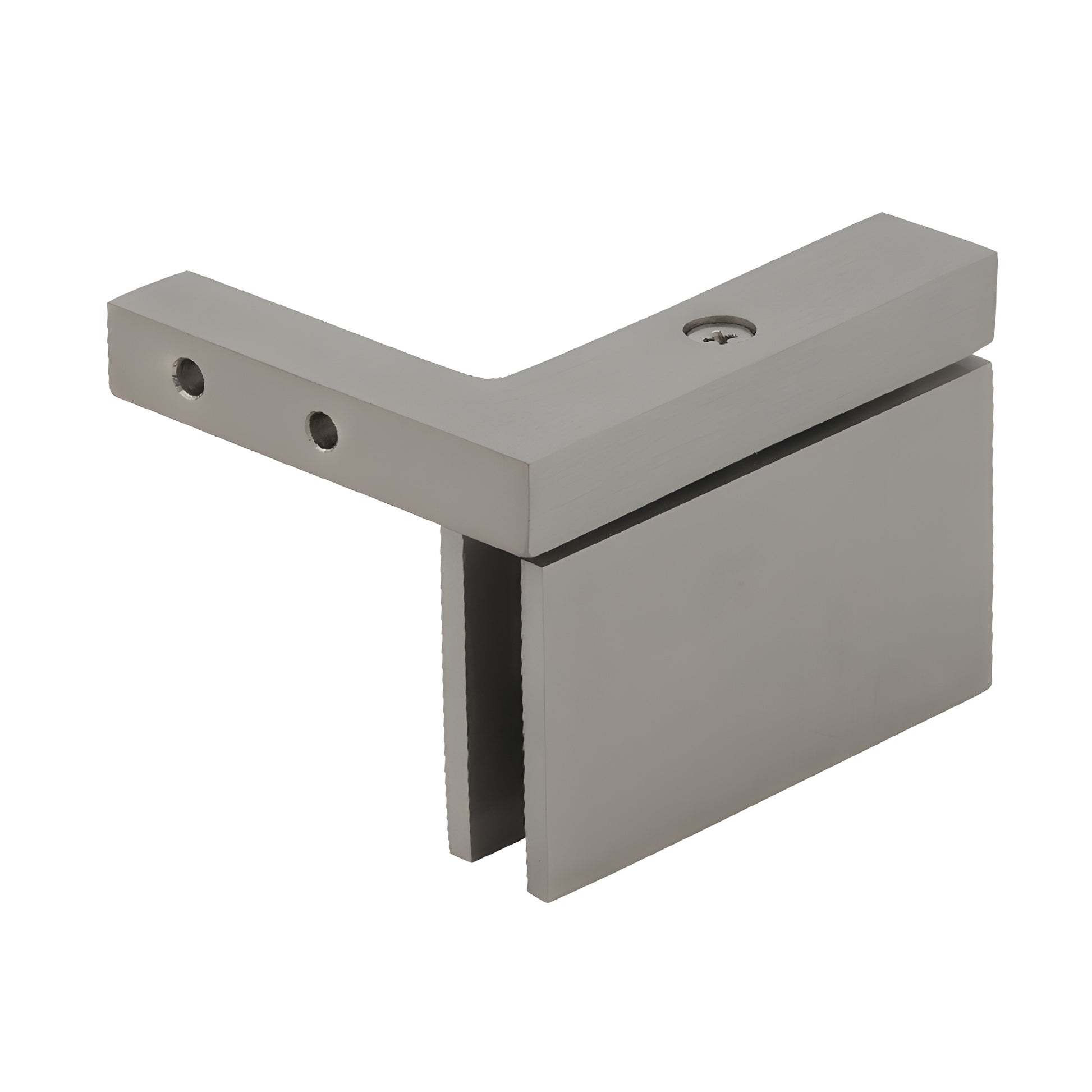

CRL Cardiff Series Brushed Nickel Left-Hand Shower Door Hinge

• Offset Bracket Wall Mount (Left hand mount when viewed from outside the shower)
• Available in several beautiful finishes
• 3 year warranty
• Use with monolithic tempered glass
• U.S. Patent 5,297,313
• SKU: CAR05LBN

CRL Cardiff Series Pivot Hinges are engineered for tempered safety glass 5/16" (8 mm) to 3/8" (10 mm) and expand application possibilities for frameless shower doors. Designed as top-and-bottom pivot hinges, they carry most of the door weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections—ideal for left-hand offset bracket wall mount shower installations and other custom shower configurations. These self-centering pivot hinges use four springs for maximum retention strength and offer full rotation swing for smooth operation. Optional 5º pre-set pivot pin sets are available separately to alter the closing position by 5º; they can be installed before or retrofitted after installation. The Cardiff Series is also adaptable to the Deluxe Header System for enclosures that do not extend to the ceiling.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) — sold as a set of two (top and bottom). Not included with hinge purchase.

Capacity: Using two hinges with 5/16" or 3/8" glass (8 or 10 mm), the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design exposes more glass and reduces required glass cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Product Warning:

CRL shower door hinges are intended for residential
