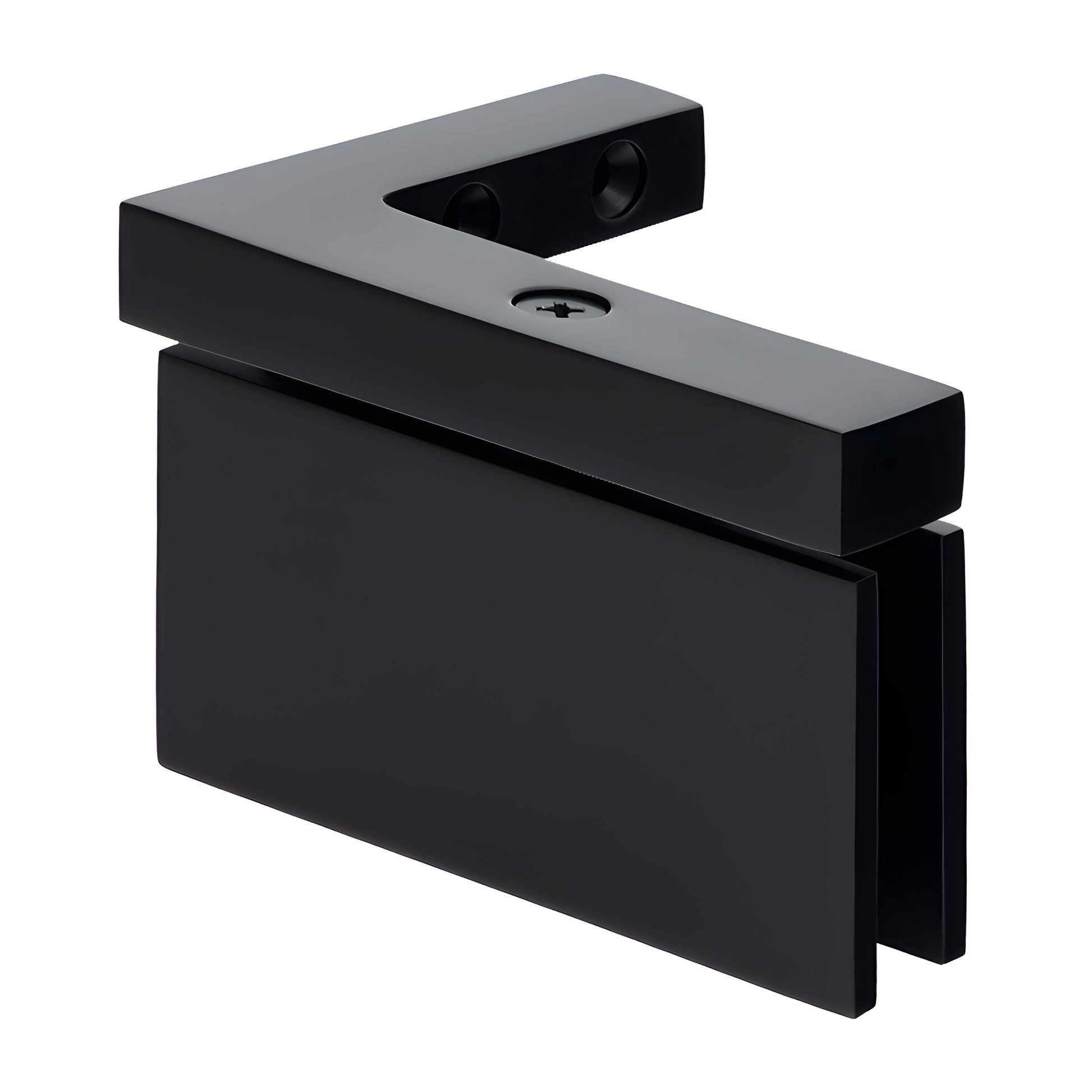

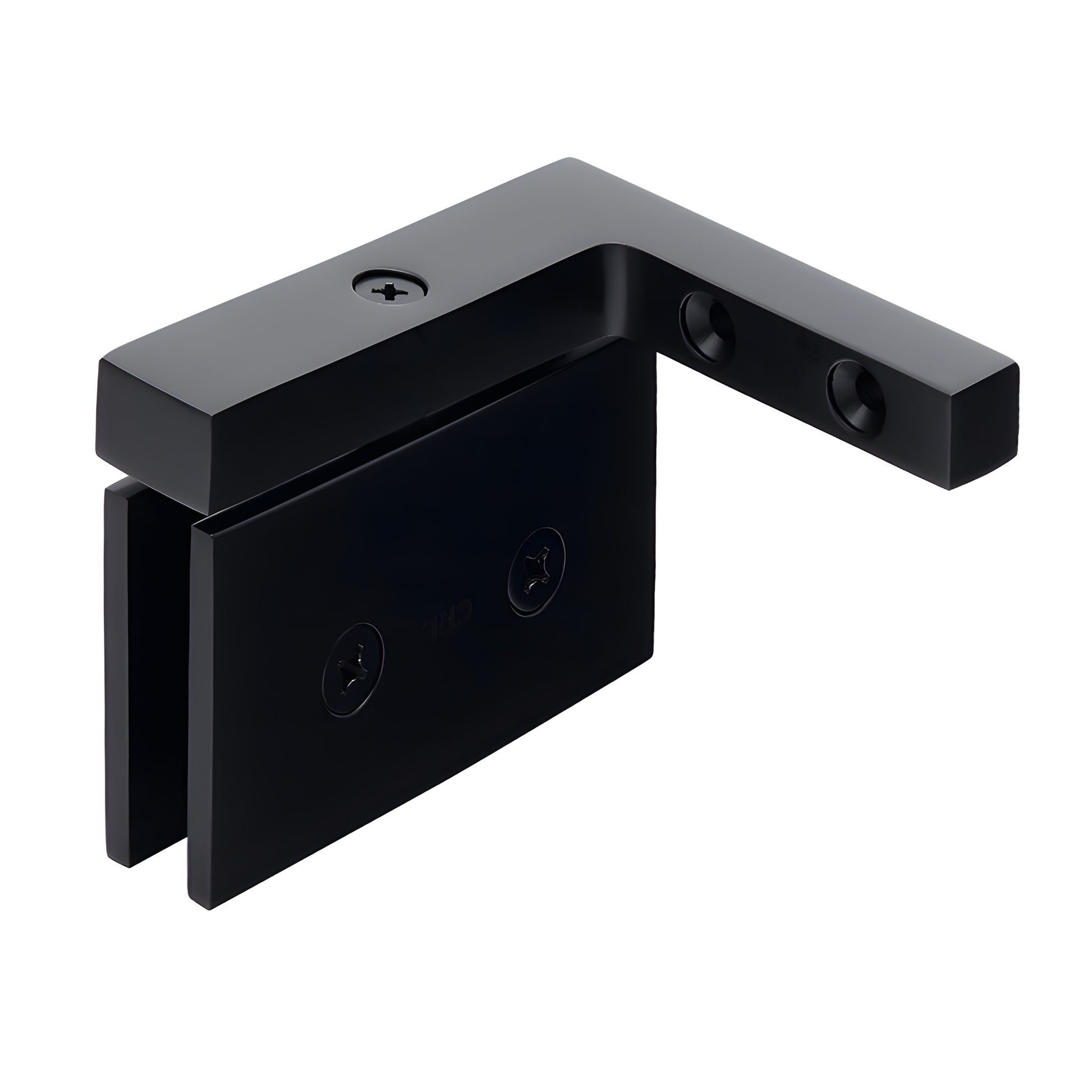

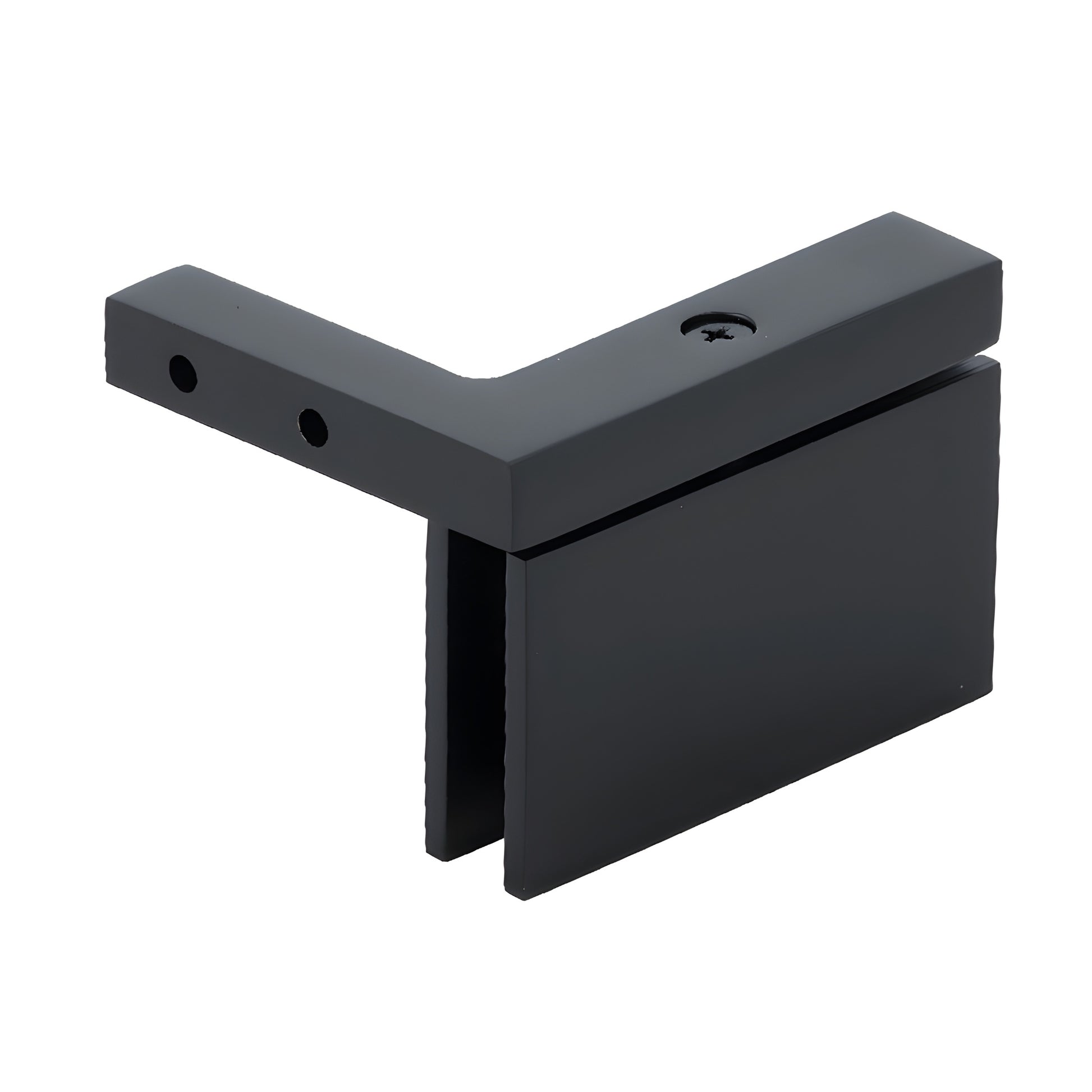

CRL Cardiff Series Matte Black Left-Hand Door Hinge

• Offset Bracket Wall Mount (Left hand mount when viewed from outside of shower)
• Available in several beautiful finishes
• 3 Year Warranty
• Use monolithic tempered glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand application options for frameless shower doors. Pivot-style hinges carry most of the door weight on the bottom and can be inset from the wall to allow clearance for towel bars and other projections. Cardiff hinges are self-centering with four springs for maximum retention strength and offer full rotation swing for smooth operation. Optional 5º pre-set pivot pin sets (sold separately) let you alter the closing position by 5º. The Cardiff Series is compatible with the Deluxe Header System for partial-height enclosures.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) — sold as a set of two (top and bottom). May be installed before or retrofitted after installation. Not included with hinge purchase.

Performance with two hinges: With 5/16" or 3/8" glass (8 or 10 mm), two hinges will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces the number of cut-outs required versus standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions for CRL hinges may differ from other brands.
