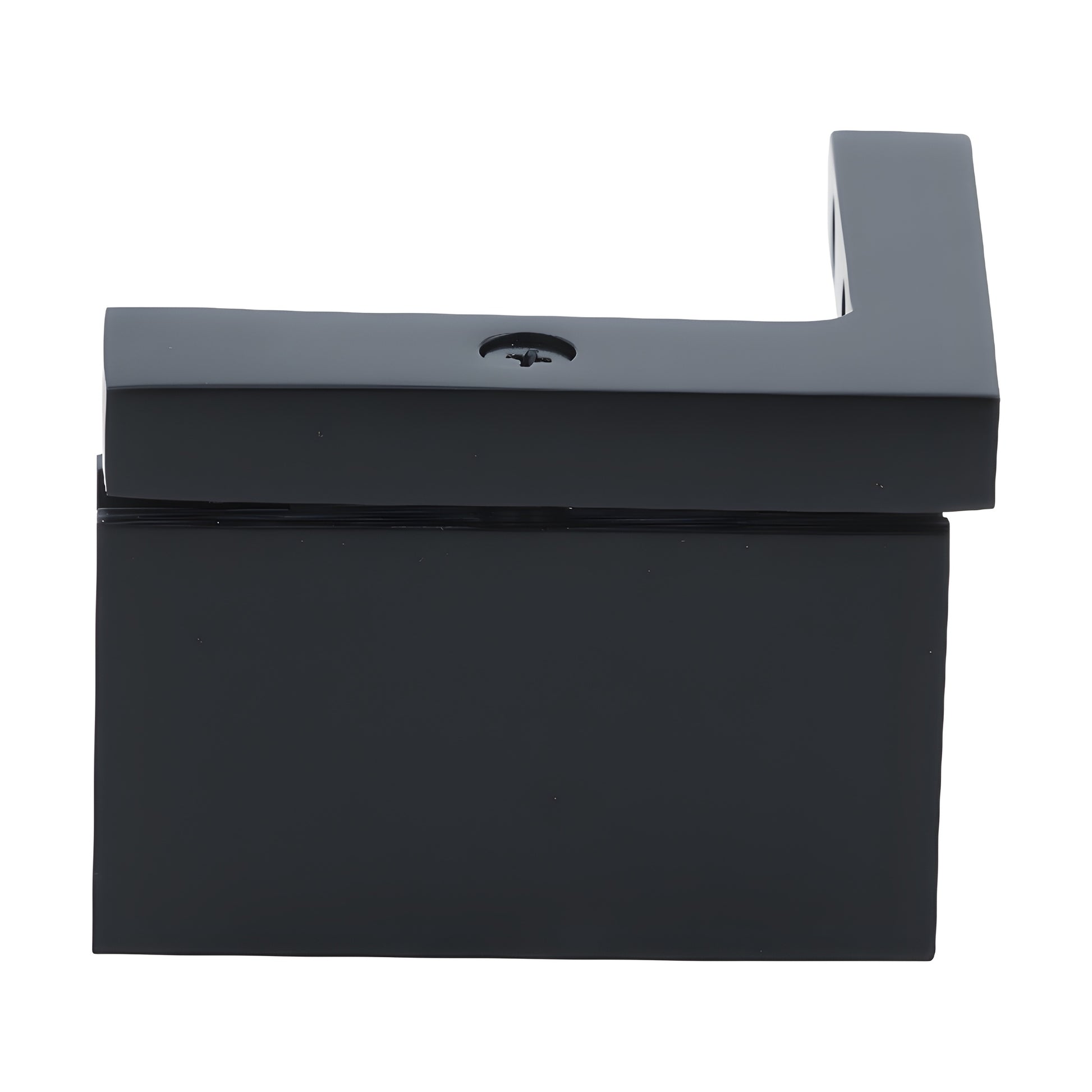

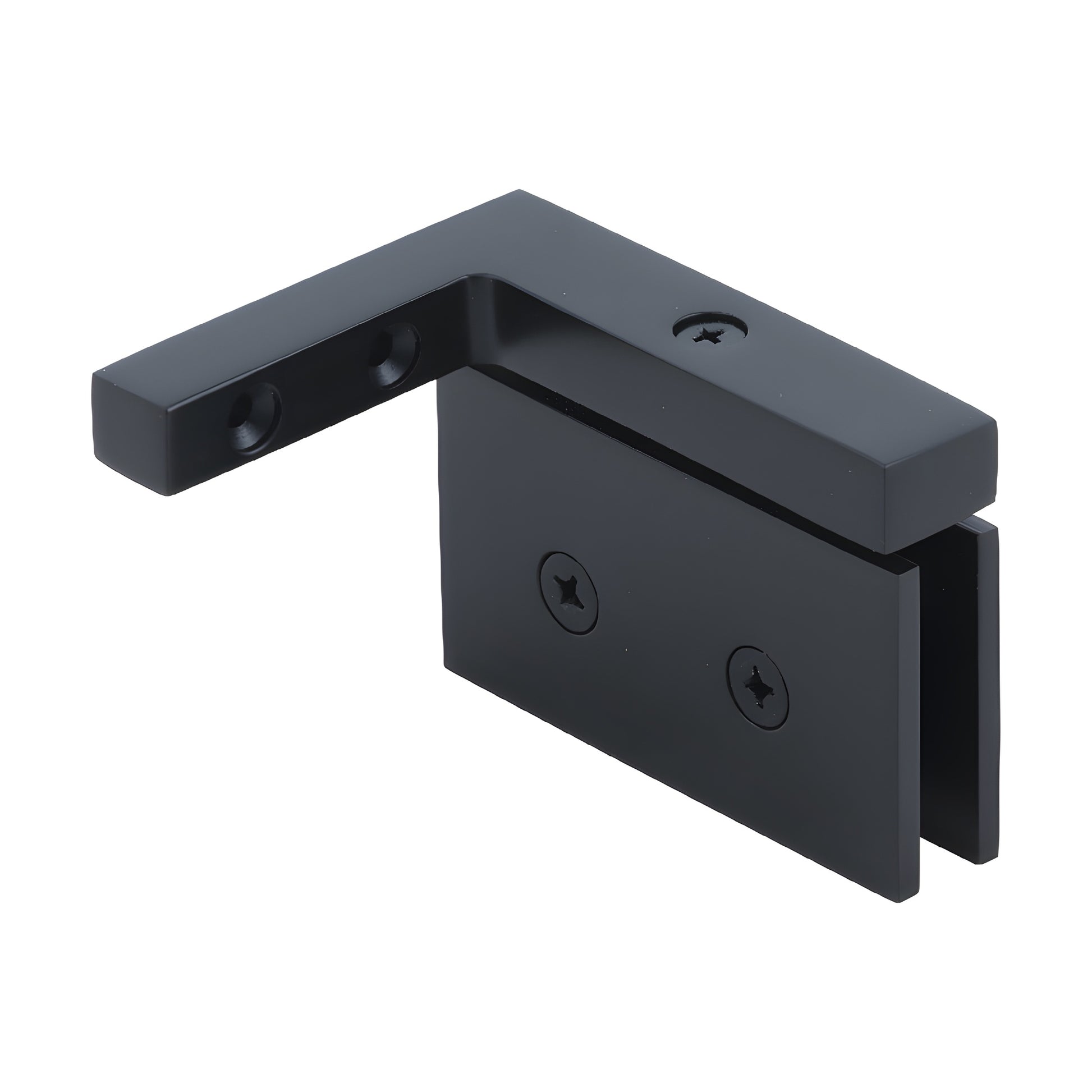

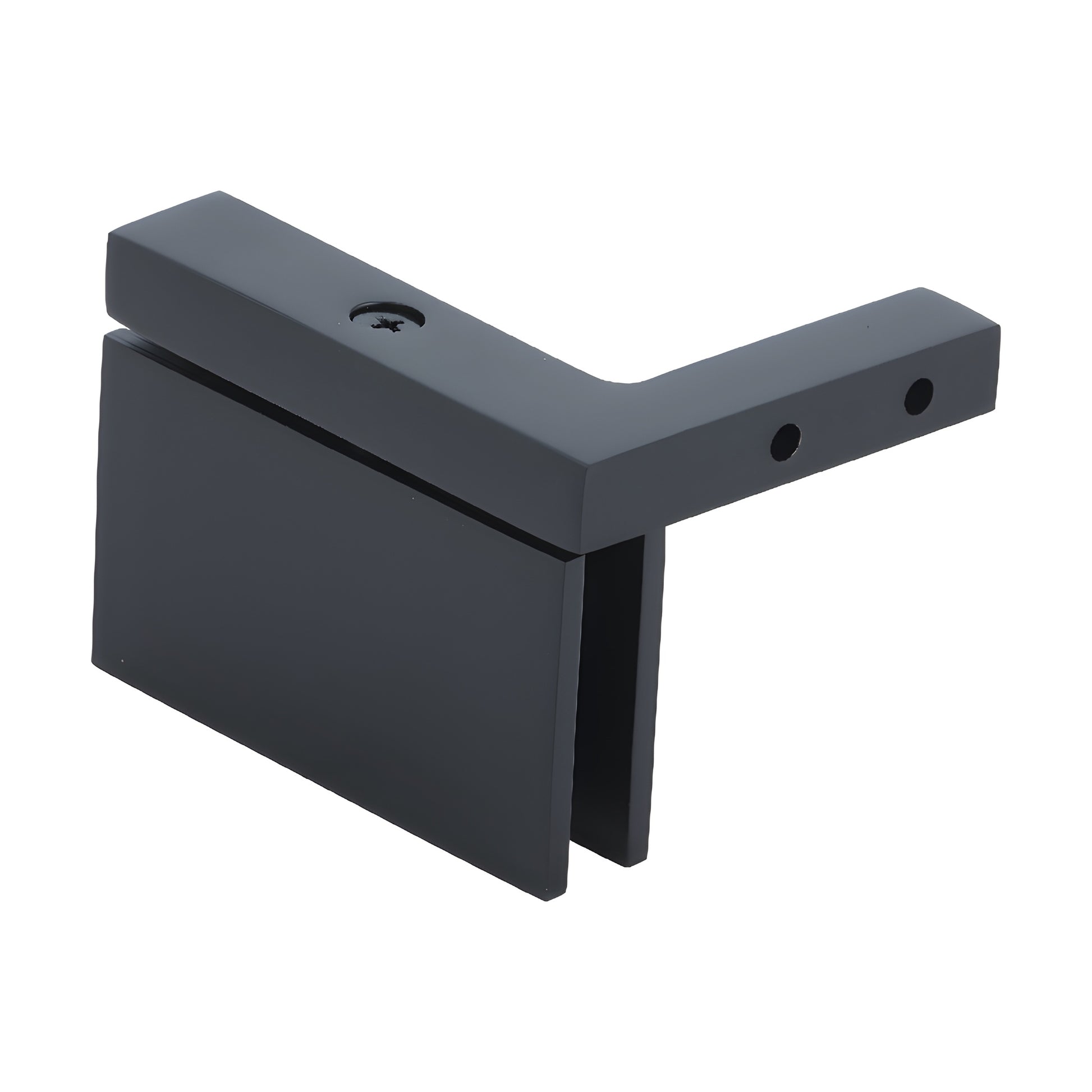

CRL Cardiff Series Matte Black Right-Hand Door Mount Hinge

• Offset Bracket Wall Mount (Right-hand mount when viewed from outside of shower)
• Available in several beautiful finishes
• 3 Year Warranty
• Use with monolithic tempered glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges (SKU: CAR05RMBL) are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand application possibilities for frameless and semi-frameless shower doors. These pivot hinges transfer most of the door weight to the bottom pivot, allow inset mounting from the wall for towel-bar clearance, and feature a top-and-bottom mount design that exposes more glass for a cleaner, modern look—ideal for shower door hinge replacement or new frameless glass shower installations. Key differentiators

• Self-centering design with four springs for maximum retention strength
• Solid brass construction for corrosion resistance and long service life
• Optional 5° pre-set pivot pin sets (sold separately) to alter closing position
• Reduces number of glass cut-outs compared to standard side-mount glass-to-glass hinges

Performance

With two hinges on 5/16" or 3/8" glass, each hinge assembly will support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm). Hinge swings: full rotation. Closing type: self-centering when within 15° of closed position.

Specifications

Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Construction: Solid brass
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

NOTE: Optional 5° Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) is sold as a set of two (top and bottom). Pivot pins may be inserted before or retrofitted after installation and are not included with hinge purchase. Product Warning:

Designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.

For a durable, low-profile solution for frameless glass shower
