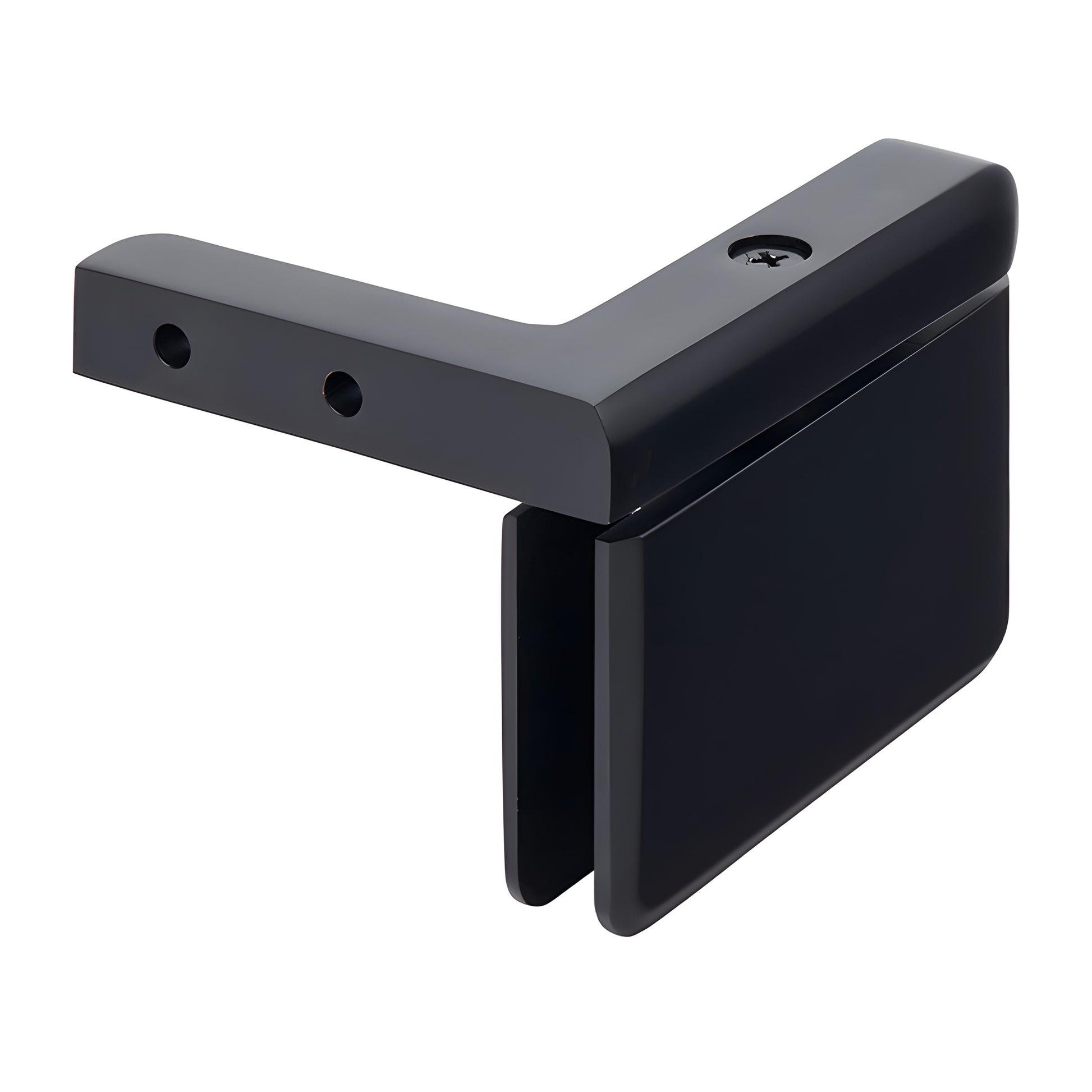

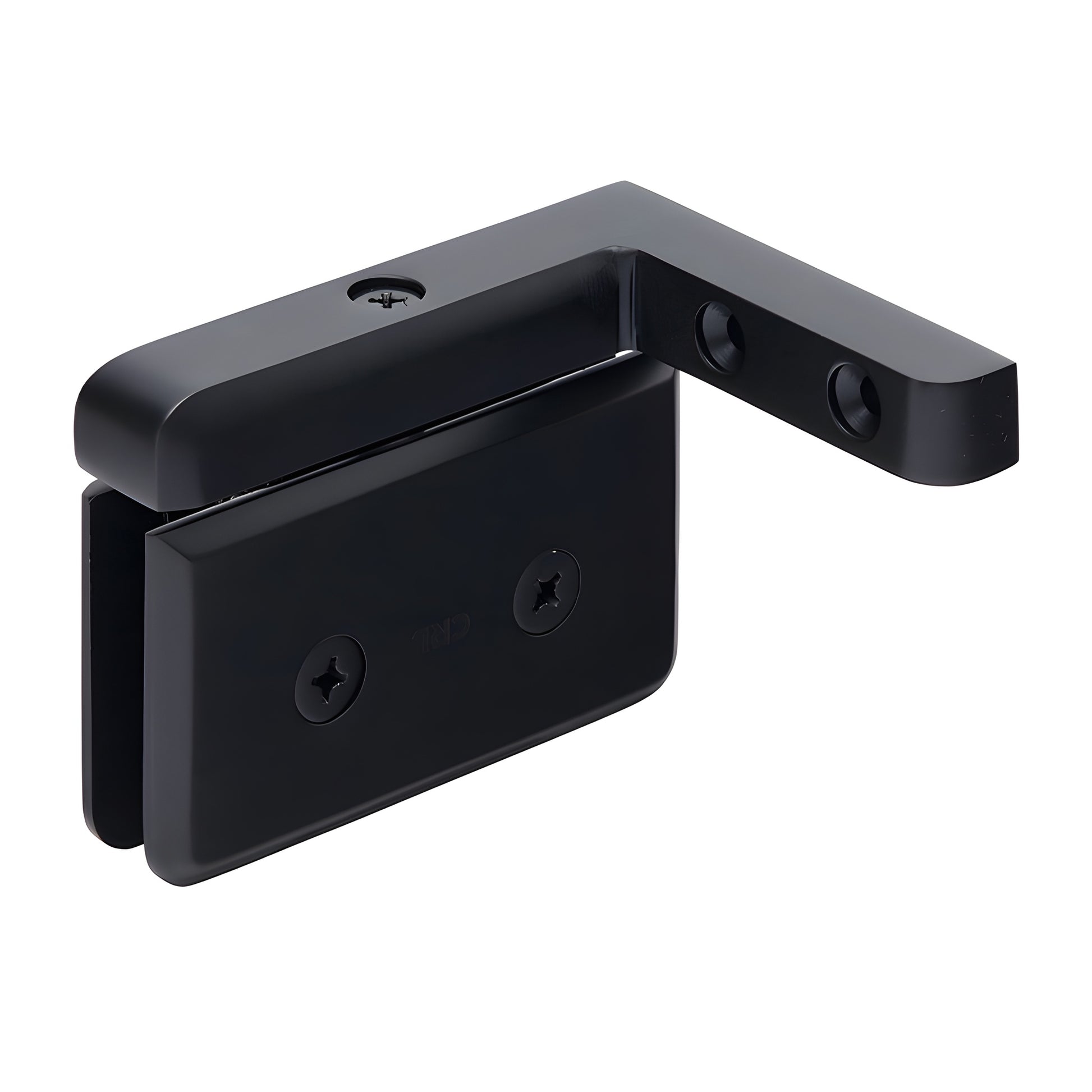

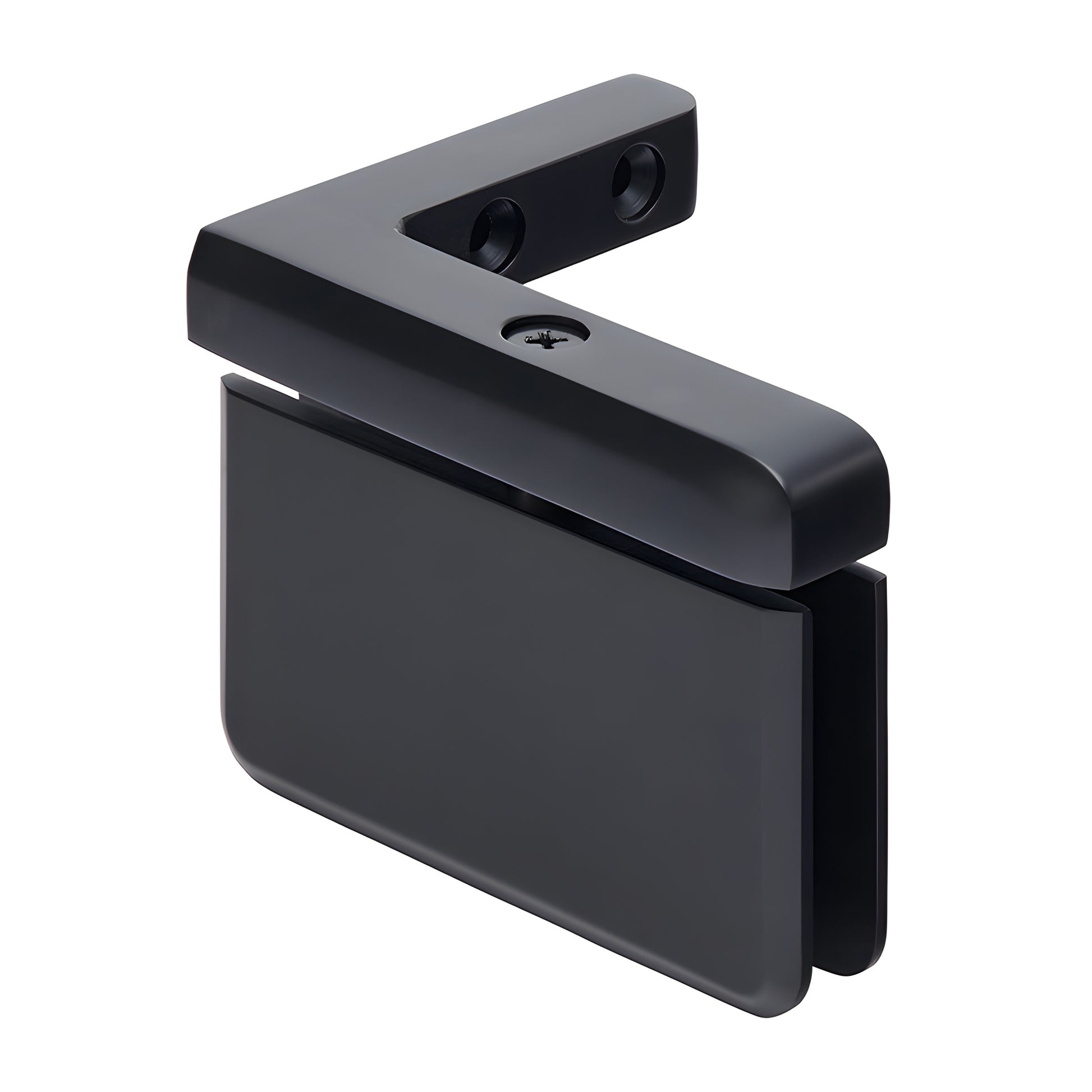

CRL Prima 05 Left-Hand Matte Black Offset Door Hinge

• Offset Bracket Wall Mount (Left hand mount when viewed from outside shower)
• Self-centering hinge with optional 5° pivot pin set
• Available in multiple decorative finishes
• For monolithic tempered safety glass (8–10 mm)
• 3‑year warranty
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges — SKU: PPH05LMBL are precision pivot hinges engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass. Designed for shower doors and frameless enclosures, Prima pivot hinges carry most of the door weight at the bottom and can be inset from the wall for clearance around towel bars and other projections—an ideal solution for offset bracket wall mount left hand shower hinge installations. The self-centering design uses four springs for strong retention and reliable closing performance. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets may be ordered separately or retrofitted after installation. Pre-set 5° hinge models are also available from stock.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Adjust door closing position by 5°. Sold as a top and bottom set. Not included with hinge purchase; may be installed before or after hinge installation.

Capacity (two hinges): For 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design maximizes visible glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. PPH01 mounts floor-and-ceiling or floor-and-header. PPH06 is compatible only with the EZ-Adjust Header System (includes adaptor).
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: (PPH135 also requires two holes; PPH07 requires cut-out for hinge plus hole for clamp.)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes available on request—contact the CRL Technical Sales Department.
