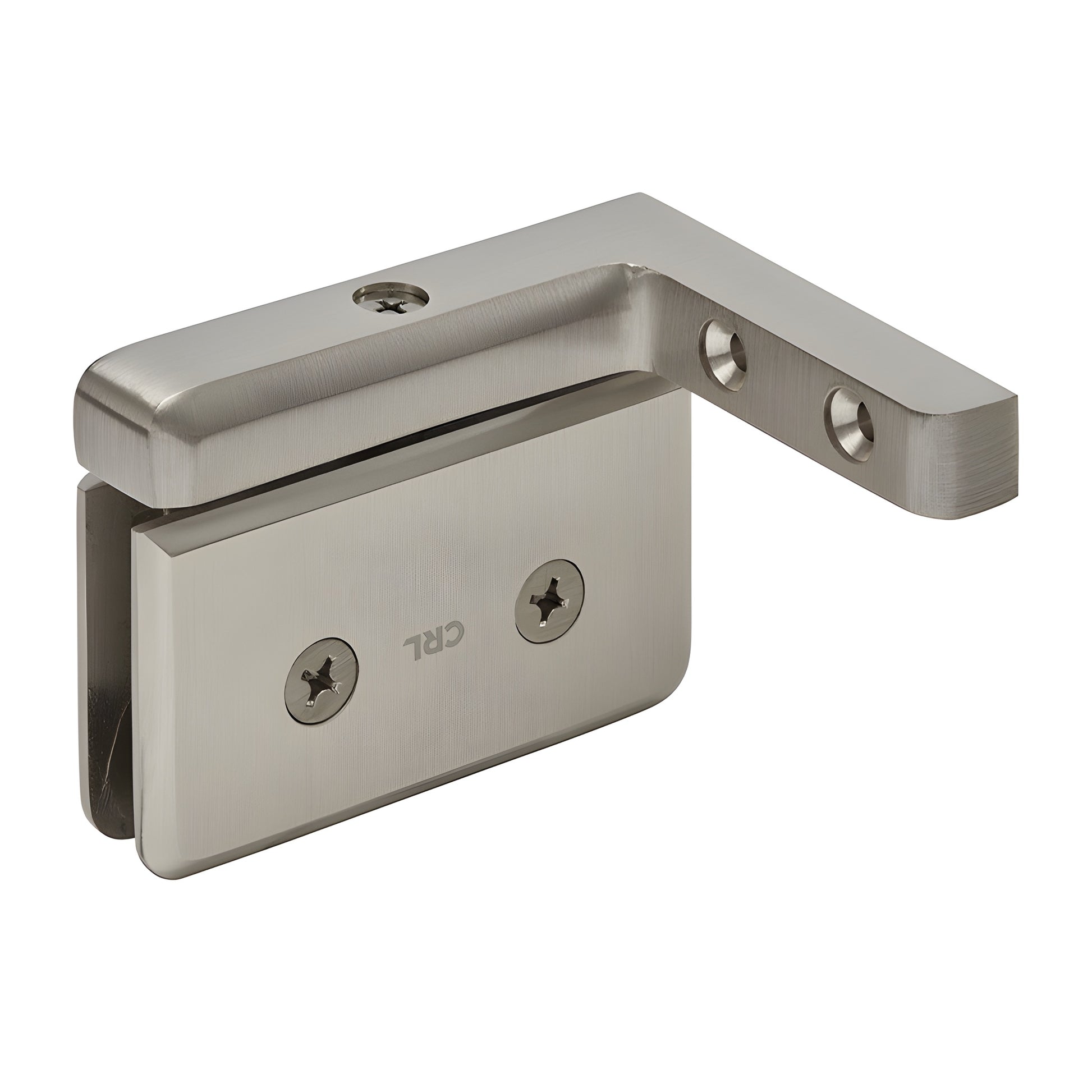

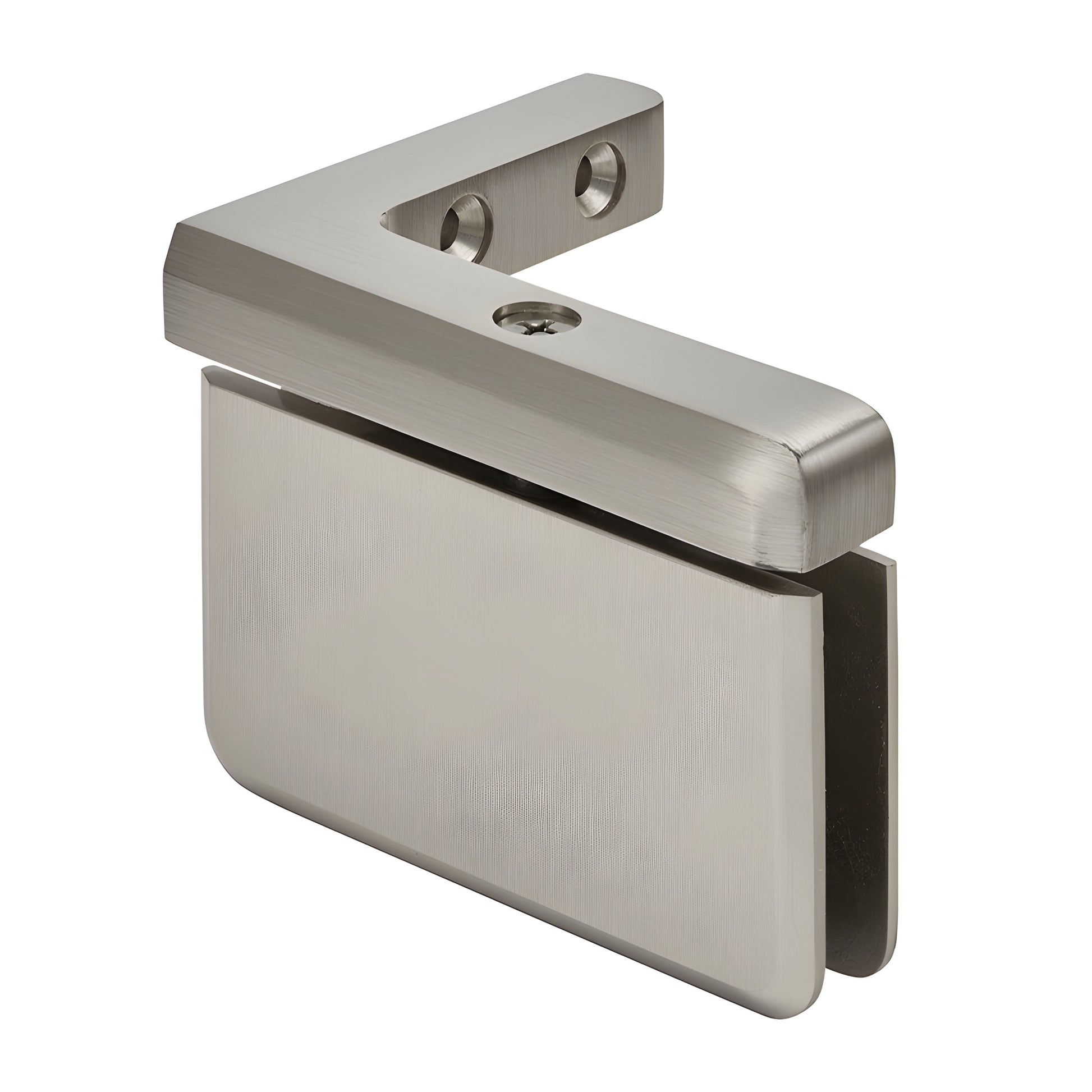

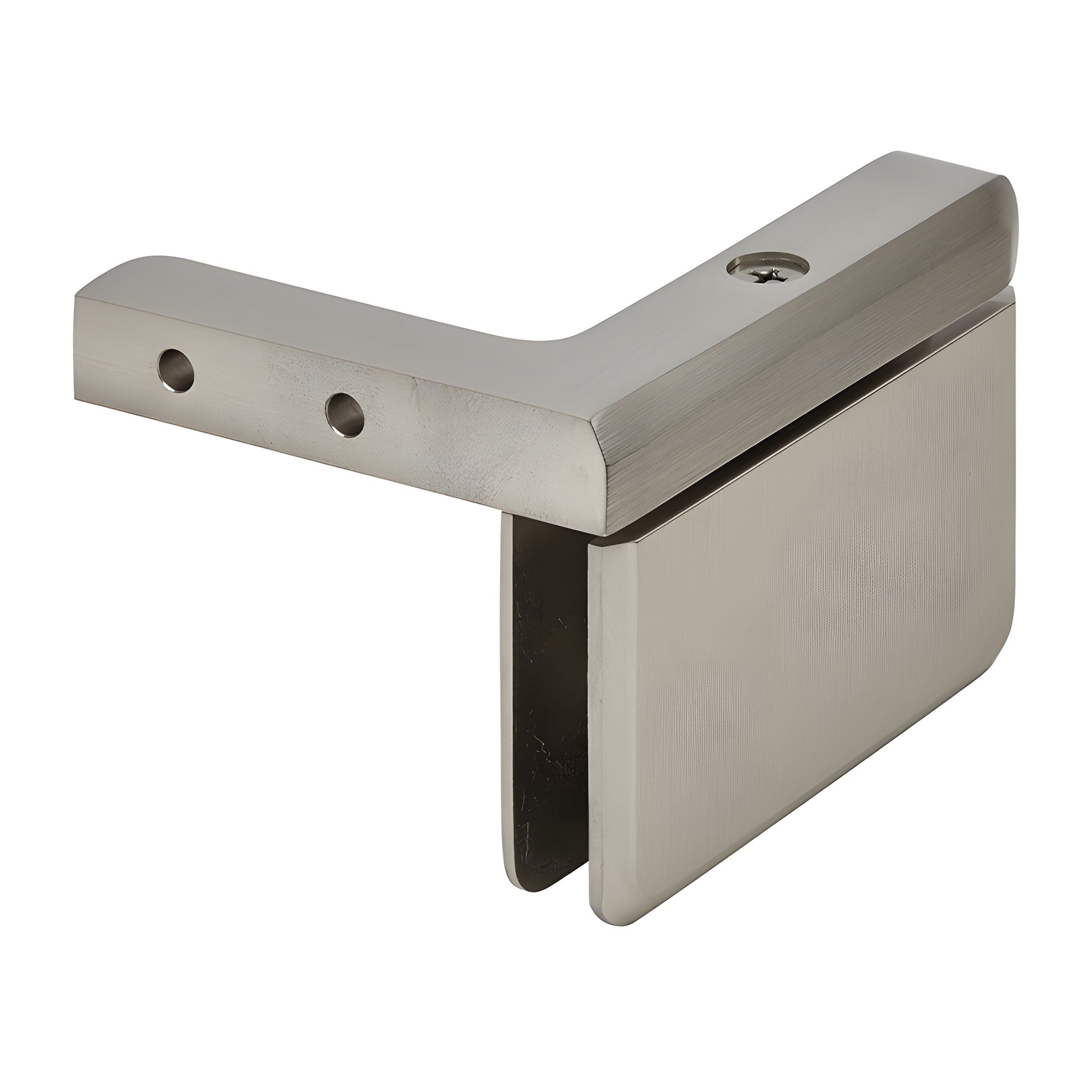

CRL Prima 05 Left-Hand Brushed Nickel Offset Mount Shower Hinge

• Offset bracket wall mount — left-hand mount when viewed from outside shower
• Self-centering operation with optional 5° pivot pin set
• Available in multiple decorative finishes; custom finishes on request
• For monolithic tempered safety glass (5/16"–3/8" / 8–10 mm)
• 3-year warranty; U.S. Patent No. 5,297,313

CRL Prima Series Pivot Hinges fit 5/16" to 3/8" (8–10 mm) tempered safety glass and expand installation options for frameless glass shower doors. Pivot hinges carry most of the door weight at the bottom and can be inset from the wall to clear towel bars and projections. Prima hinges are self-centering with four internal springs for strong retention. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets are available separately; pre-set 5° hinge models are stocked.

Some models adapt to CRL header systems: PPH01 adapts to the Deluxe Header System for partial-height enclosures; PPH06 is compatible with the EZ-Adjust Header System (includes adaptor).

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Alters door closing position by 5°. Pins install before or after hinge installation. Sold as a top-and-bottom set; not included with hinge purchase.

Using two hinges: With 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lb (45 kg) and a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) – 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 model also requires two holes; PPH07 requires hinge cut-out and clamp hole

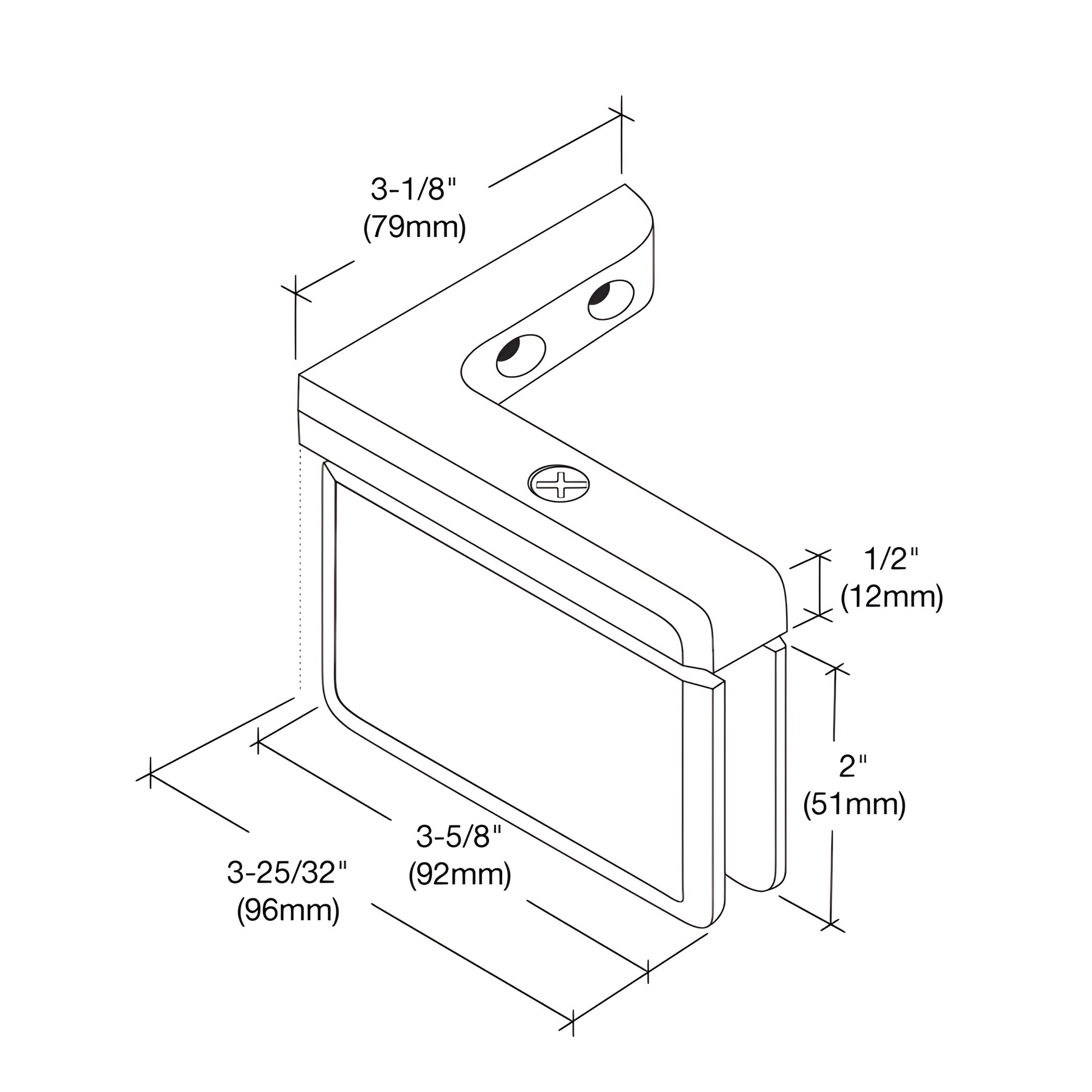

Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes are available—contact the CRL Technical Sales Department for finish options and lead times.
