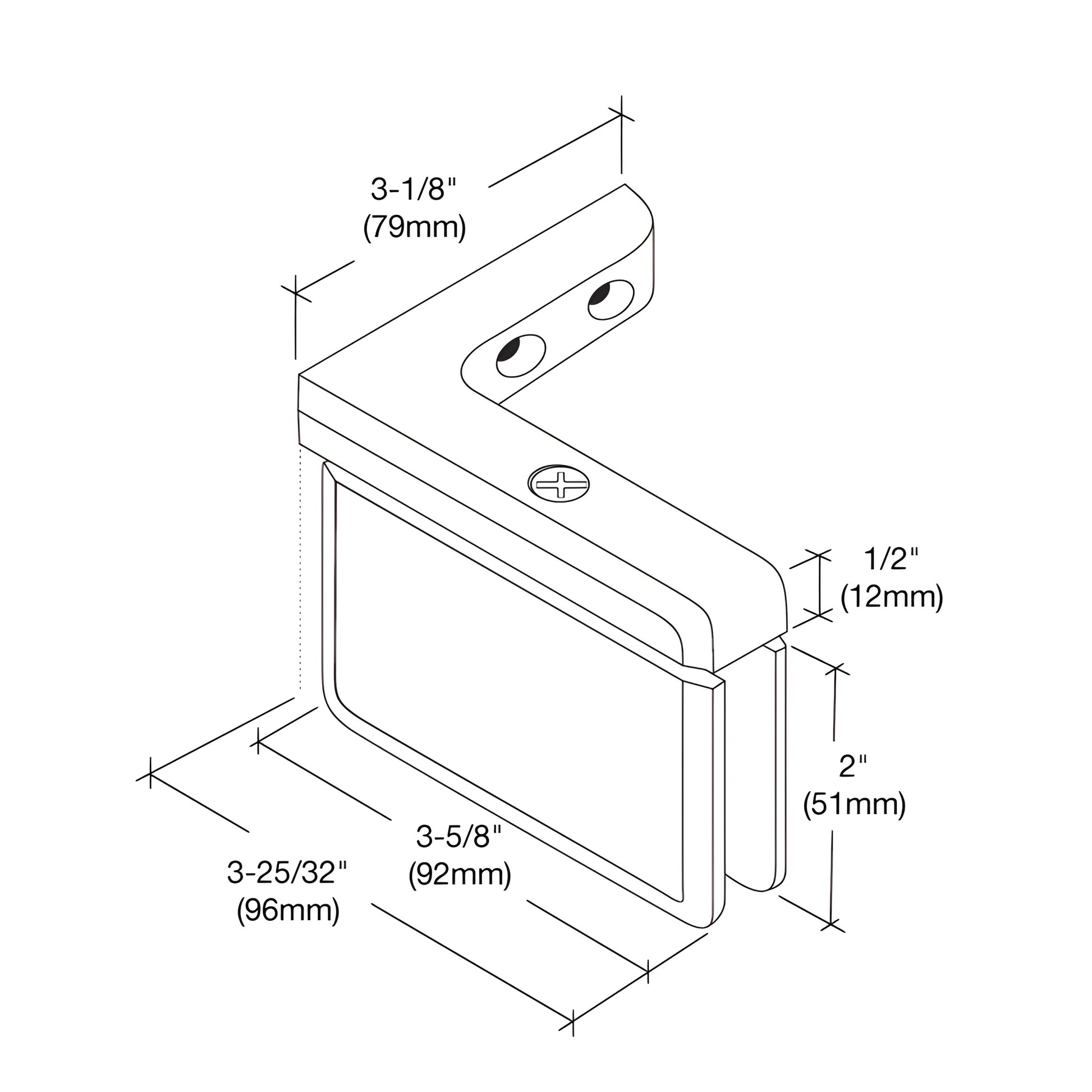

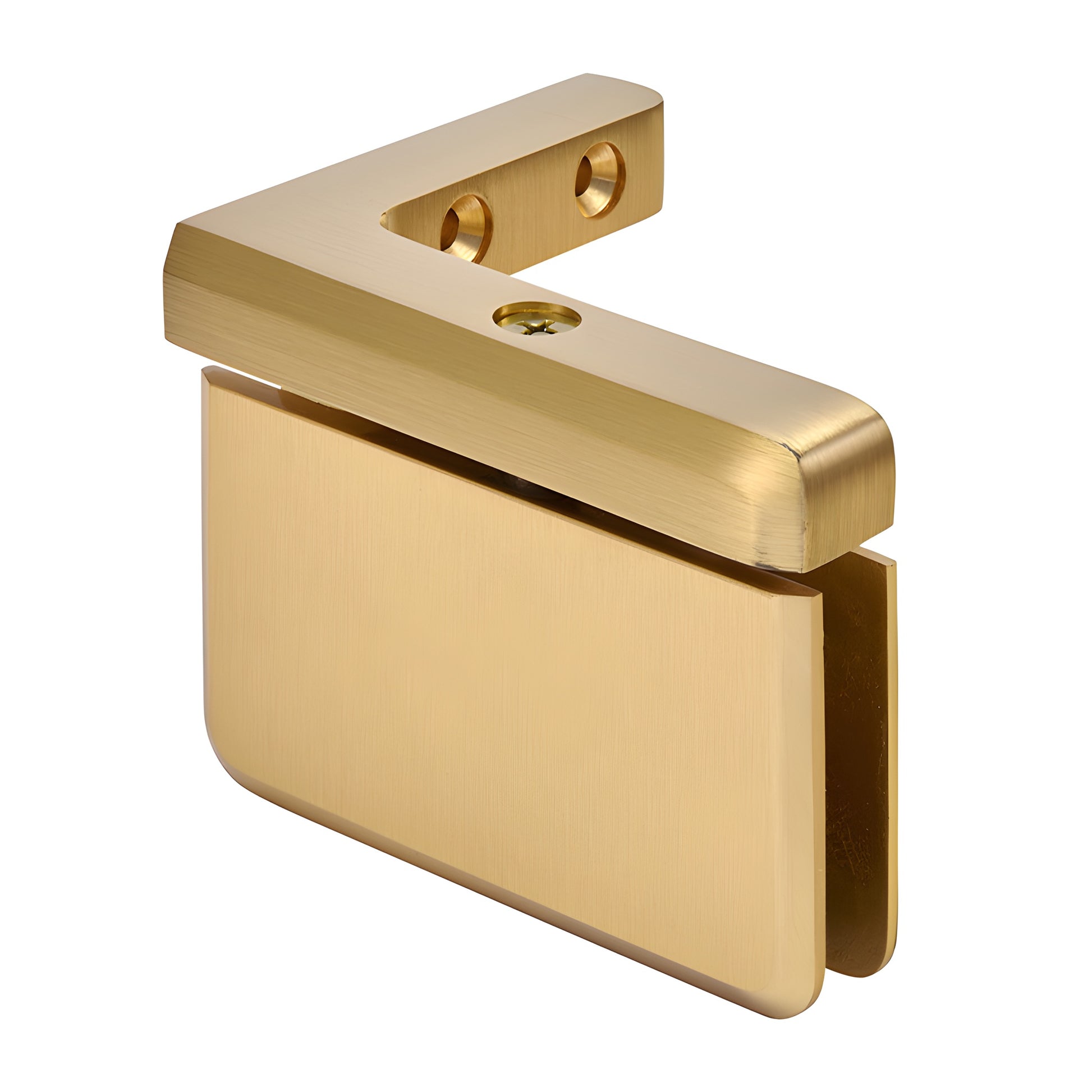

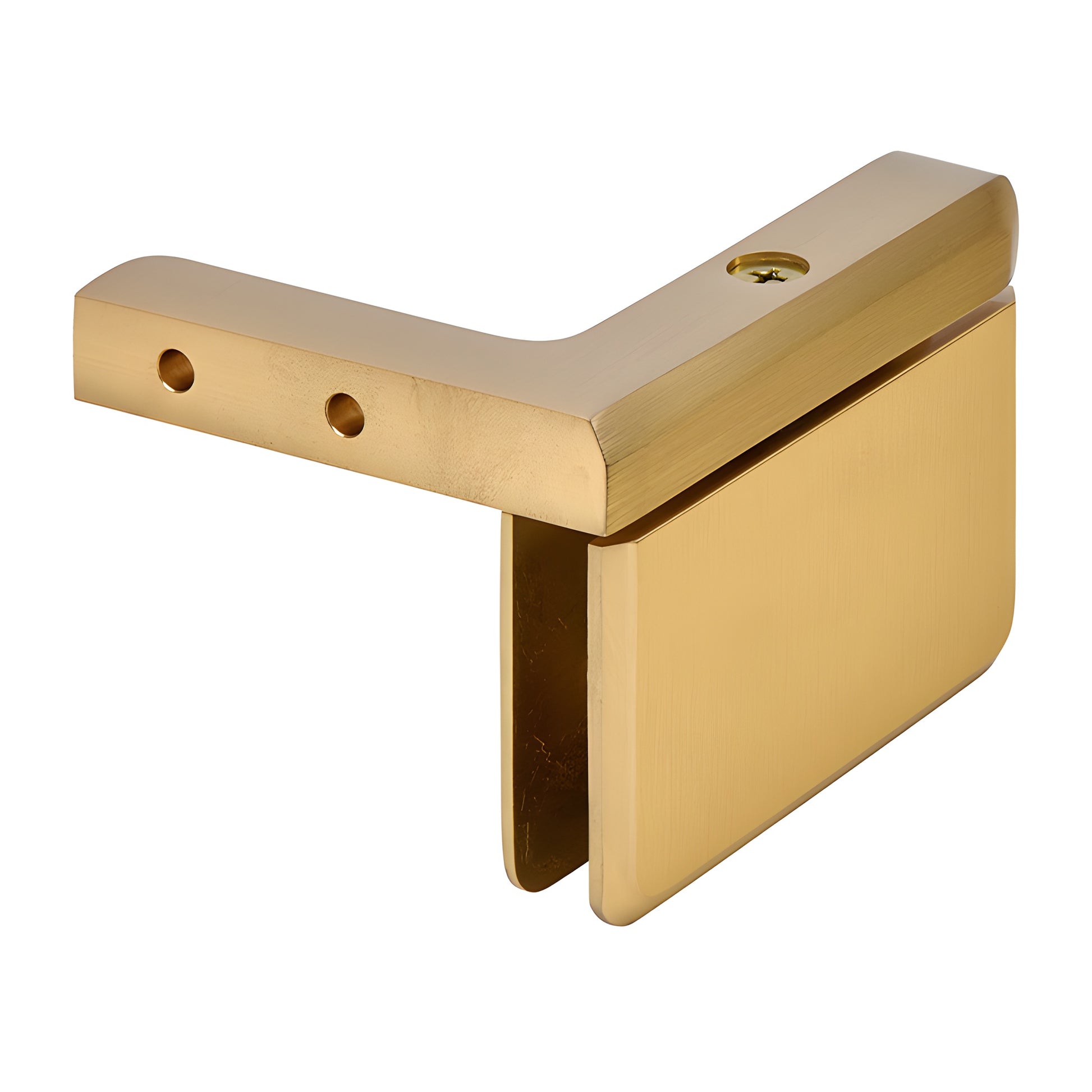

CRL Prima 05 Satin Brass Left-Hand Offset Door Hinge

• Offset Bracket Wall Mount (Left hand mount when viewed from outside of shower)
• Self-centering with optional 5° pivot pin set
• Available in several durable finishes
• Designed for monolithic tempered glass shower doors
• 3 year warranty
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH05LSB) are precision shower door pivot hinges for 5/16" to 3/8" (8–10 mm) tempered safety glass. These solid brass hinges are designed to carry most of the door weight at the bottom, allowing inset installation for clearance around towel bars and other projections. Prima Series hinges are self-centering with four springs for strong retention and full rotation hinge swing. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets are available to alter door closing position by 5°; they can be installed before or retrofitted after hinge installation. Pre-set 5° hinge models are also stocked.

The PPH01 model adapts to the Deluxe Header System for partial-height enclosures; PPH06 is compatible only with the EZ-Adjust Header System (includes adaptor).

Optional 5° Pivot Pin Set (for Prima, Cardiff, Rondo, and Shell Series): Sold as a top-and-bottom set. Not included with hinge purchase. Use to change the closing position by 5° for shower door pivot adjustments.

Capacity (two hinges): With 5/16"–3/8" glass (8–10 mm), two hinges support up to 100 lbs. (45 kg) and a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Notes: PPH135 requires two holes; PPH07 requires cut-out for hinge plus hole for clamp.
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patented (U.S. Patent No. 5,297,313)

Custom finishes available on request — contact the CRL Technical Sales Department for custom shower hinge finishes and lead times.

Product Warning:

CRL Shower Door Hinges are intended for residential and hotel shower applications. For alternate uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with
