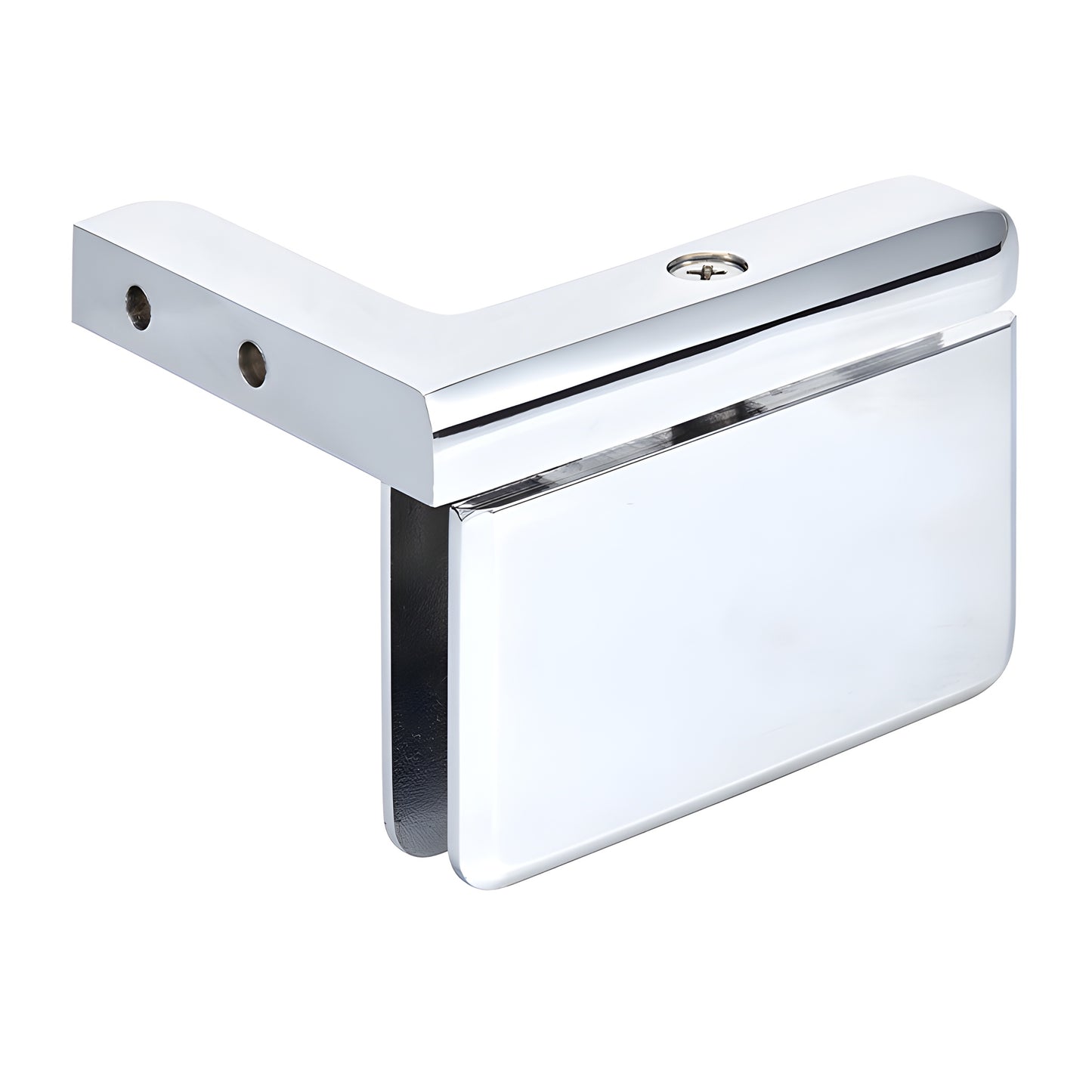

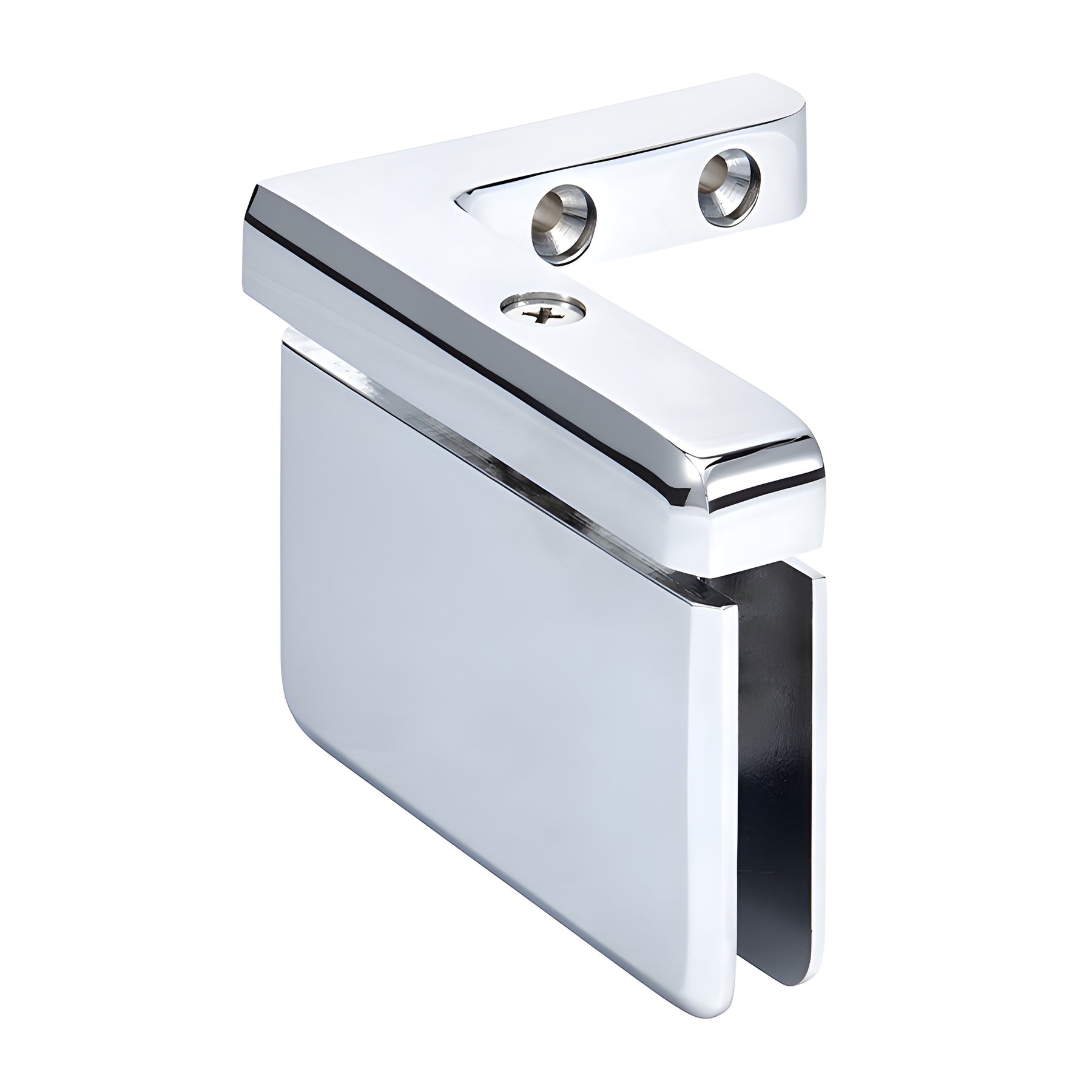

CRL Prima 05 Left-Hand Polished Chrome Offset Shower Door Hinge

• Offset bracket wall mount — Left hand mount when viewed from outside of shower
• Self-centering pivot hinge with optional 5 degree pivot pin set
• Available in multiple decorative finishes; custom finishes available on request
• Designed for monolithic tempered safety glass (5/16" to 3/8" / 8–10 mm)
• 3 Year Warranty
• U.S. Patent 5,297,313 — patented Prima Series design

CRL Prima Series Pivot Hinges (SKU: PPH05LCH) are engineered for left-hand offset bracket wall mounts on 5/16" to 3/8" (8–10 mm) tempered safety glass. These solid brass, top-and-bottom mount pivot hinges are ideal for glass shower doors requiring inset clearance for towel bars and other wall projections. Prima hinges carry most of the door weight at the bottom, reduce the number of glass cut-outs compared to standard side-mount glass-to-glass hinges, and let more glass remain visible for a cleaner frameless look.

Prima Series features four internal springs for maximum retention strength and a self-centering closing action within 15 degrees of the closed position. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets (sold separately) let you alter the door closing position by 5° and can be installed before or retrofitted after installation. Pre-set 5° hinge models are available from stock.

Performance: Using two hinges on 5/16"–3/8" (8–10 mm) glass, each hinge set will support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and bottom mount design maximizes visible glass and reduces required cut-outs. PPH01 can be mounted floor-to-ceiling or floor-to-header. PPH06 is compatible only with the EZ-Adjust Header System (includes adaptor).
Construction: Solid Brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: Varies by model (PPH135 also requires two holes; PPH07 requires cut-out for hinge plus hole for clamp)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No.
