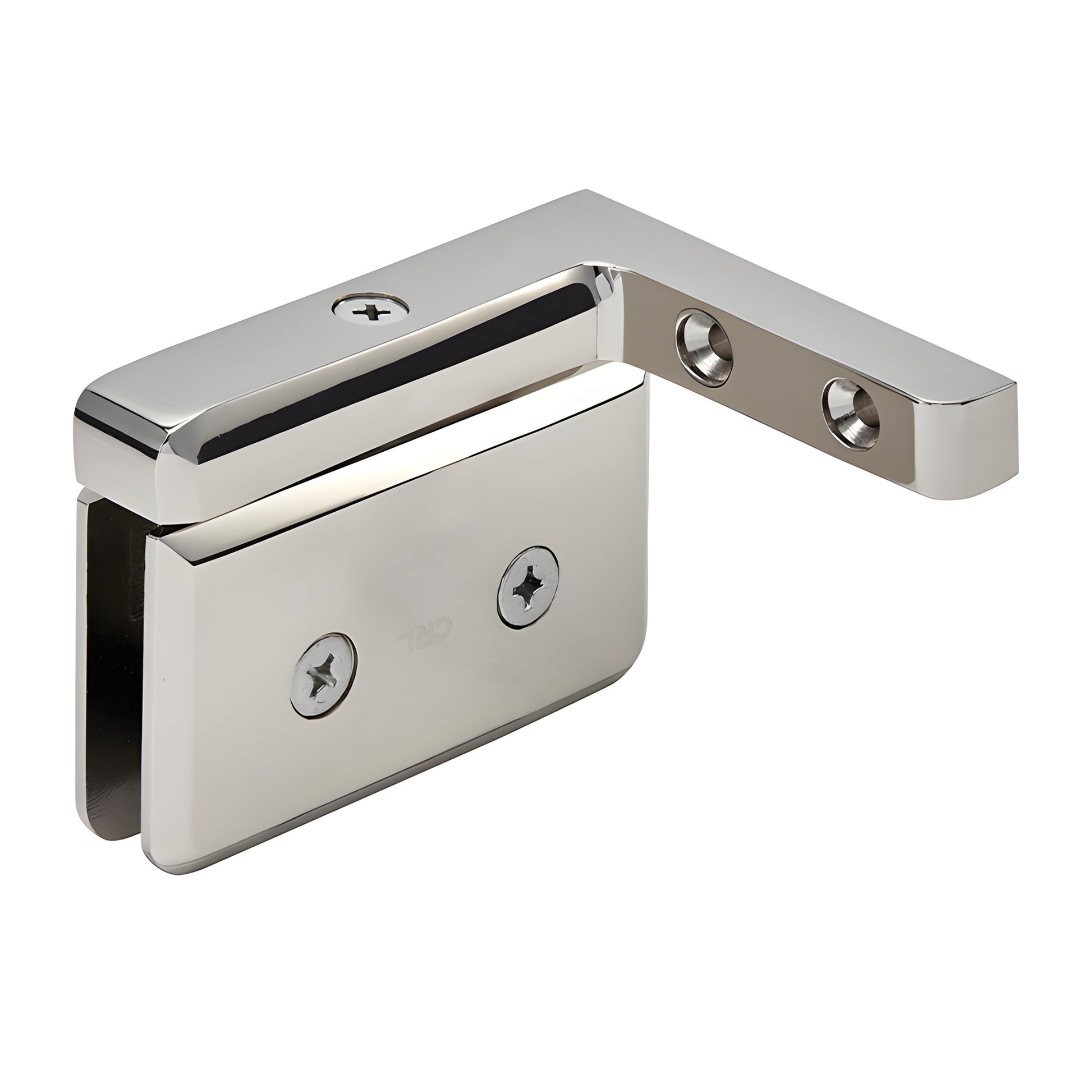

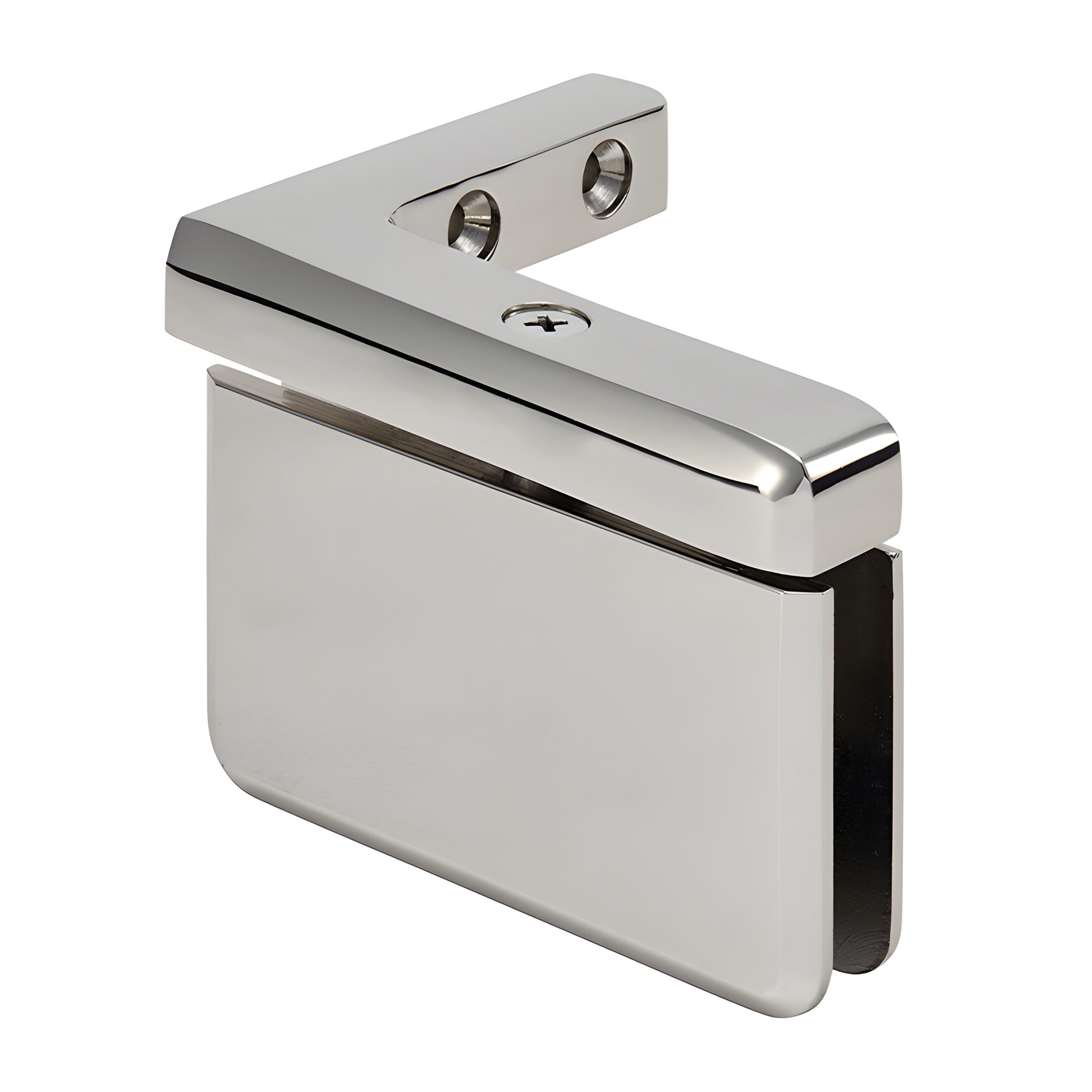

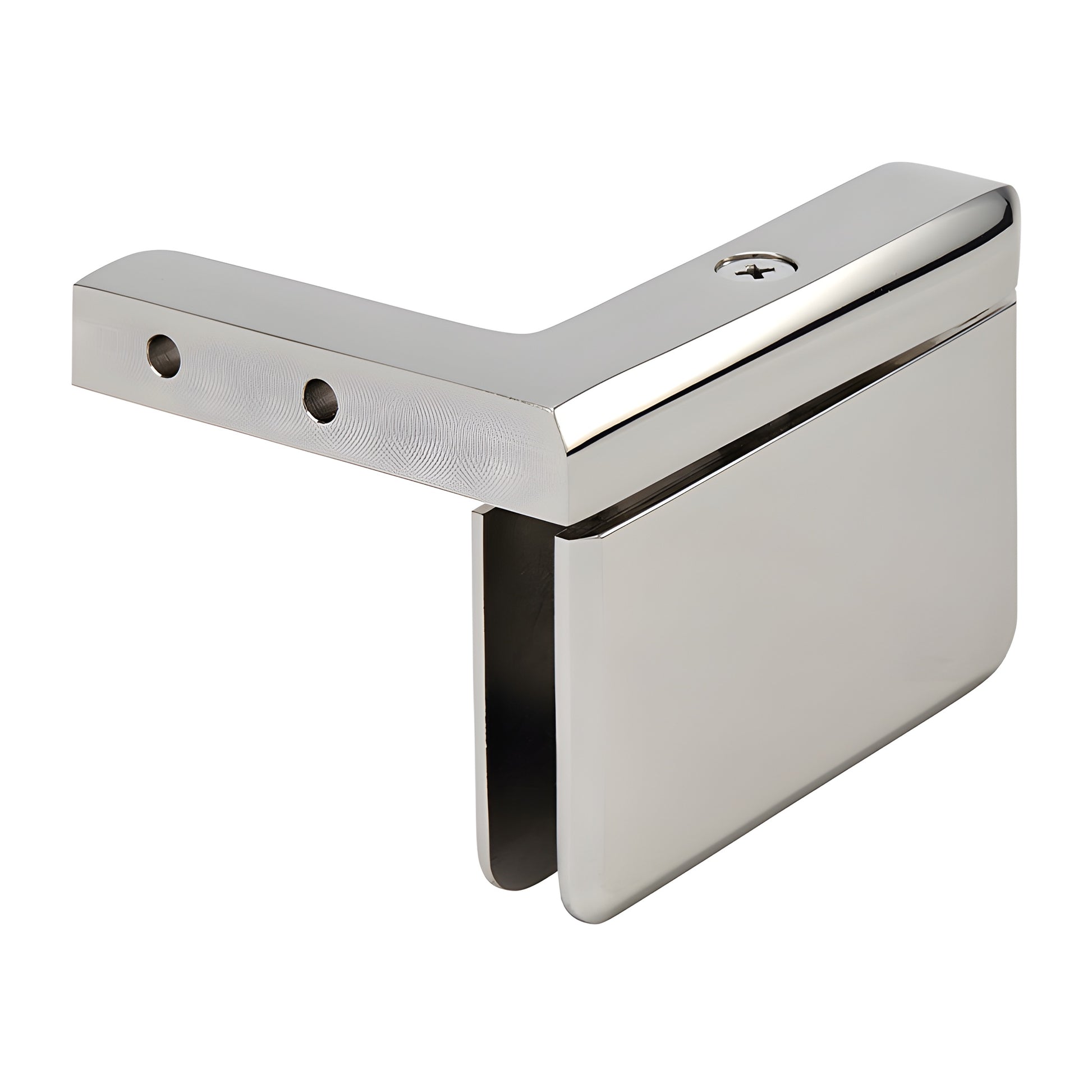

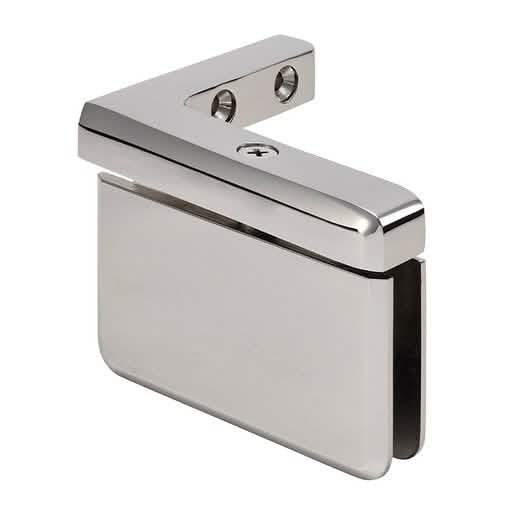

CRL Prima 05 Polished Nickel Left-Hand Offset Door Hinge

• Offset Bracket Wall Mount (Left Hand Mount When Viewed From Outside of Shower)
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• Use with Monolithic Tempered Glass
• 3 Year Warranty
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges — SKU: PPH05LPN
Designed for 5/16" to 3/8" (8–10 mm) tempered safety glass, Prima Series pivot hinges provide versatile shower door solutions including offset bracket wall mounts and left-hand configurations. Pivot-style hinges carry most of the door weight on the bottom and can be inset from the wall to allow clearance for towel bars and other projections. These solid brass hinges are self-centering with four springs for maximum retention strength and offer full rotation swing for smooth shower door operation. Pre-set 5° hinge models and optional 5° Pivot Pin Sets (Cat. No. P1VP1N) are available to alter the closing position.

Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series):
5° Pivot Pin Sets change the door closing position by five degrees. Pins may be inserted before or retrofitted after installation. Sold as a set (top and bottom). Not included with hinge purchase. Pre-set 5° hinge models are available from stock.

Capacity (using two hinges):
Holds up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm) for 5/16"–3/8" (8–10 mm) glass.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs compared to standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: (PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patented (U.S. Patent No. 5,297,313)

Custom finishes available on request — contact the CRL Technical Sales Department.
