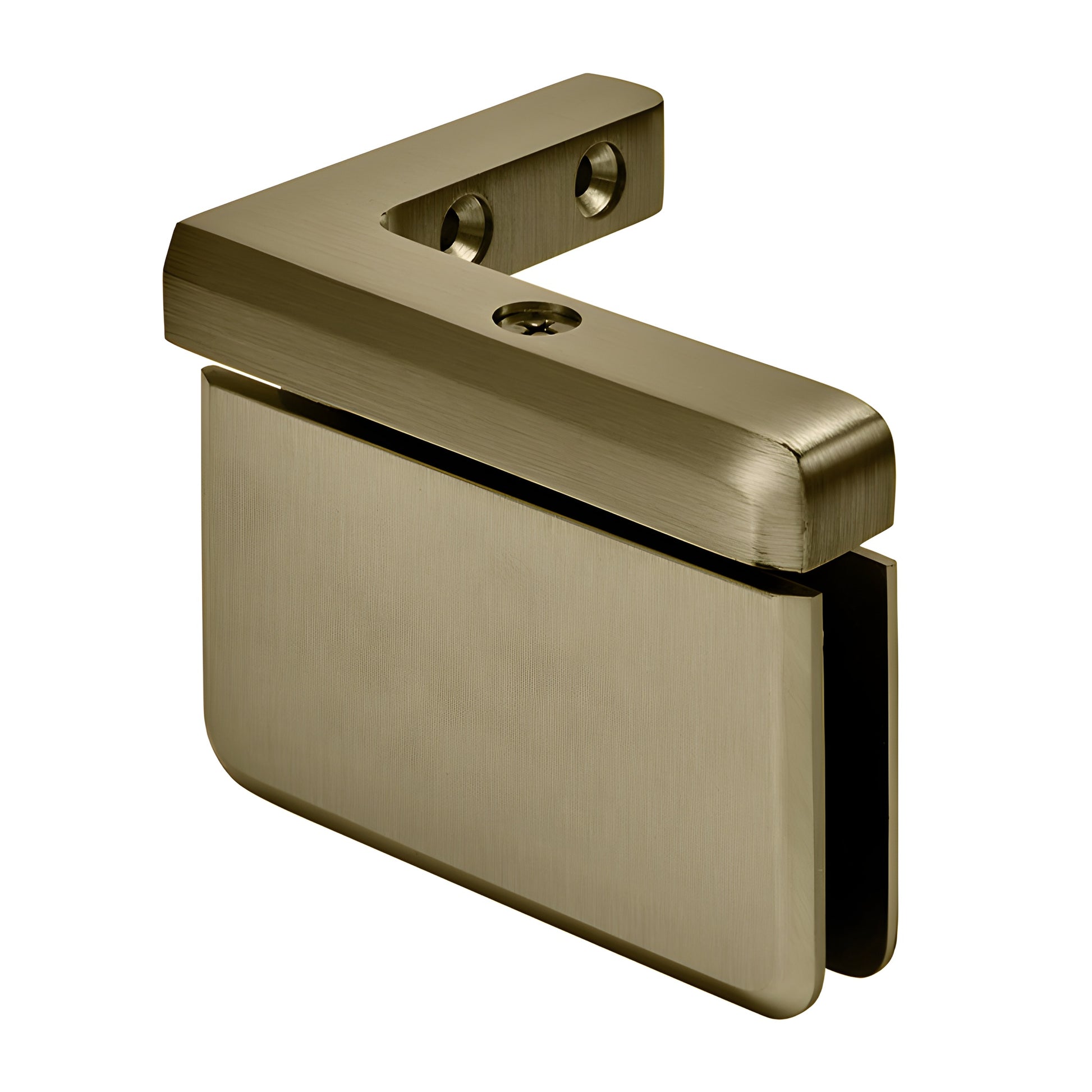

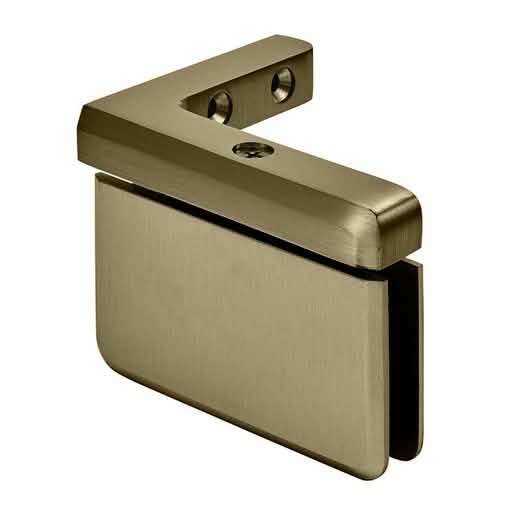

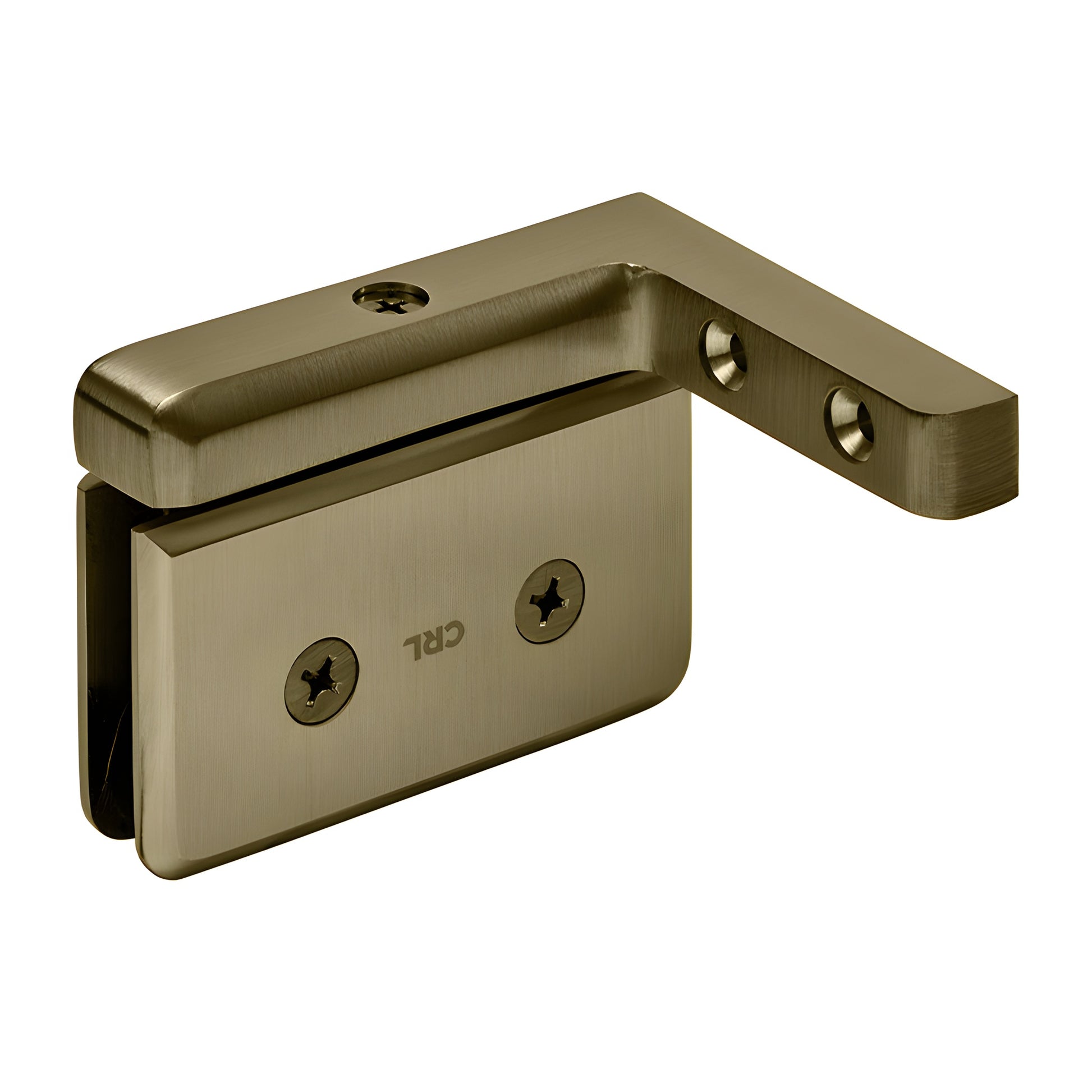

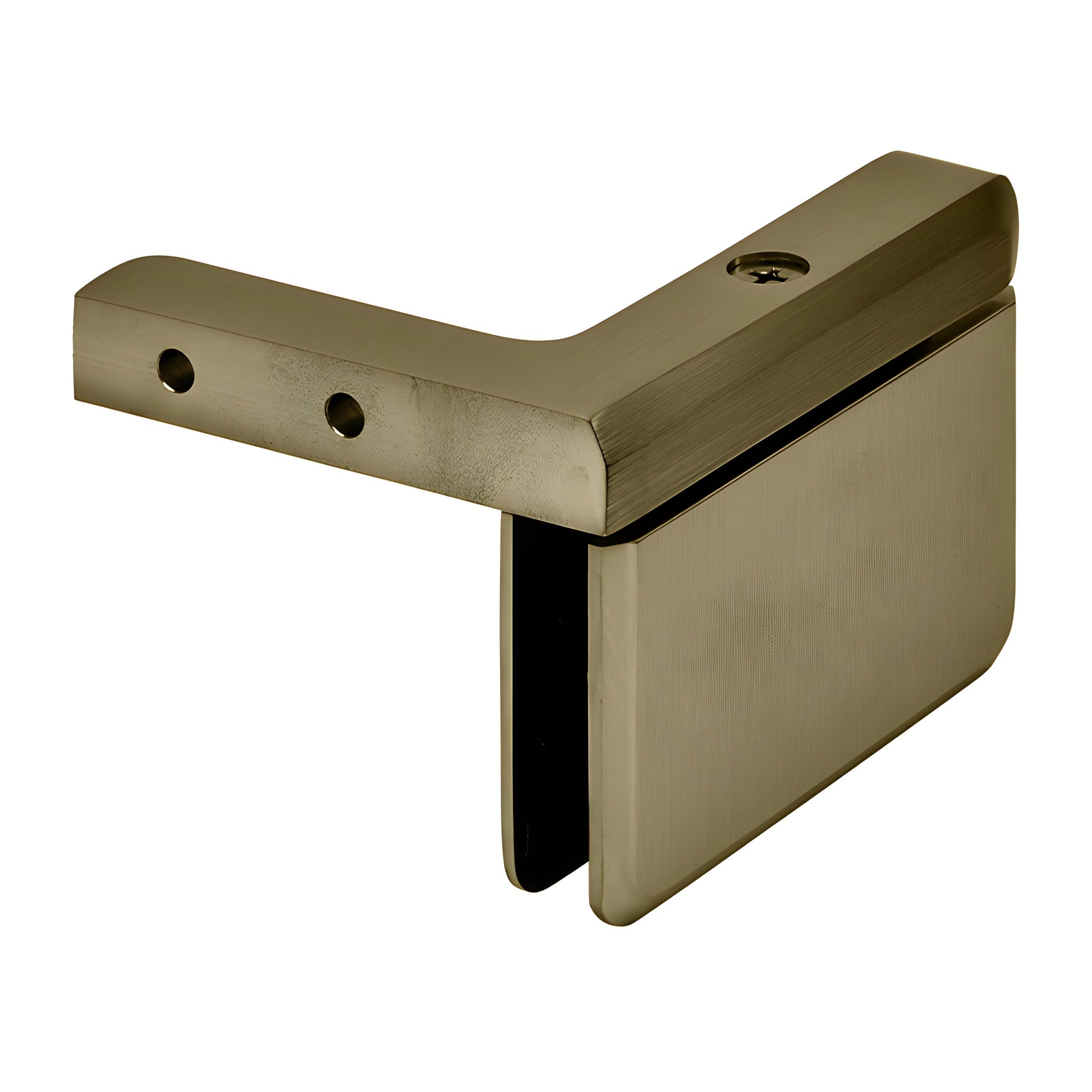

CRL Prima 05 Brushed Bronze Left-Hand Offset Shower Door Hinge

• Offset bracket wall mount — left hand mount when viewed from outside of shower
• Self-centering pivot hinge with optional 5° pivot pin set (pre-set option available)
• Available in multiple decorative finishes; custom finishes on request
• Designed for monolithic tempered safety glass (5/16" to 3/8" / 8–10 mm)
• 3 year warranty
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are precision solid-brass pivot hinges engineered for glass shower doors using 5/16" to 3/8" (8–10 mm) tempered safety glass. Ideal for residential and hotel shower enclosures, these left-hand offset bracket wall mounts carry the majority of door weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections—making them a preferred choice for frameless glass shower door installations and other glass door applications requiring an inset pivot hinge.

Prima Series hinges are self-centering with four internal springs for strong retention. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets may be ordered separately for a consistent 5-degree altered closing position; pivot pins can be installed before or retrofitted after installation. Pre-set 5° hinge models are available from stock.

Compatibility & Models: The PPH01 model adapts to the Deluxe Header System for partial-height enclosures. PPH06 is compatible only with the EZ-Adjust Header System and includes the EZ-Adjust adaptor. (Optional pivot pin sets are not included with hinge purchase.)

Performance Using Two Hinges: For 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lb (45 kg) with a maximum door width of 31" (787 mm).

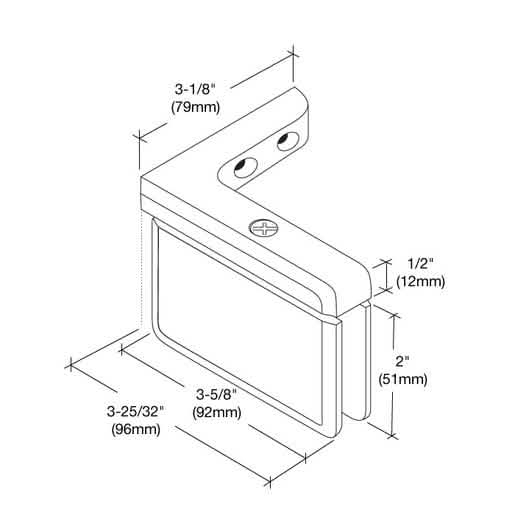

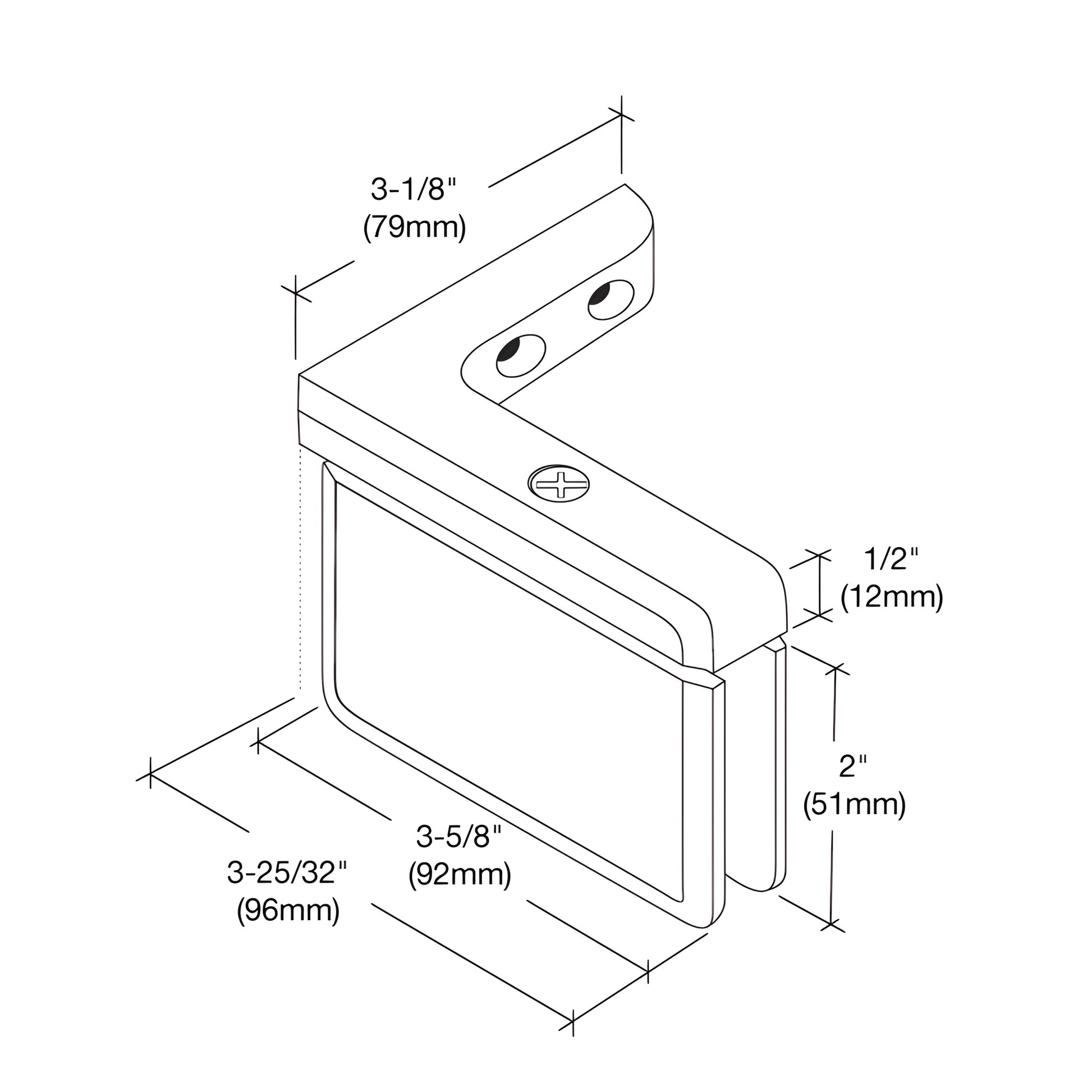

SPECIFICATIONS:
SKU: PPH05LBBRZ
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces cut-outs compared to standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass for durability and corrosion resistance
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Requirements: PPH135 requires two holes; PPH07 requires cut-out for hinge plus clamp hole. Use only the template included with this hinge—cut-outs may differ from other brands.
Includes: Gaskets, screws, and glass fabrication dimensions
Patented: Patent No. 5,297,313

Custom finishes and
