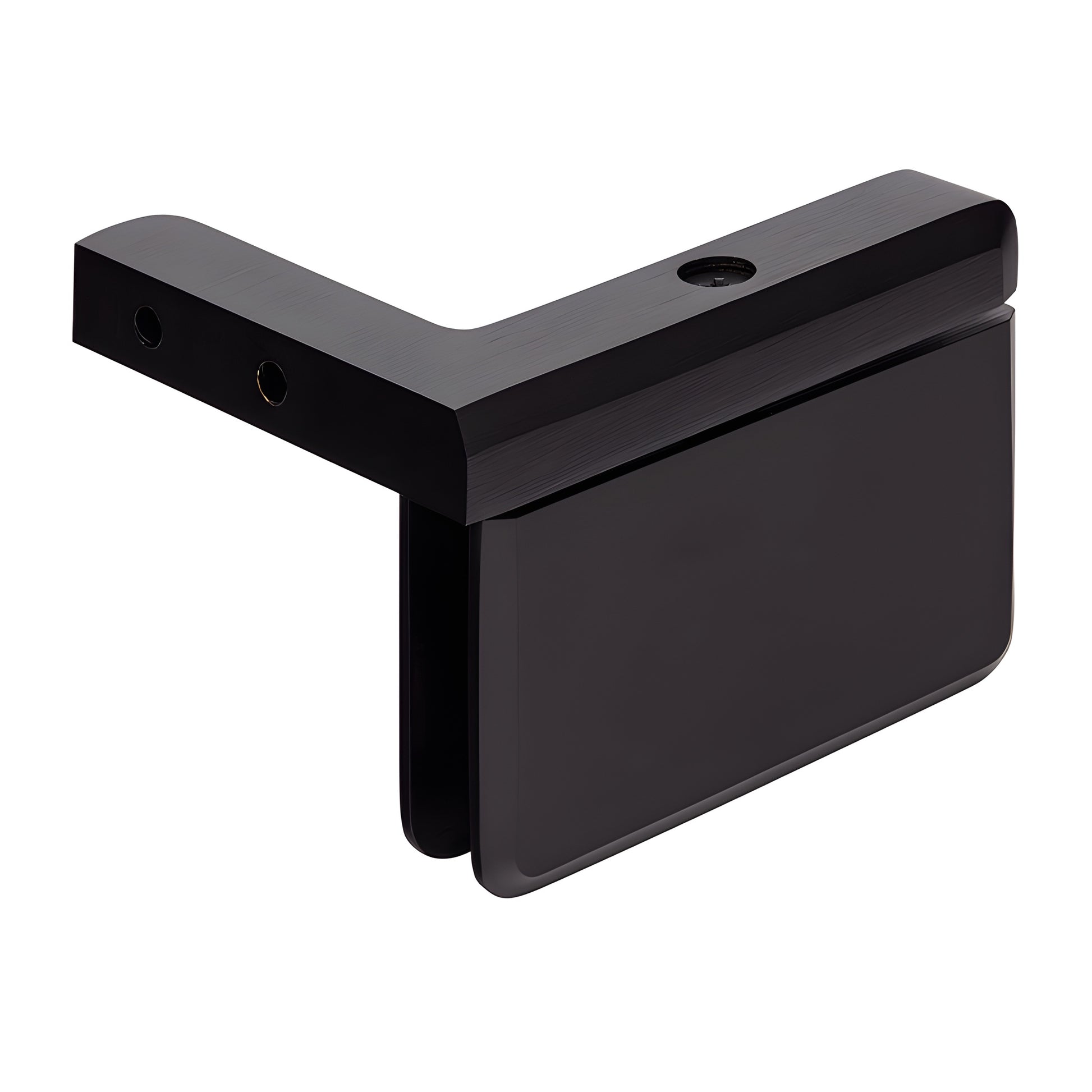

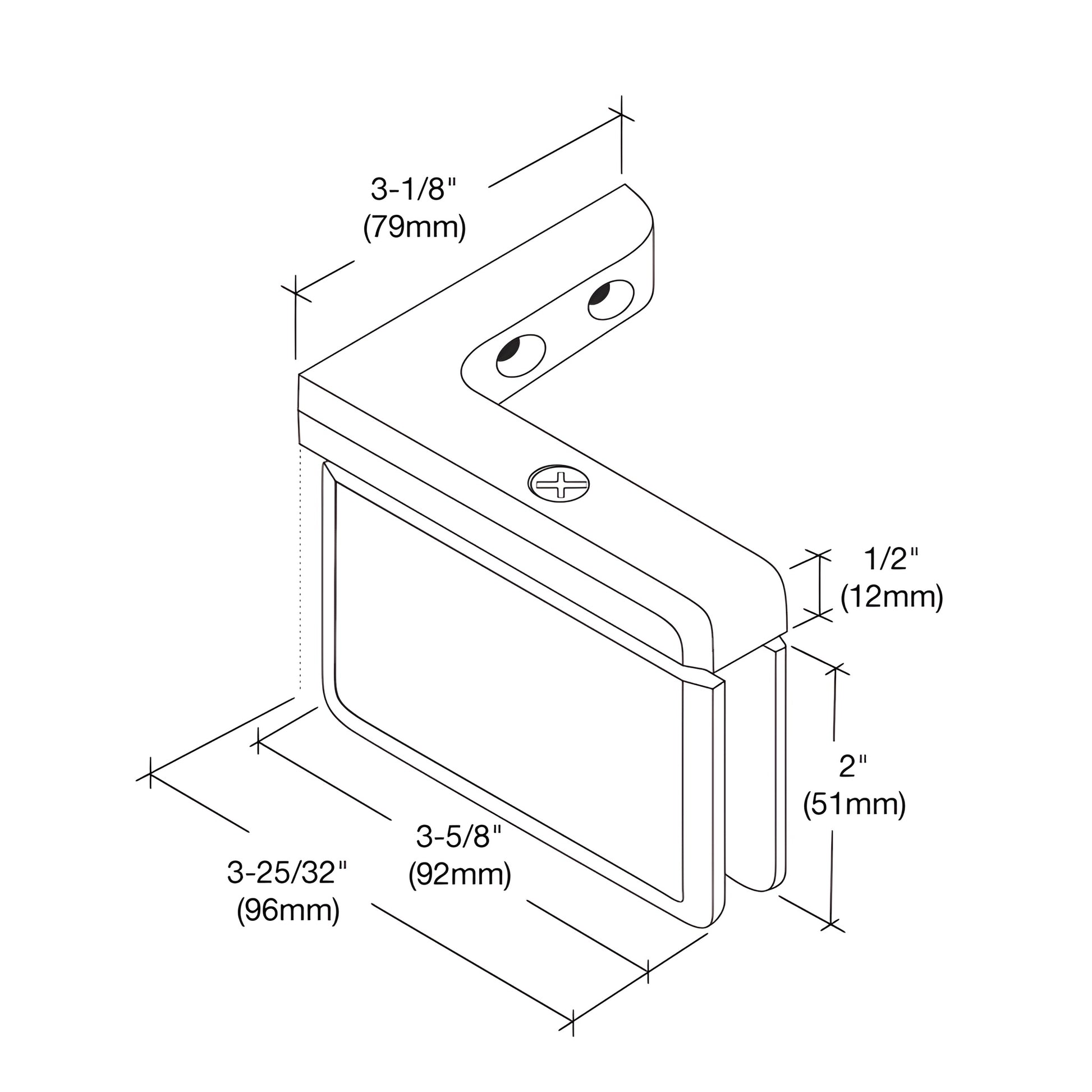

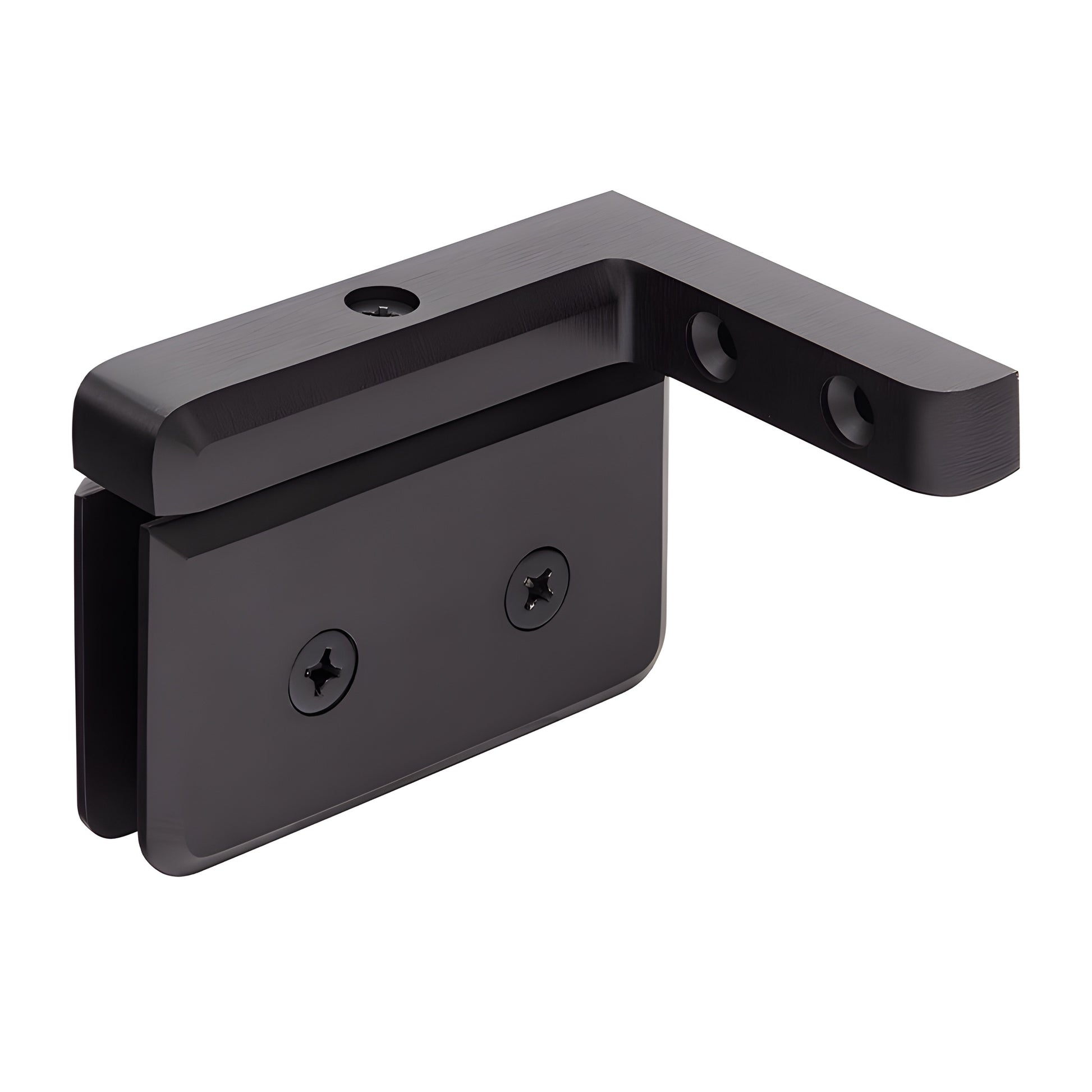

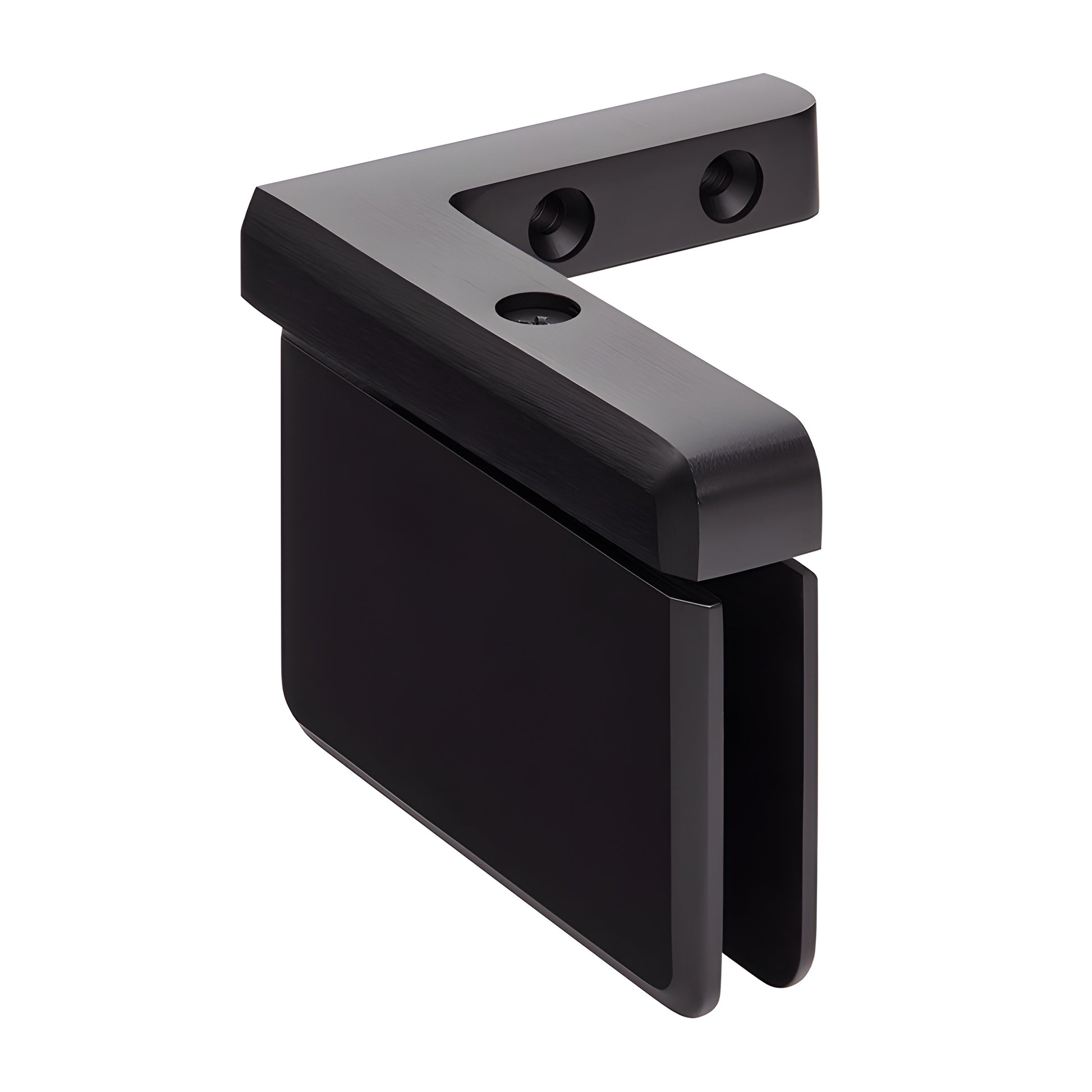

CRL Prima 05 Oil Rubbed Bronze Left-Hand Offset Door Hinge

• Offset Bracket Wall Mount (Left hand mount when viewed from outside of shower)
• Self-centering with optional 5° pivot pin set
• Available in several beautiful finishes
• Use with monolithic tempered glass
• 3 Year Warranty
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are engineered for 5/16" to 3/8" (8 to 10 mm) tempered safety glass and offer versatile installation options for residential and hotel shower doors. These left-hand offset wall mount pivot hinges are a practical choice when you need an inset hinge that provides clearance for towel bars and other projections. Prima hinges carry most of the door weight at the bottom, are constructed of solid brass for long life, and include four springs for strong self-centering retention. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets (sold separately) let you alter the closing position by 5°; they can be installed before or retrofitted after installation. Pre-set 5° hinge models are also available from stock.

PPH01 adapts to the Deluxe Header System for partial-height enclosures; PPH06 is compatible only with the EZ-Adjust Header System and includes the required adaptor. When using two hinges with 5/16"–3/8" glass, each hinge pair will support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm). These hinges are ideal as a tempered glass shower door pivot hinge or left-hand offset wall mount hinge for glass shower doors.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Sold as a top-and-bottom set to shift door closing by 5°. Not included with hinge purchase.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge and hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes available on request—contact the CRL
