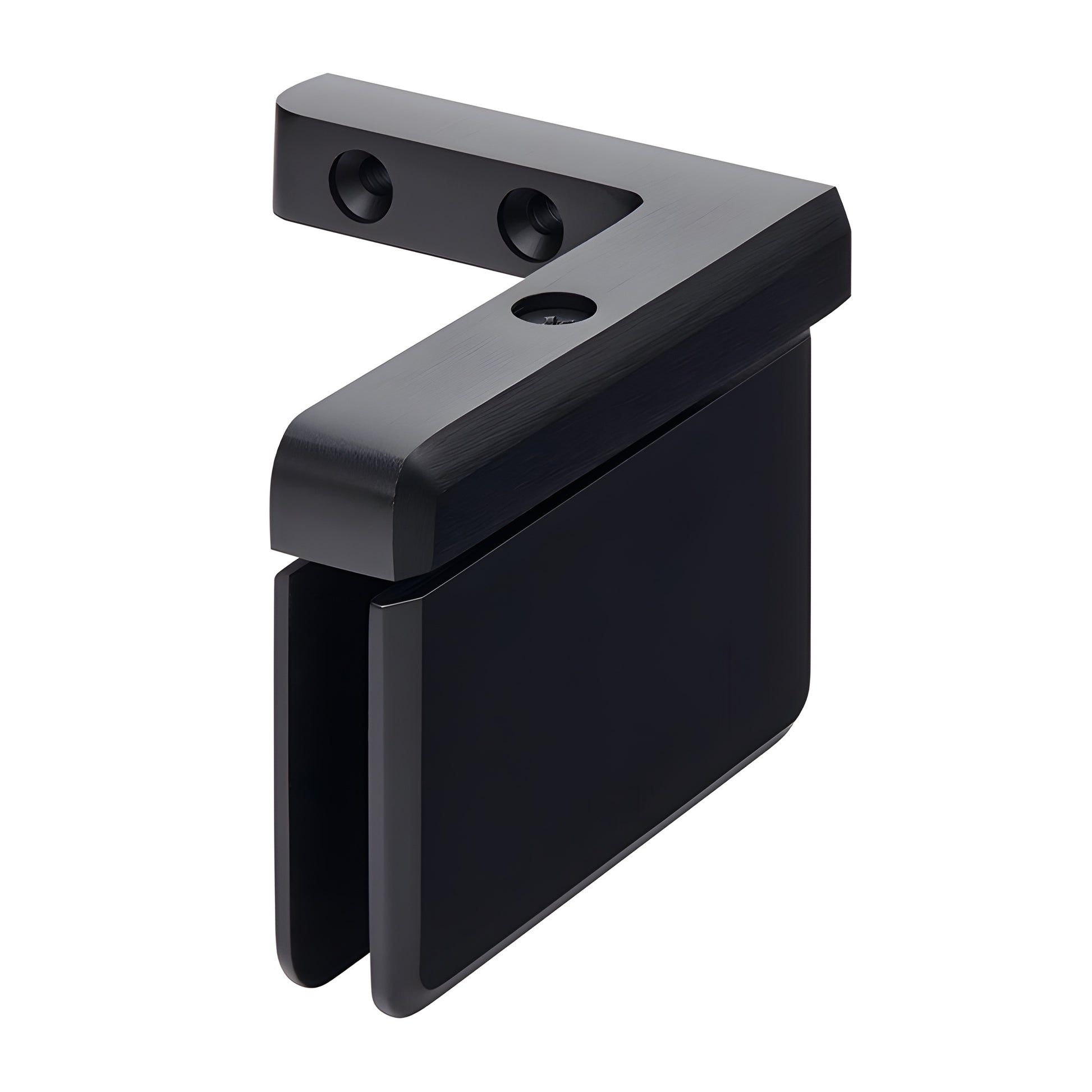

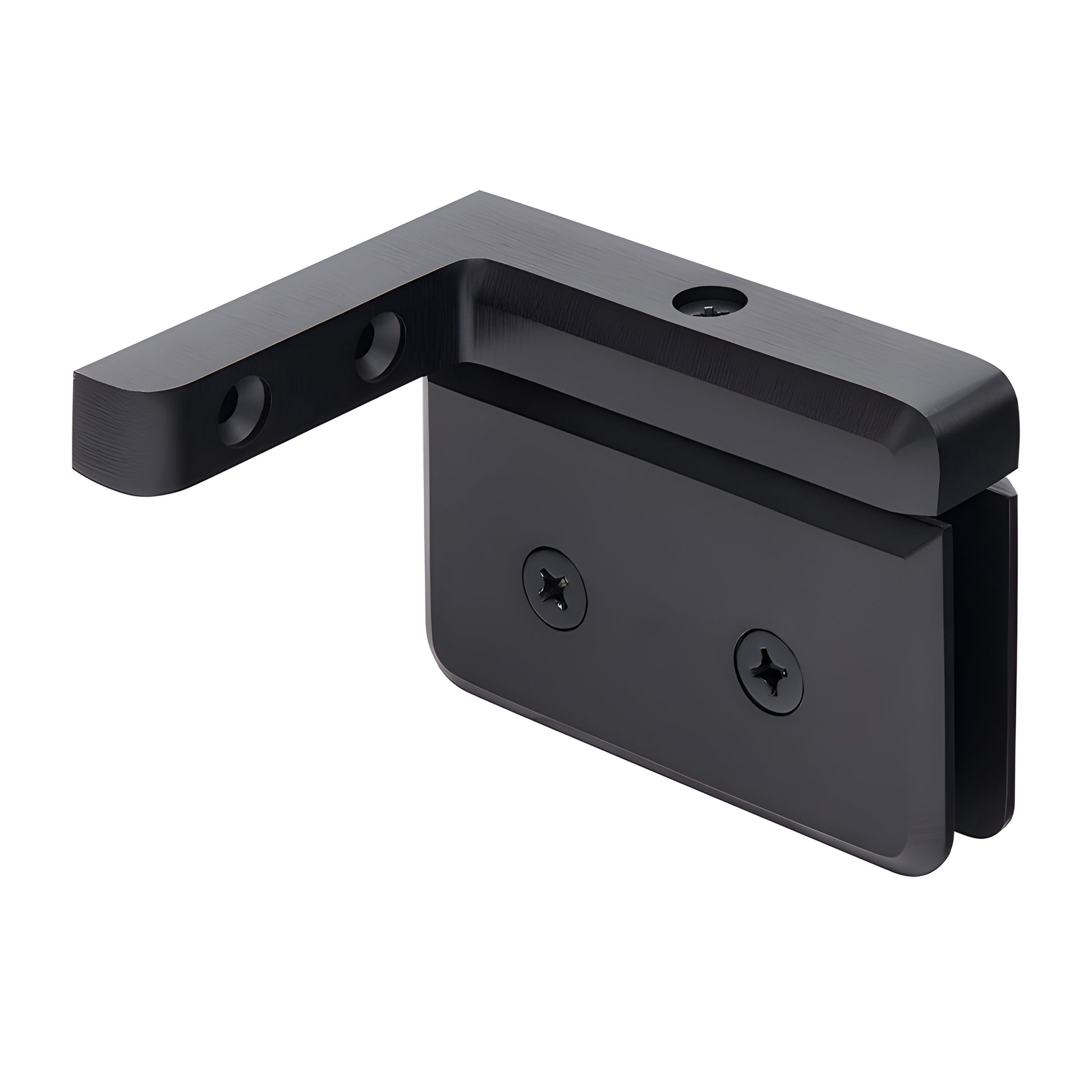

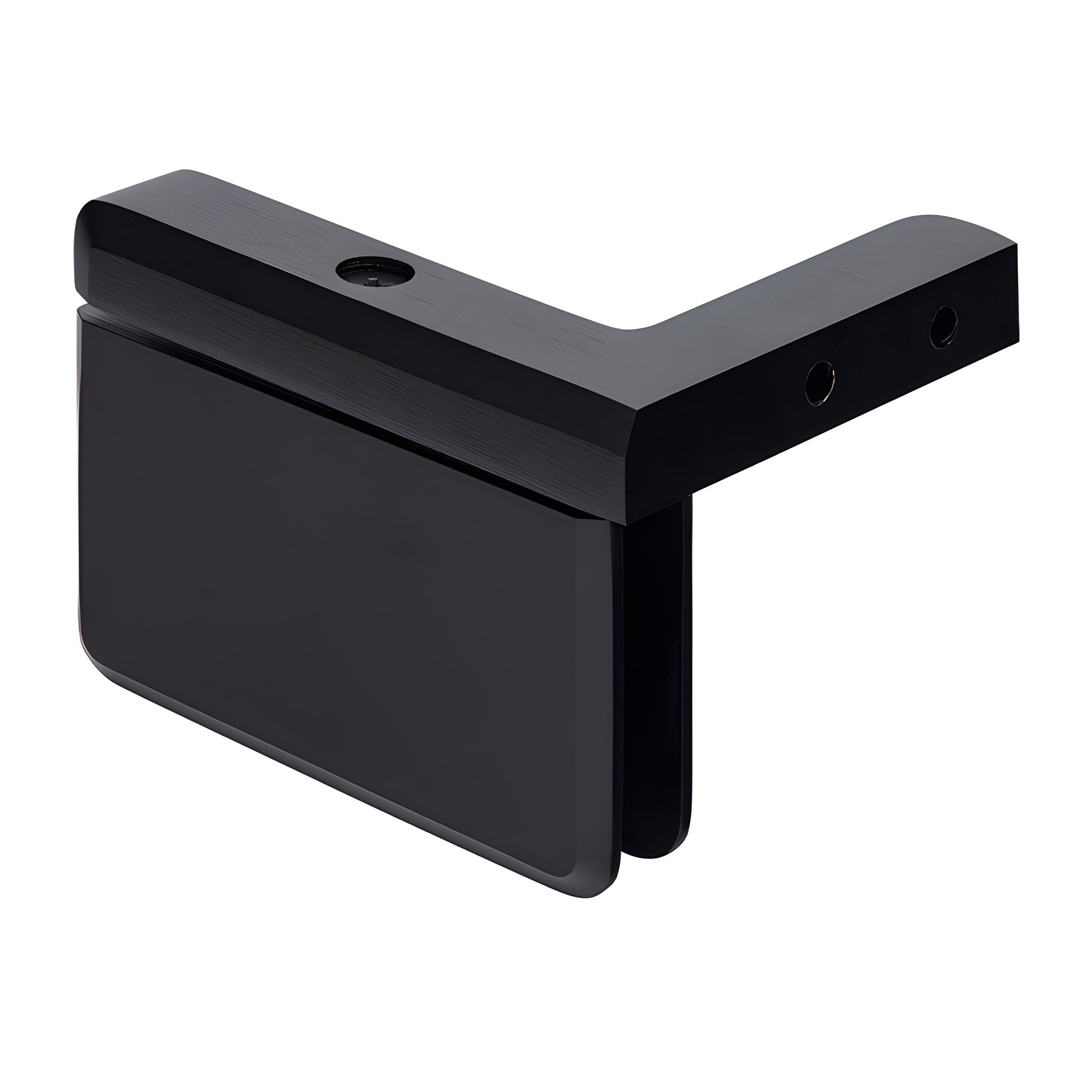

CRL Prima 05 Matte Black Right-Hand Offset Glass Door Hinge

• Offset Bracket Wall Mount (Right-hand mount when viewed from outside the shower)
• Self-centering hinge with optional 5° pivot pin set (pre-set or retrofit)
• Available in several durable finishes; custom finishes available on request
• 3-year warranty
• Designed for monolithic tempered safety glass
• U.S. Patent No. 5,297,313

CRL Prima Series Pivot Hinges are engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass and expand application options for shower enclosures. Pivot hinges carry most of the door weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections—ideal for remodels and custom showers. Prima hinges are self-centering with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets can be ordered separately or retrofitted after installation. Pre-set 5° hinge models are also available from stock.

Some models integrate with CRL header systems: PPH01 adapts to the Deluxe Header System for partial-height enclosures; PPH06 is compatible only with the EZ-Adjust Header System and includes the required adaptor.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Adjust the closing position by 5°. Sold as a set (top and bottom). Not included with hinge purchase.

Performance with two hinges: For 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lb (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount exposes more glass and reduces cut-outs vs. standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge plus hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patent No. 5,297,313

Custom finishes available—contact the
