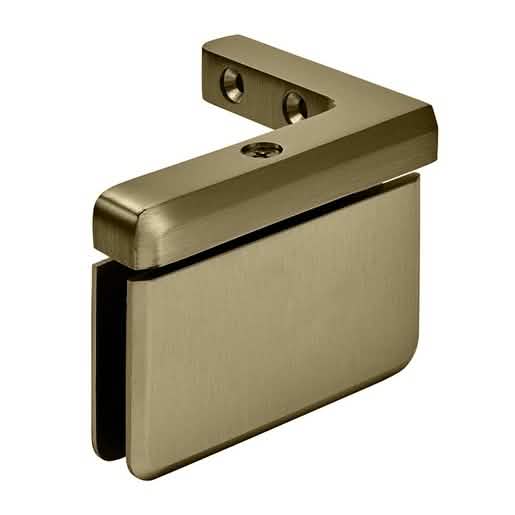

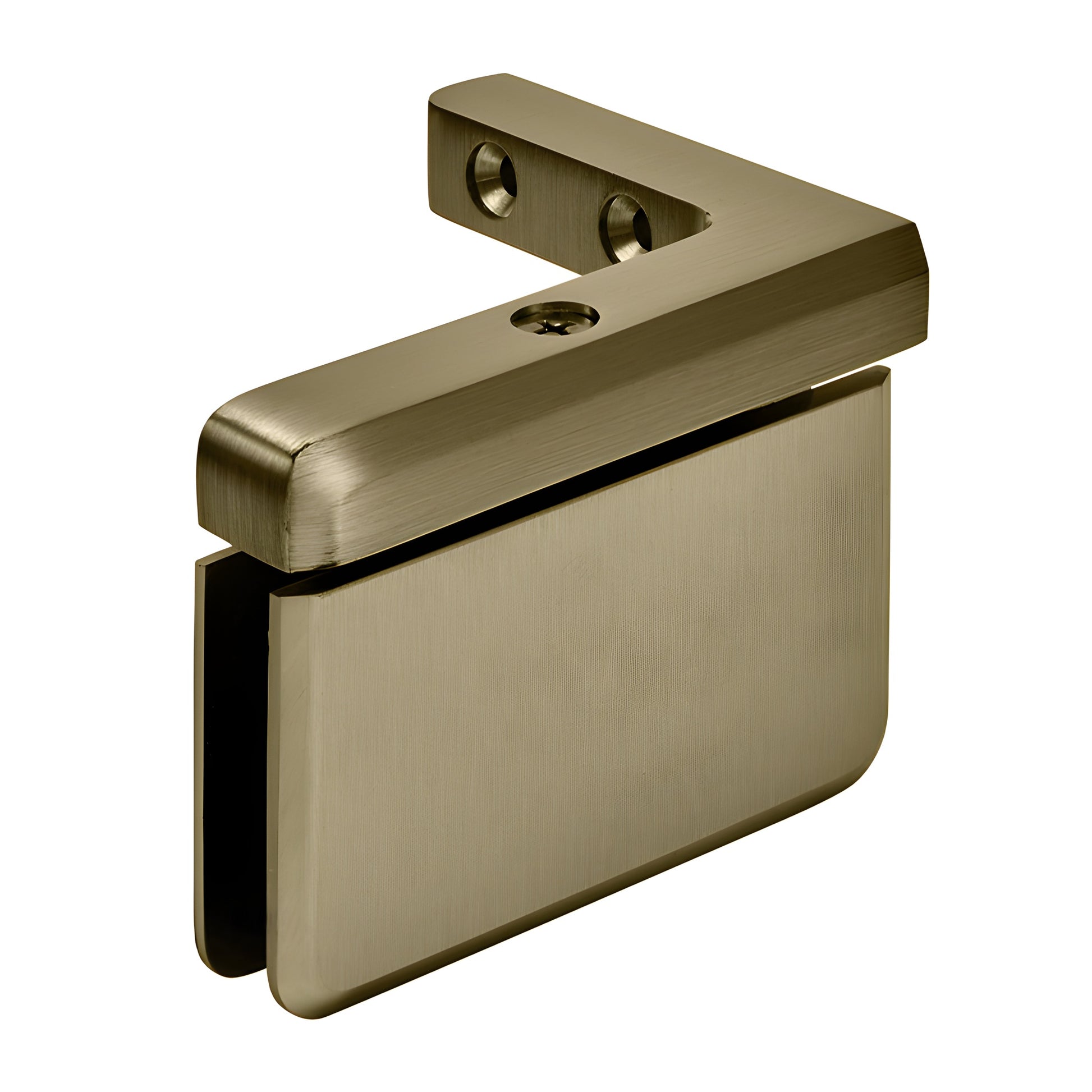

CRL Prima 05 Right-Hand Brushed Bronze Offset Mount Glass Door Hinge

• Offset Bracket Wall Mount (Right-hand mount when viewed from outside of shower)
• Self-centering pivot hinge with optional 5° pivot pin set
• Fits 5/16" to 3/8" (8–10 mm) monolithic tempered safety glass
• Available in several durable finishes; custom finishes on request
• Solid brass construction for corrosion resistance
• 3 year warranty
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH05RBBRZ) are engineered for glass shower doors and offer versatile installation options for residential and hotel applications. Designed for 5/16" to 3/8" (8–10 mm) tempered glass, these offset bracket wall mount hinges provide inset mounting clearance for towel bars and projections while carrying most of the door weight at the bottom. The Prima Series features four springs for strong self-centering action and full rotation hinge swing for smooth operation.

Optional 5° Pivot Pin Set (Cat. No. P1VP1N): Use to adjust the door closing position by 5°. Pivot pins can be pre-installed or retrofitted after installation. Sold as a top-and-bottom set. (Not included with hinge purchase.) Pre-set 5° hinge models are available from stock.

Performance using two hinges: For 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces cut-outs vs. standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Requirements: PPH135 model requires two holes; PPH07 model requires cut-out for hinge plus hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes available on request. Contact the CRL Technical Sales Department for details.

Product Warning:

CRL Shower Door Hinges are intended for residential and hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template provided with this hinge—CRL cut-out dimensions may
