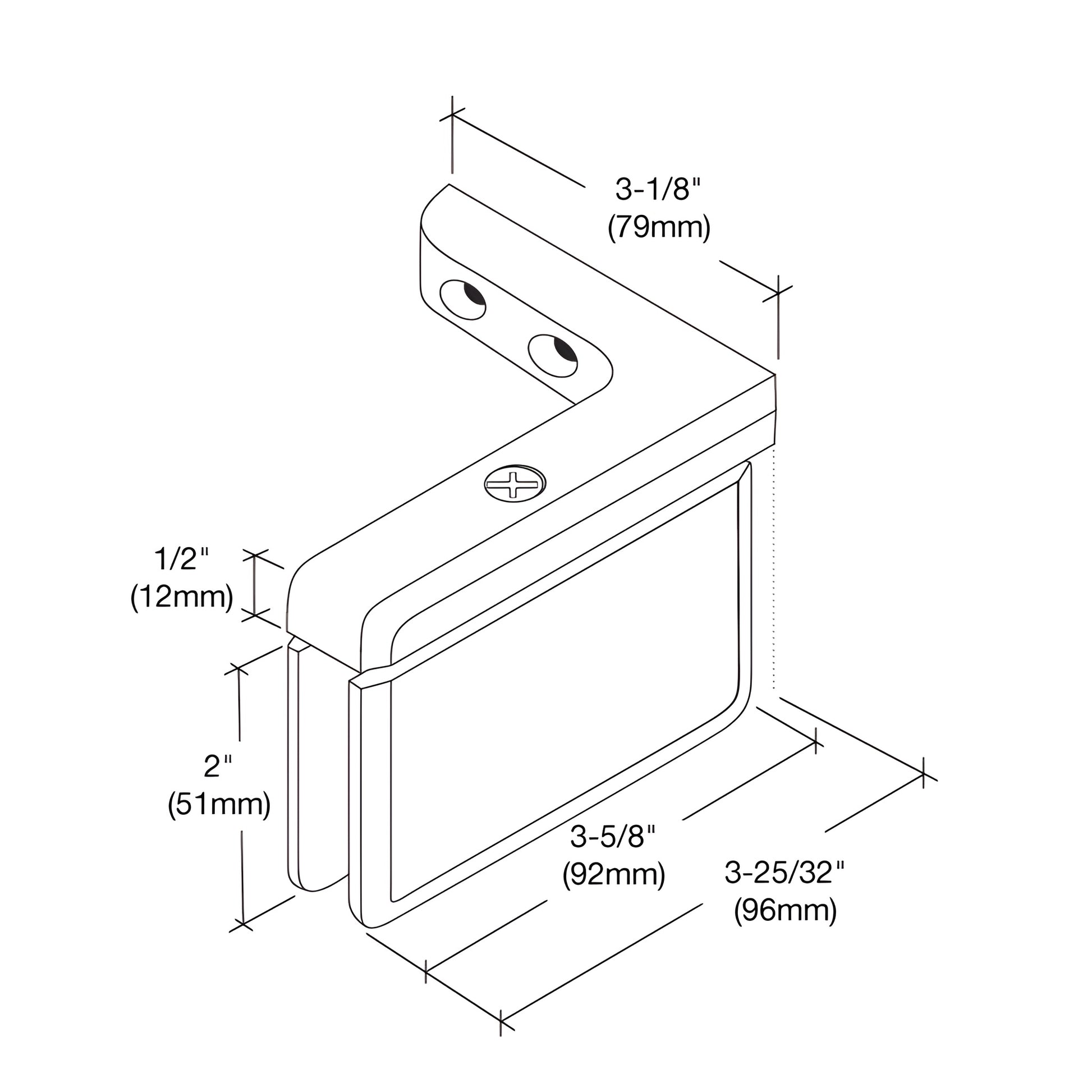

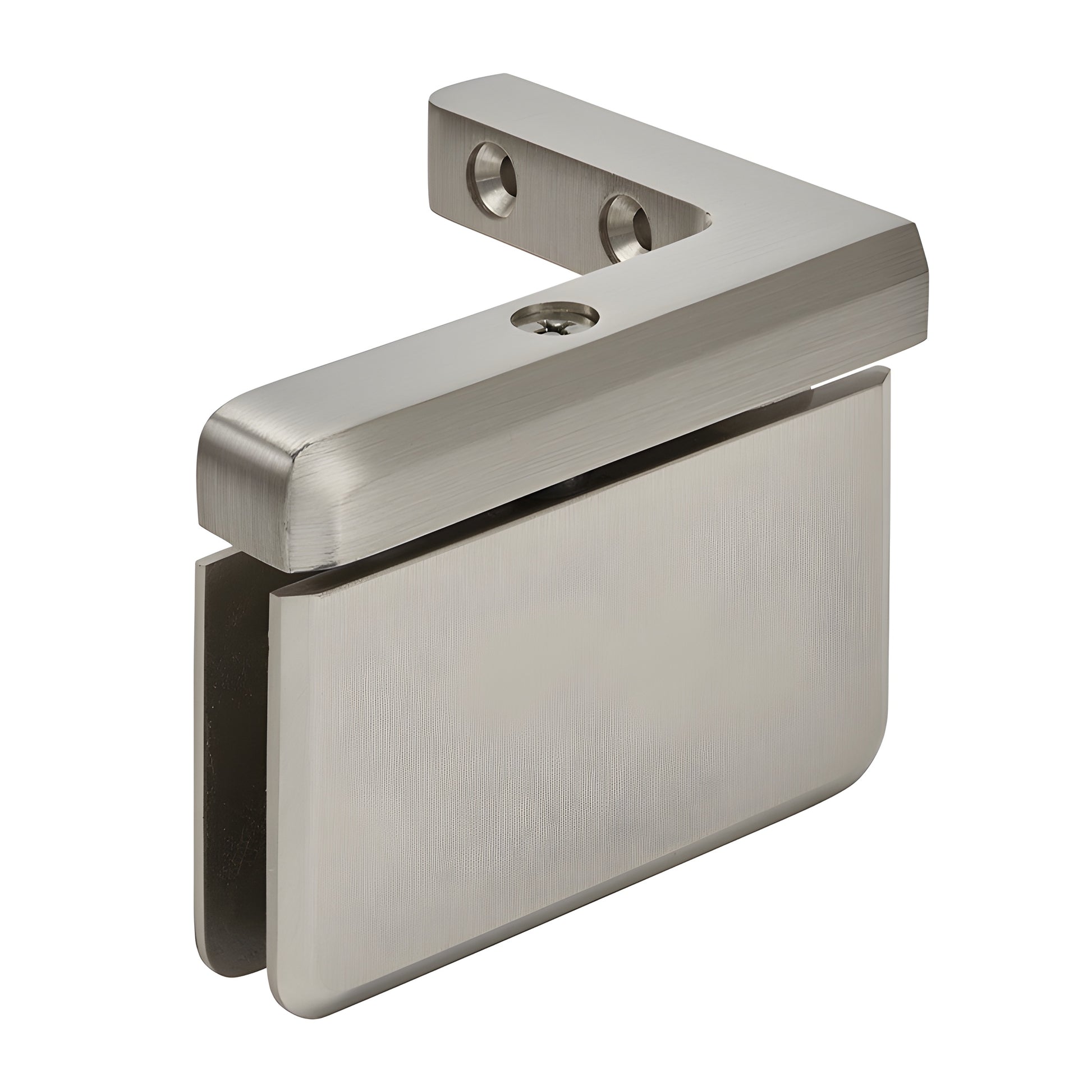

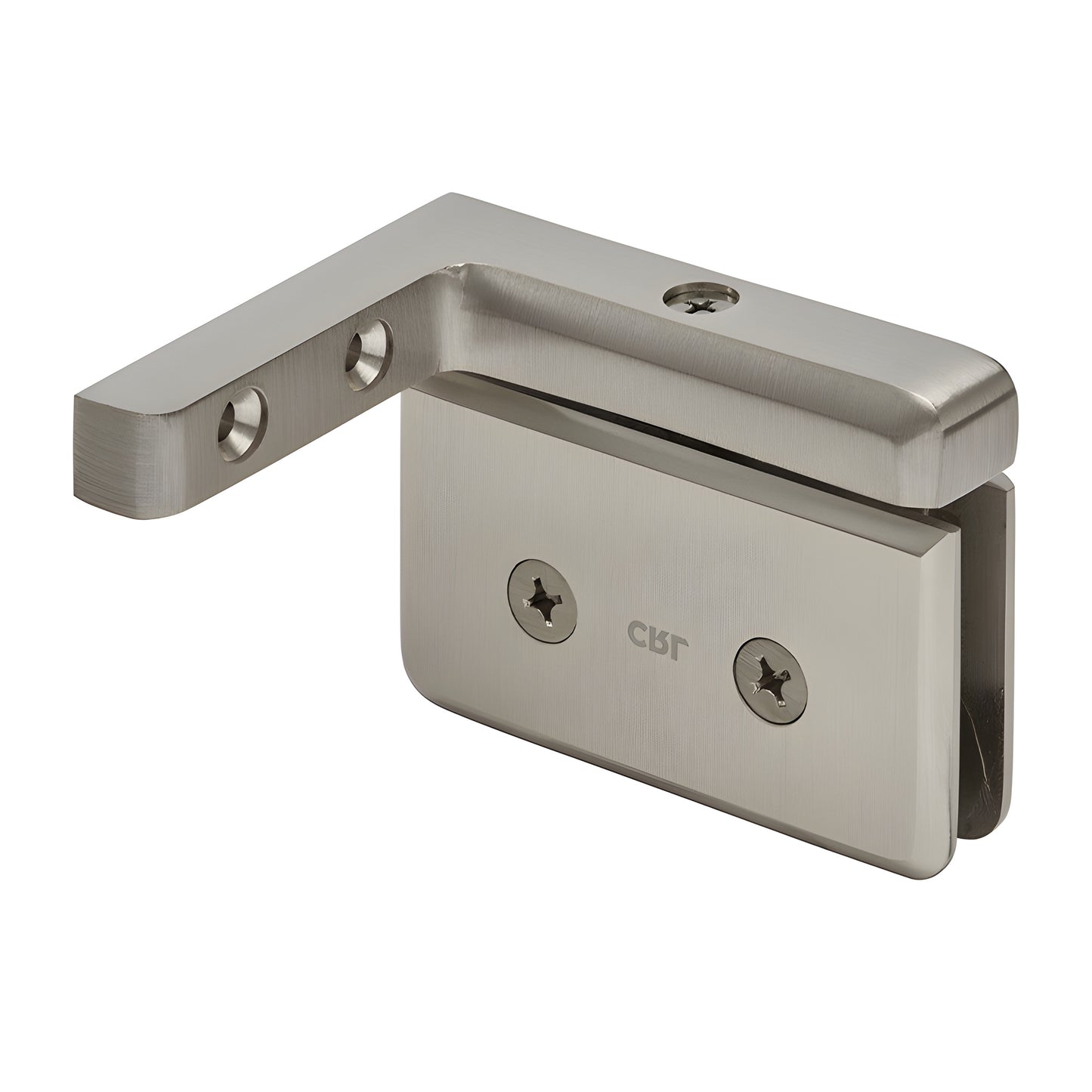

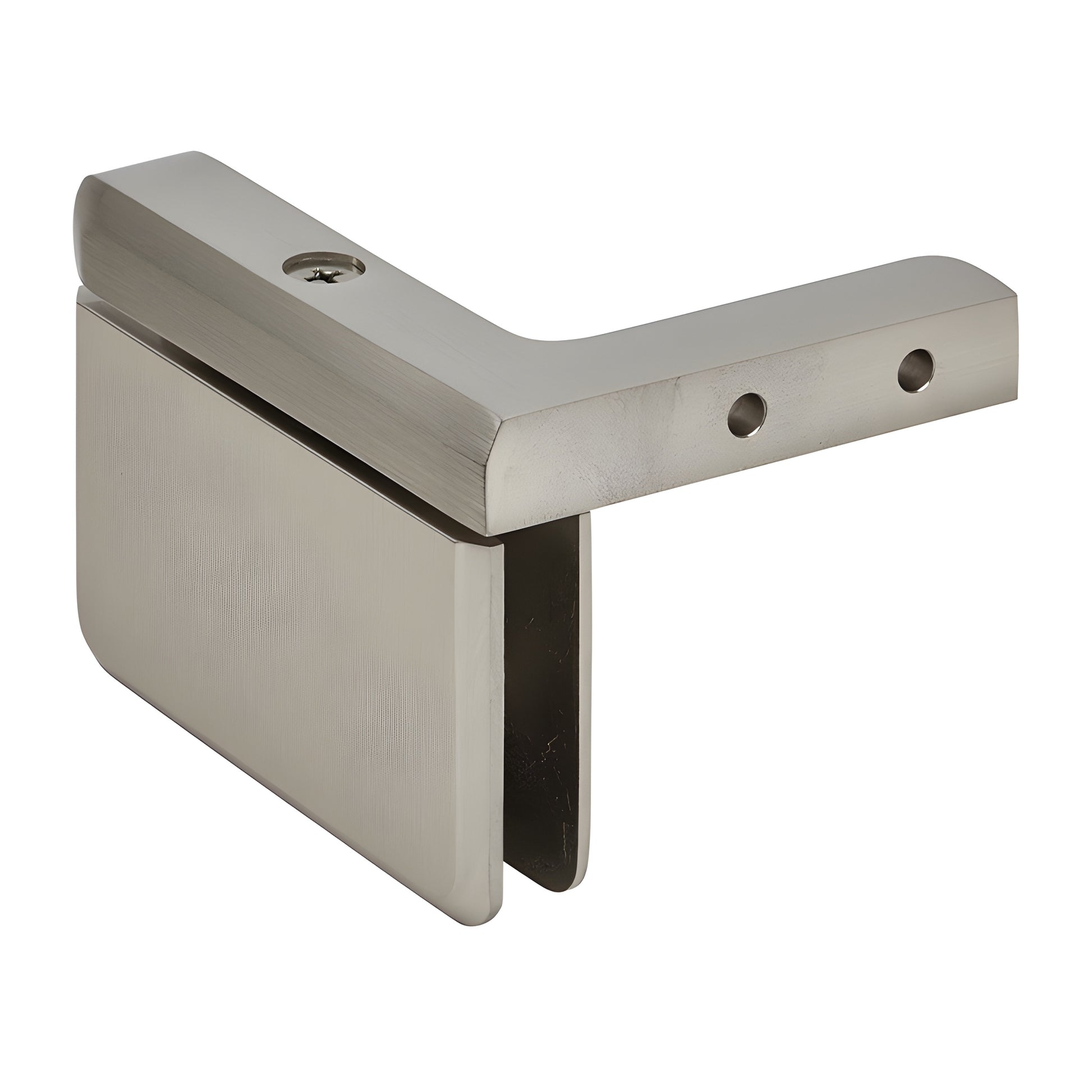

CRL Prima 05 Brushed Nickel Right-Hand Offset Mount Door Hinge

• Offset Bracket Wall Mount (Right hand mount when viewed from outside of shower)
• Self-centering with optional 5° pivot pin set
• Available in several beautiful finishes
• 3 Year Warranty
• Use with monolithic tempered glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH05RBN) are engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass and expand application options for glass shower doors. These offset bracket wall-mount pivot hinges carry most of the door weight at the bottom, can be inset from the wall to clear towel bars and projections, and expose more glass for a cleaner, modern look. The Prima series is self-centering using four springs for maximum retention strength. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets may be ordered separately; pre-set 5° hinge models are also available from stock.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Adjust closing position by 5° with an optional top-and-bottom pivot pin set. Pins may be installed before or retrofitted after installation. Sold separately; not included with hinge purchase.

Capacity (two hinges): For 5/16" to 3/8" glass (8–10 mm), two hinges support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor & ceiling or floor & header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: (PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes are available on request—contact the CRL Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are intended for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only
