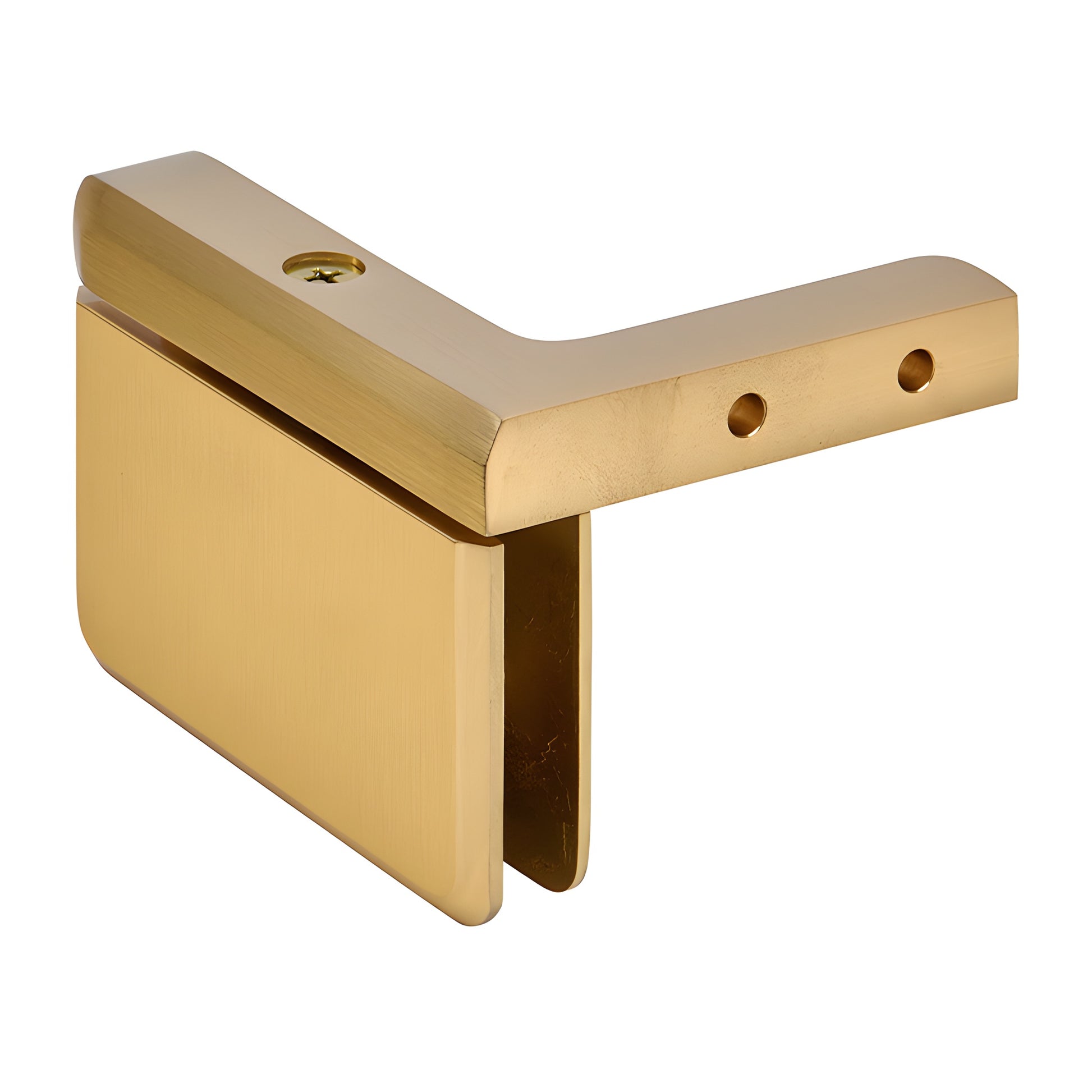

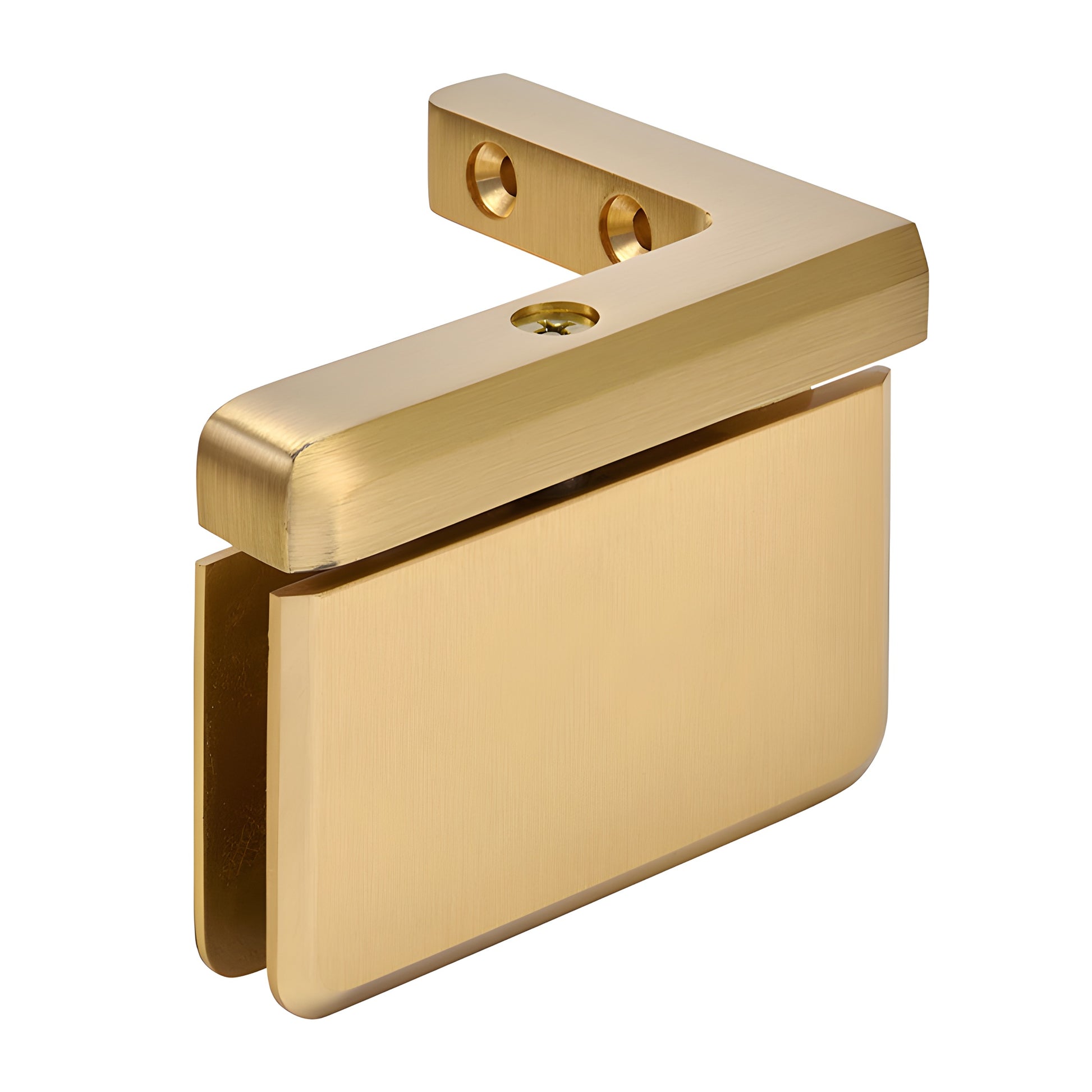

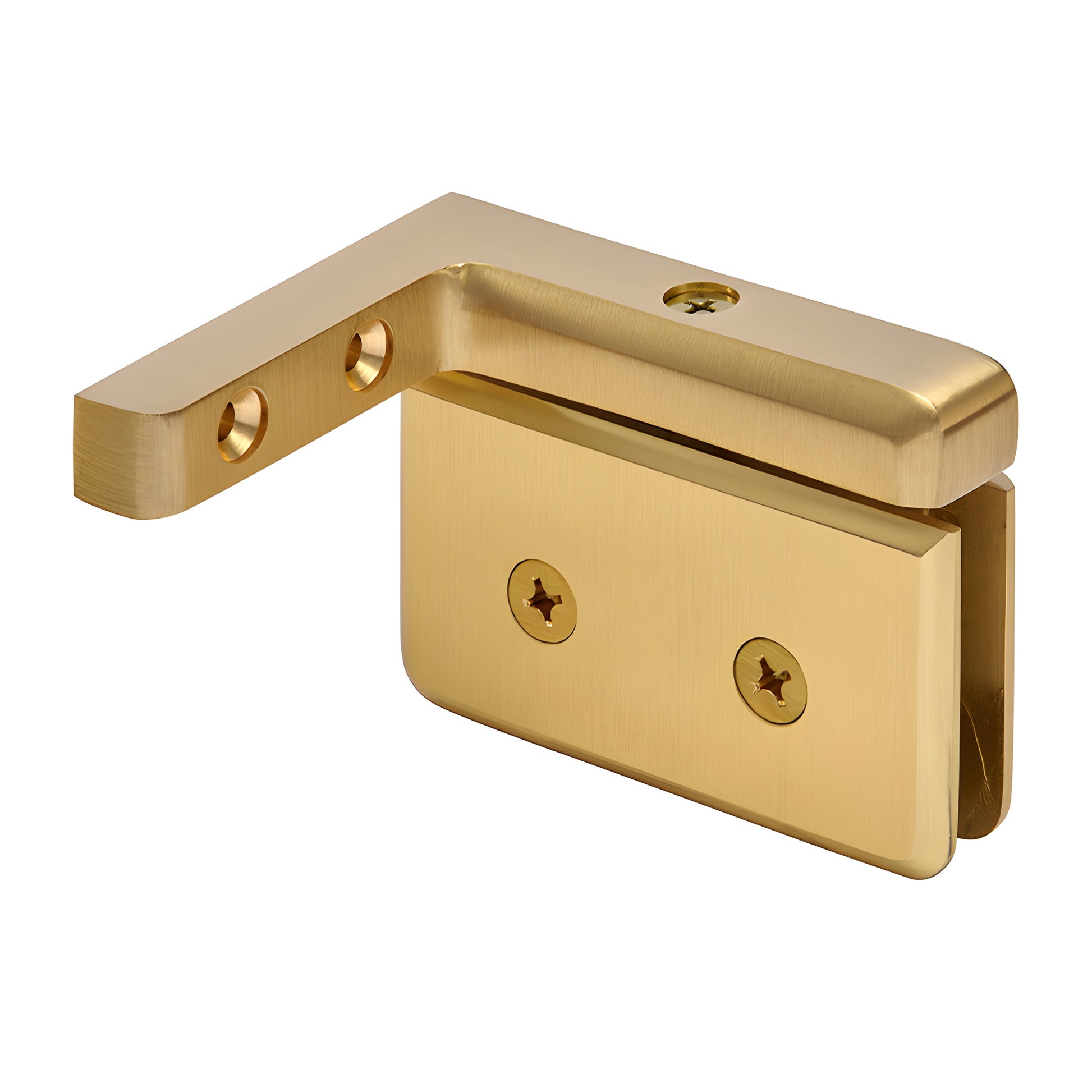

CRL Prima 05 Satin Brass Right-Hand Offset Door Hinge

• Offset Bracket Wall Mount (Right hand mount when viewed from outside of shower)
• Self-centering with optional 5° pivot pin set
• Available in several durable finishes
• 3 year warranty
• For use with monolithic tempered glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are engineered for 5/16" to 3/8" (8 to 10 mm) tempered safety glass and expand application options for frameless and semi-frameless shower doors. Pivot-type hinges carry most weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections—ideal when you need an offset wall mount right-hand shower hinge (SKU PPH05RSB reference). Prima hinges are self-centering with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets are available to shift the door closing position by 5°; pins may be installed before or retrofitted after installation. Pre-set 5° hinge models are also stocked.

Compatibility notes: The PPH01 model adapts to our Deluxe Header System for enclosures not reaching the ceiling. The PPH06 model is compatible only with the EZ-Adjust Header System and includes an adaptor for that header.

Optional 5° Pivot Pin set (Prima, Cardiff, Rondo, Shell Series): Sold as a set (top and bottom). Not included with hinge purchase. Use to alter door closing position by 5°; install pre- or post-installation.

Using two hinges with 5/16"–3/8" (8–10 mm) glass: holds up to 100 lb (45 kg) with maximum door width of 31" (787 mm). Ideal long-tail keywords: self-centering pivot hinge for tempered glass shower door, offset right-hand wall mount pivot hinge, solid brass shower door hinge 8mm 10mm.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design exposes more glass and reduces the number of cut-outs compared to standard side-mount glass-to-glass hinges. PPH01 can be mounted floor & ceiling or floor & header.
Construction: Solid brass for durability and corrosion resistance
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge plus hole for clamp
Includes:
