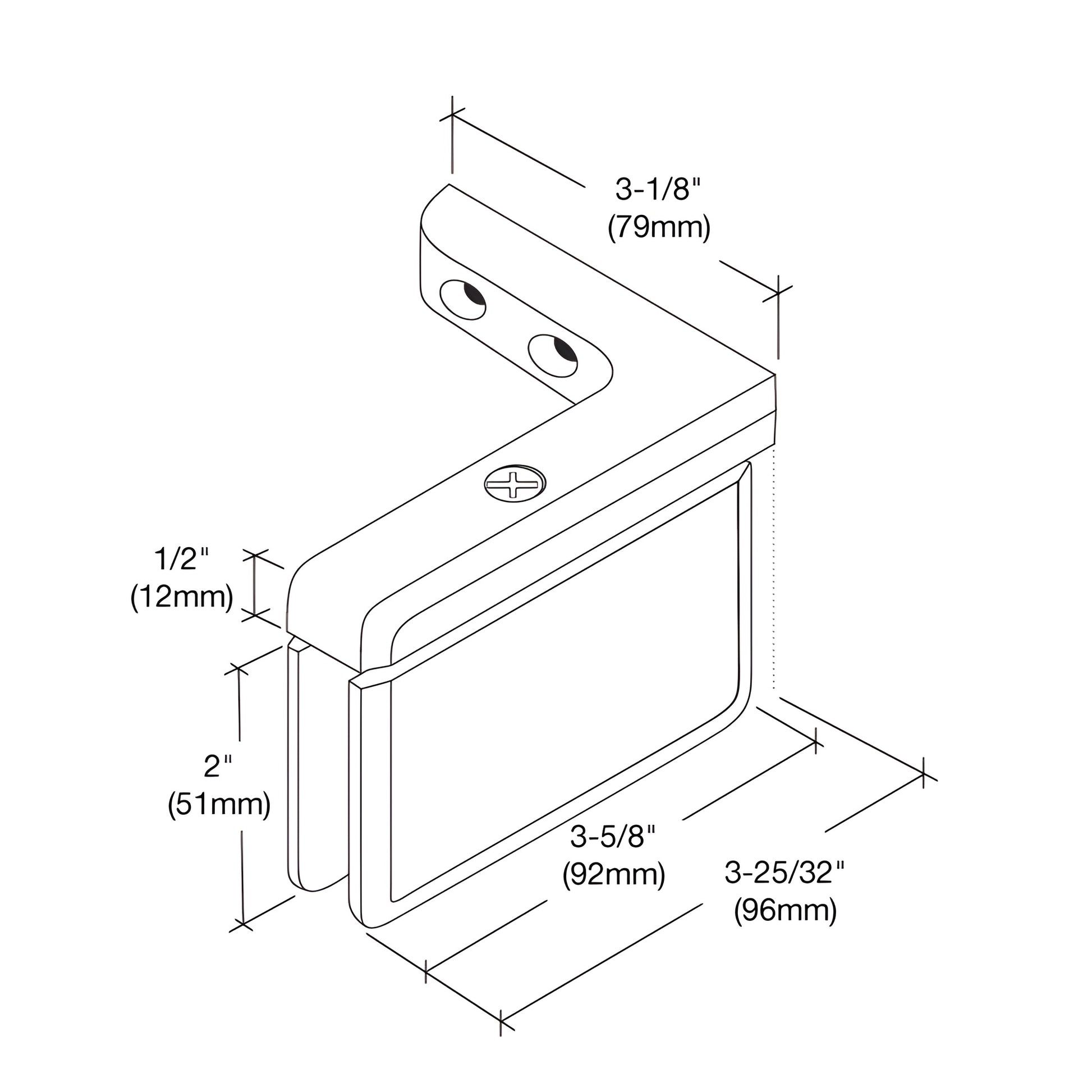

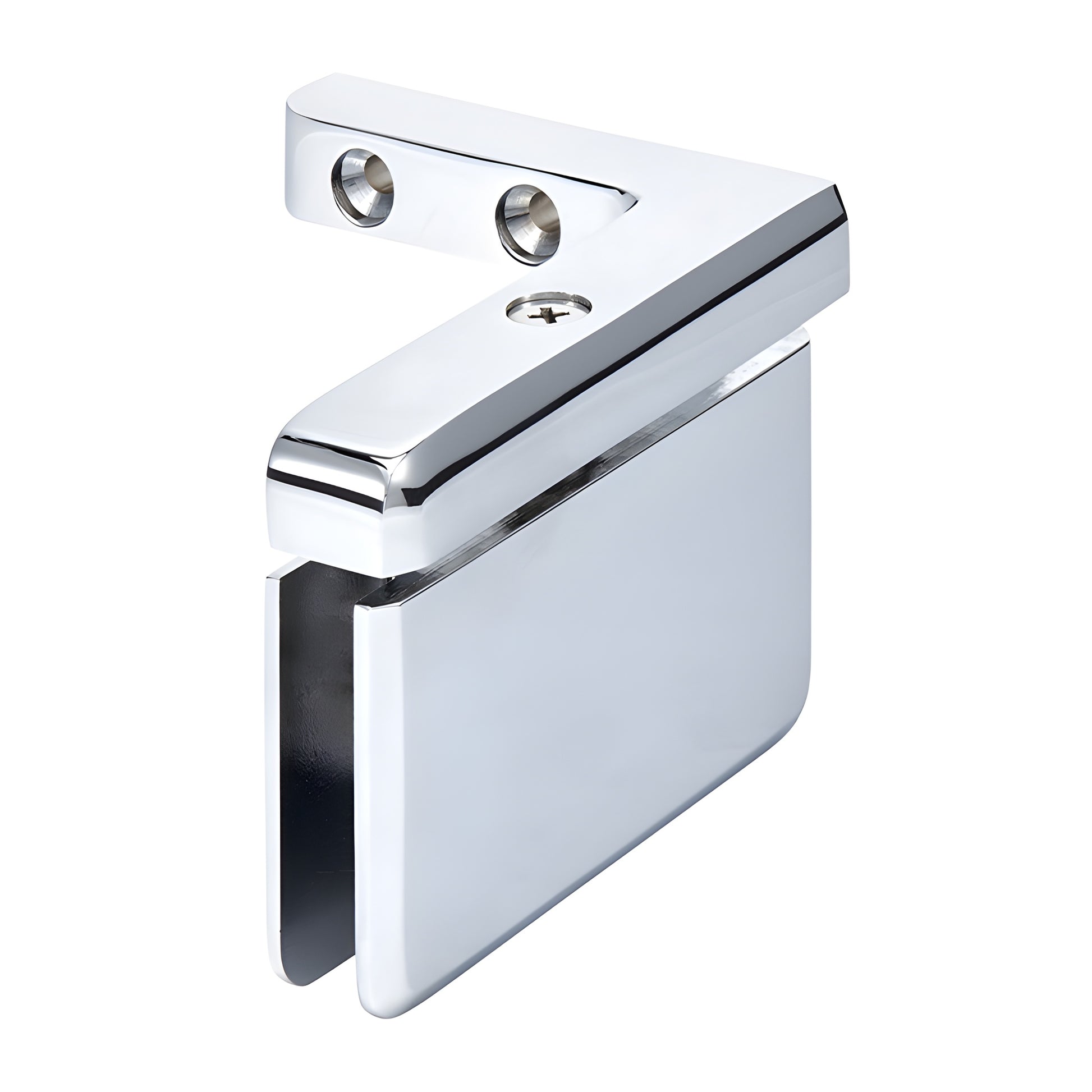

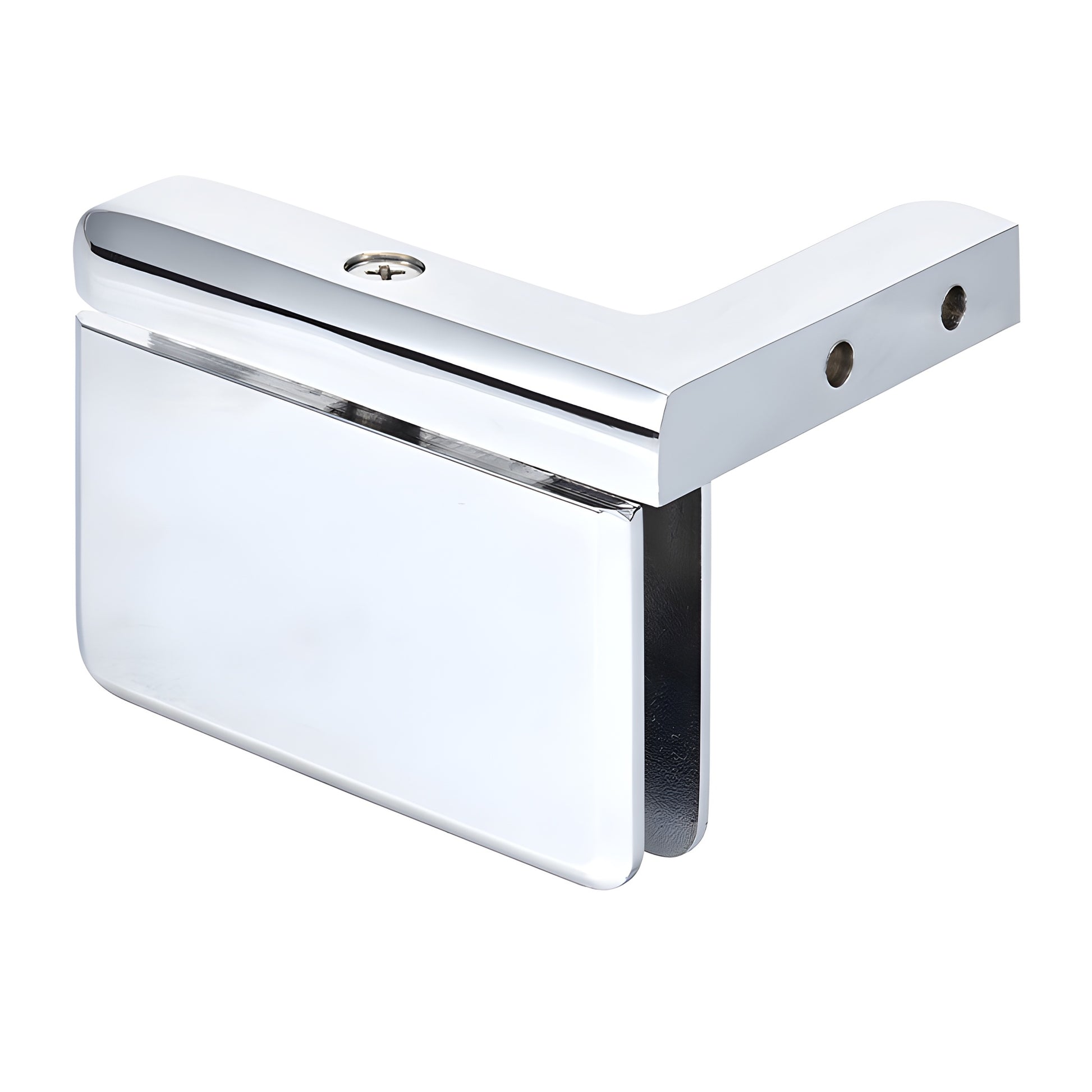

CRL Prima 05 Chrome Right-Hand Offset Mount Door Hinge

• Offset Bracket Wall Mount (Right-hand mount when viewed from outside of shower)
• Self-centering with optional 5° pivot pin set
• Available in several beautiful finishes; custom finishes available on request
• 3-year warranty
• Designed for monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass and offer versatile application options for shower doors. Pivot-style hinges carry most of the weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections. Prima Series hinges are self-centering with four springs for strong door retention. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets are available separately; pre-set 5° hinge models are also stocked. SKU: PPH05RCH.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Use to alter the door closing position by 5°. Pins can be inserted before or retrofitted after installation. Sold as a set (top and bottom). Not included with hinge purchase.

Performance using two hinges: For 5/16"–3/8" (8–10 mm) glass, the hinge system will support up to 100 lb (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: (PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patent No. 5,297,313

Custom finishes are available—contact the CRL Technical Sales Department for lead times and options.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may differ from other brands.
