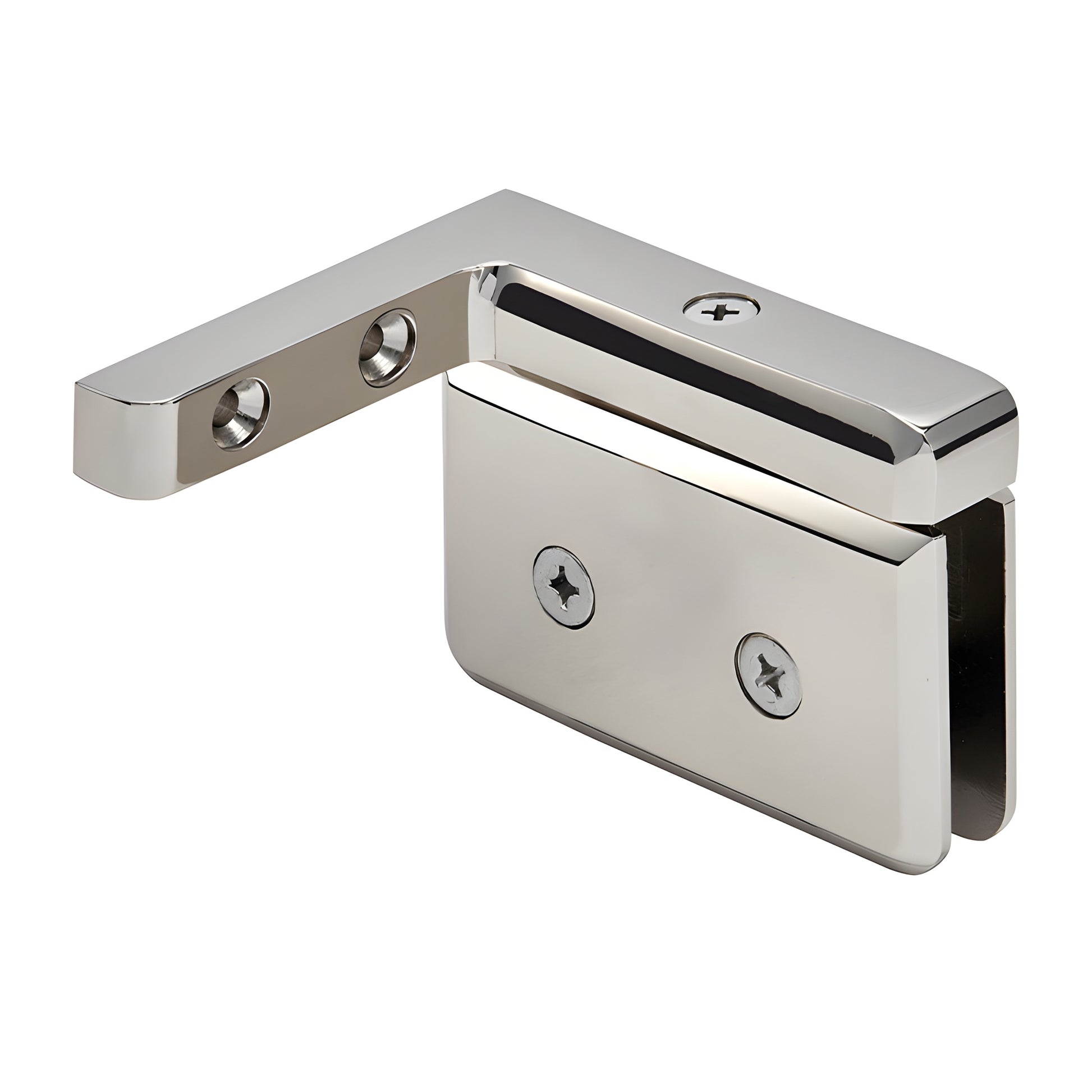

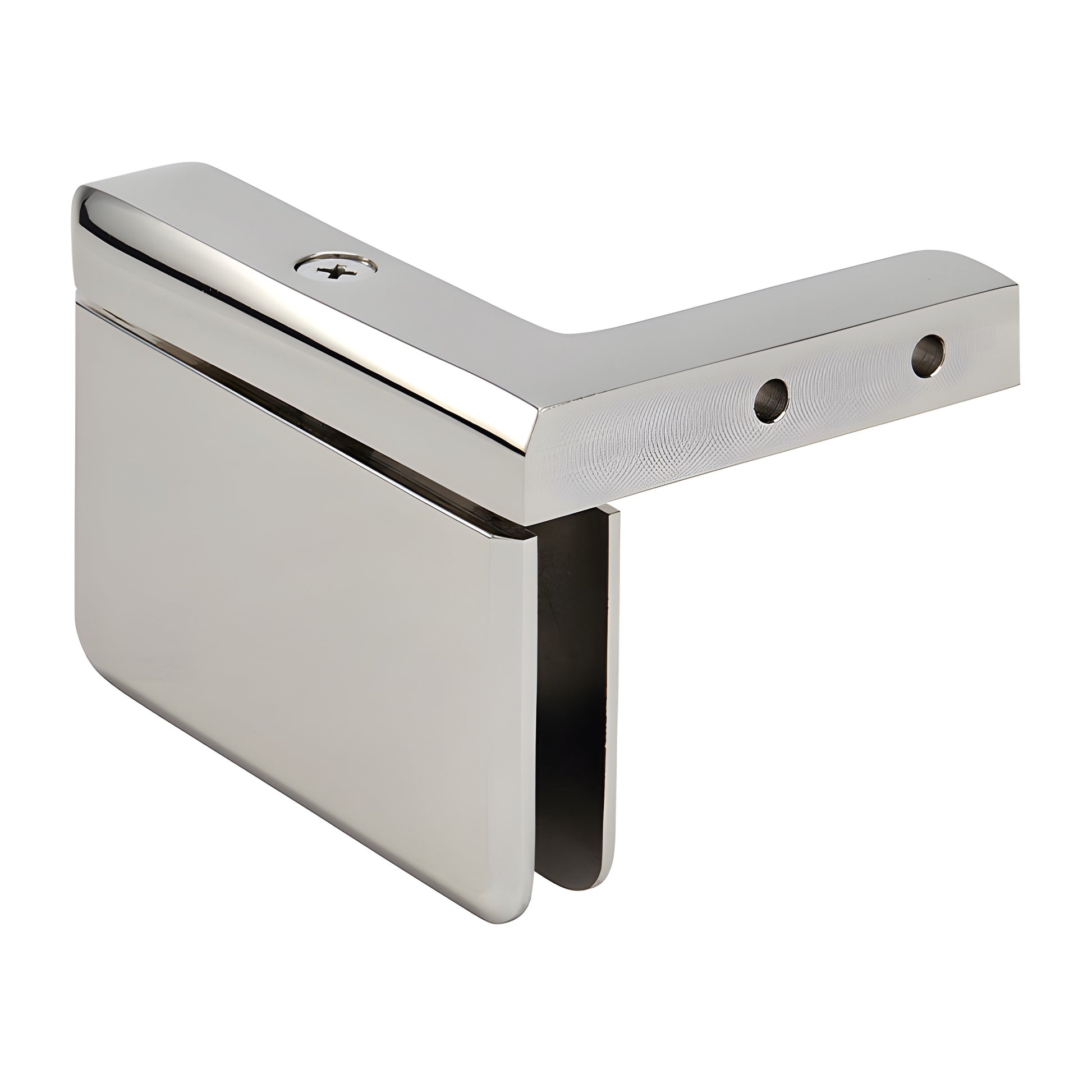

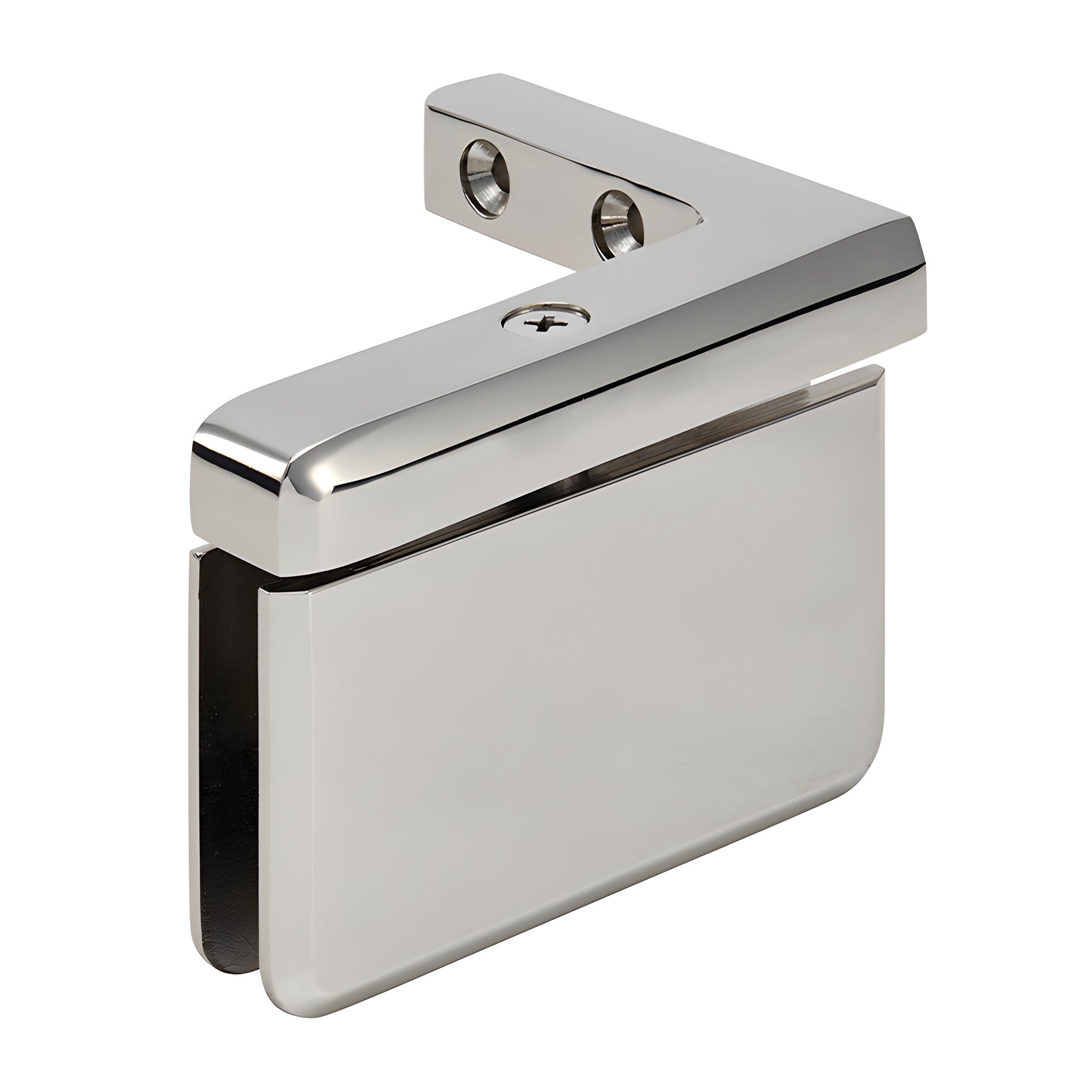

CRL Prima 05 Polished Nickel Right-Hand Offset Glass Door Hinge

• Offset Bracket Wall Mount (Right Hand Mount When Viewed From Outside of Shower)
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges — SKU PPH05RPN are engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass and offer versatile applications for frameless shower doors. These solid brass pivot hinges carry most of the door weight on the bottom, can be inset from the wall to clear towel bars and projections, and expose more glass thanks to a top-and-bottom mount design. The Prima Series is self-centering with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5° Pre-Set Pivot Pin Sets can be ordered separately; Pre-Set 5° hinge models are also available in stock.

Some models and compatibility notes: PPH01 adapts to the Deluxe Header System for partial-height enclosures; PPH06 is compatible only with the EZ-Adjust Header System and includes its adaptor.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Use these pre-set or retrofit pivot pins to alter the door closing position by 5°. Sold as a top-and-bottom set. Not included with hinge purchase.

Capacity Using Two Hinges: For 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount shows more glass and reduces required glass cut-outs versus standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge plus hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes available upon request — contact CRL Technical Sales for finish options and lead times.

Product Warning:
