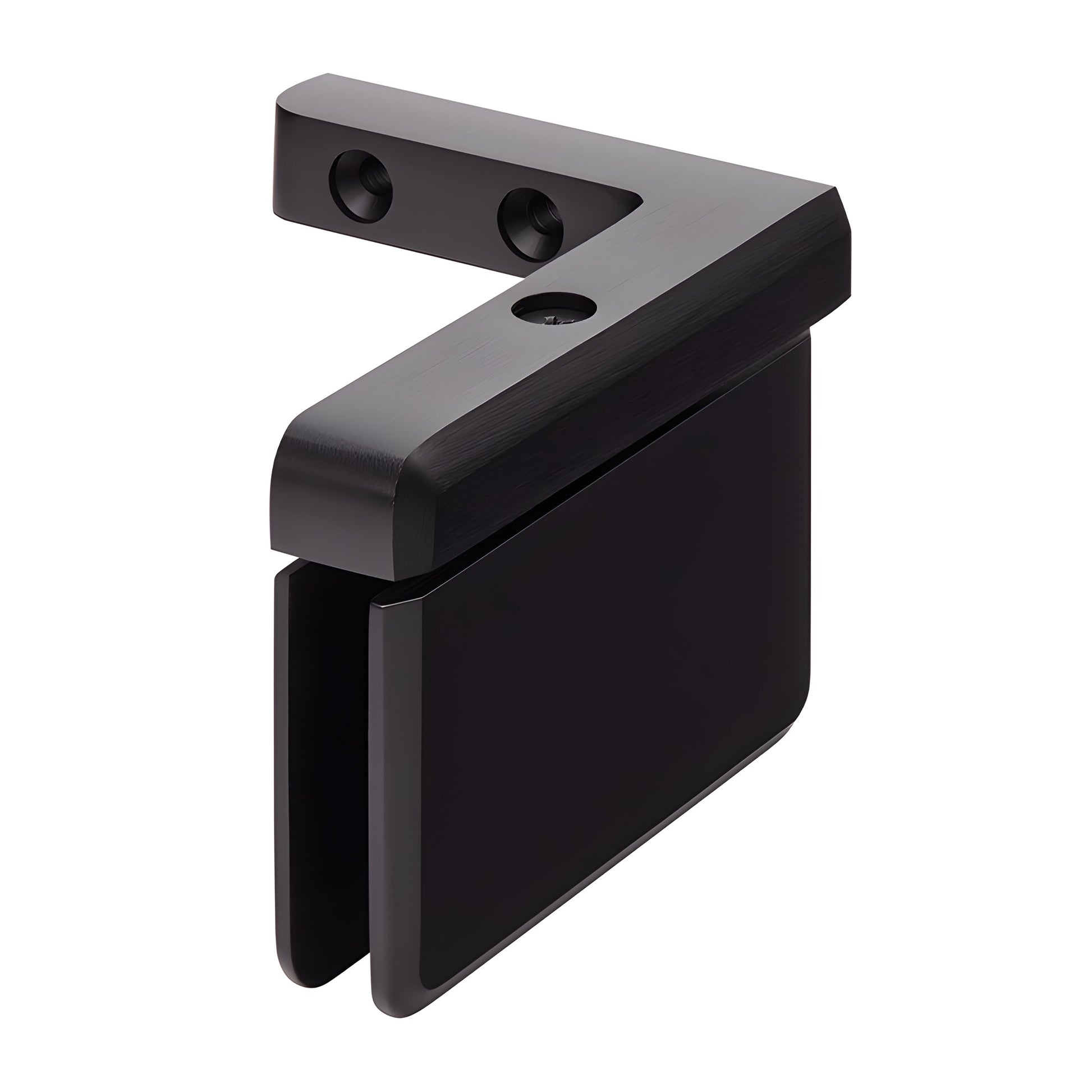

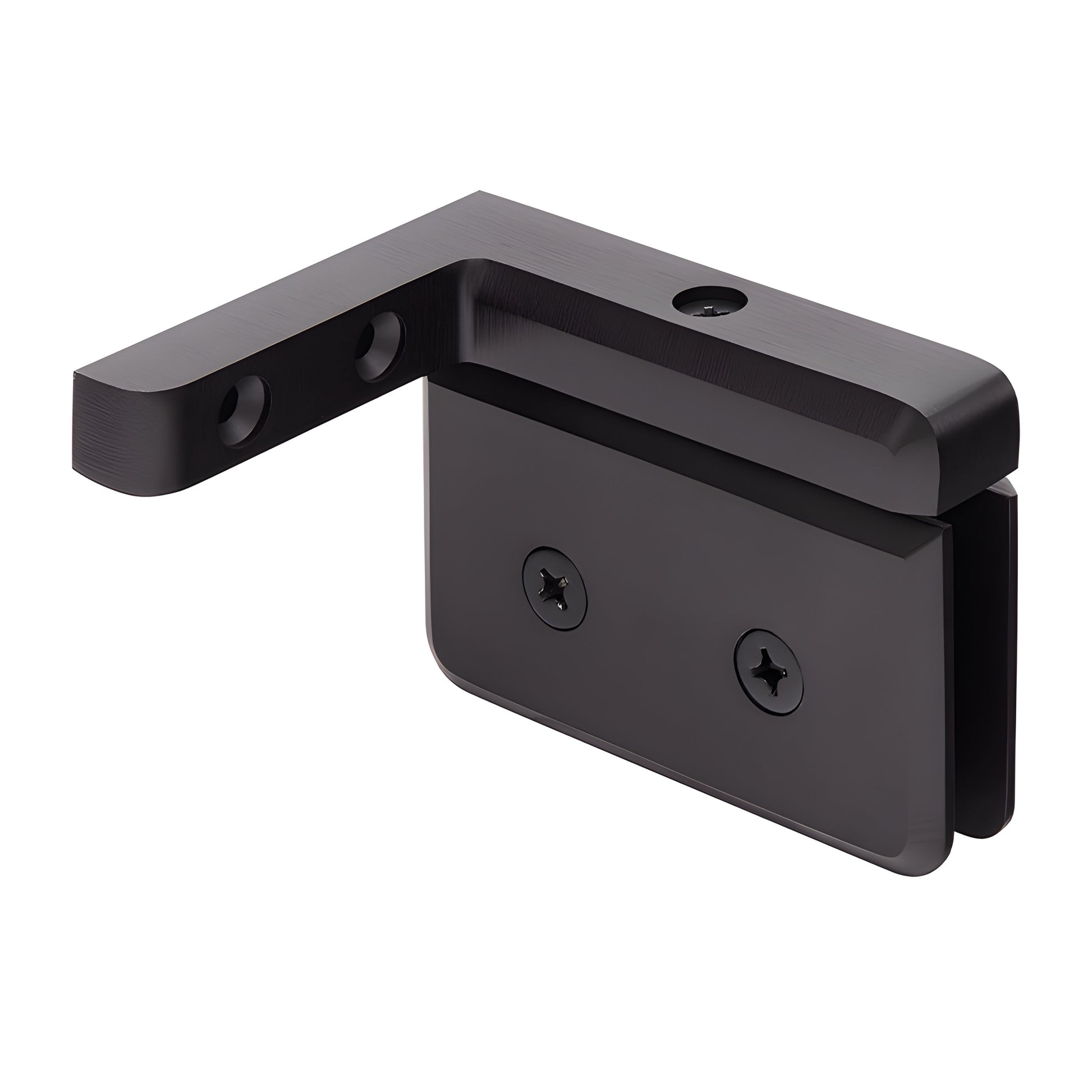

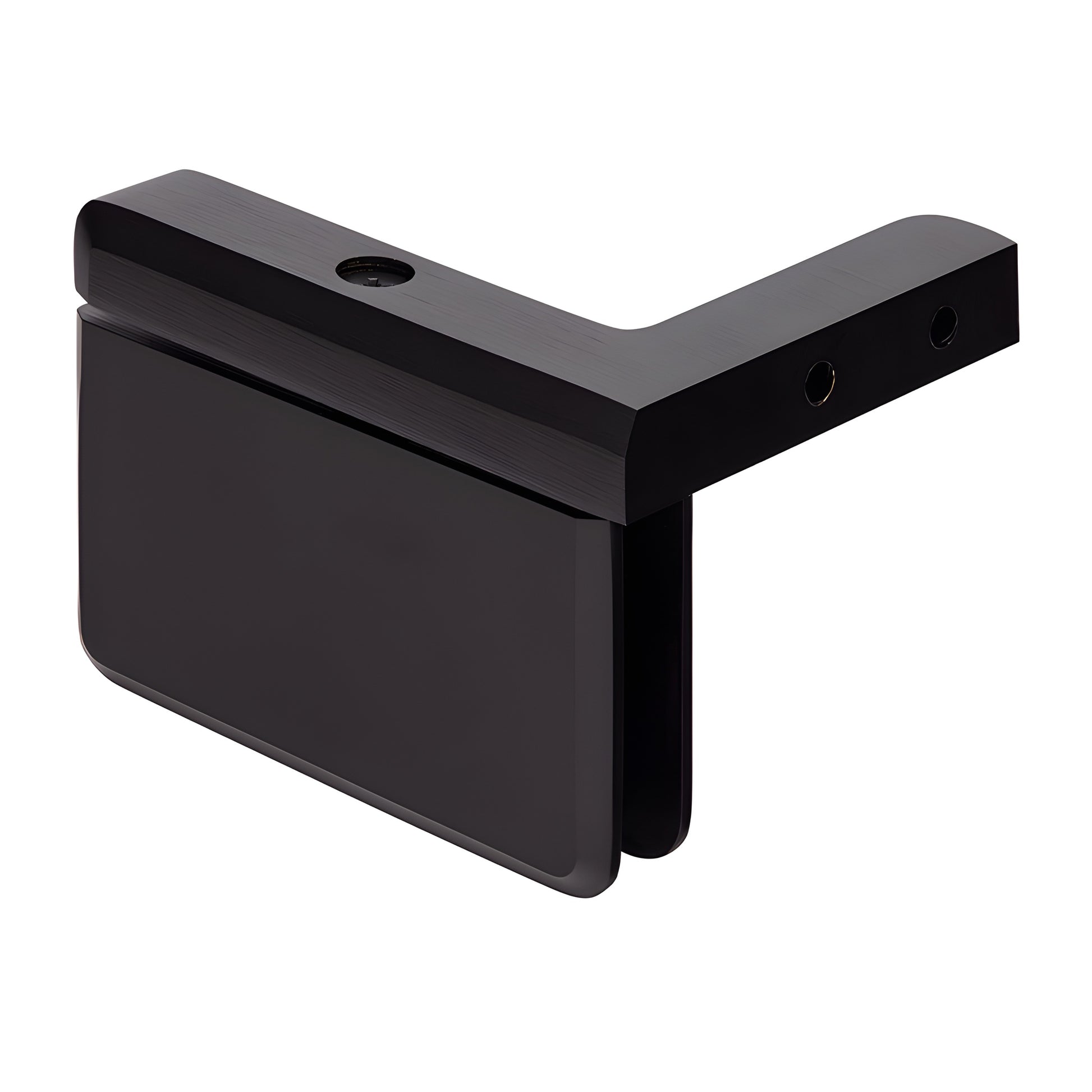

CRL Prima 05 Right-Hand Offset Mount Door Hinge Oil Rubbed Bronze

• Offset bracket wall mount — right-hand mount when viewed from outside the shower
• Self-centering pivot hinge with optional 5° pivot pin set
• Compatible with 5/16" to 3/8" (8–10 mm) monolithic tempered safety glass
• Available in several premium finishes; custom finishes available on request
• Solid brass construction for long-lasting corrosion resistance
• Full rotation hinge swing; self-centers within 15° of closed position
• Holds up to 100 lb (45 kg) with two hinges — maximum glass width 31" (787 mm)
• Includes gaskets, screws, and glass fabrication dimensions
• 3-year warranty
• U.S. Patent No. 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH05R0RB) are engineered for frameless shower enclosures and heavy-duty shower doors using 8–10 mm tempered safety glass. These offset bracket wall-mount pivot hinges carry the majority of the door weight at the bottom, allowing the door to be inset from the wall for clearance of towel bars and other projections — a practical long-tail benefit for remodels and space-constrained bathrooms. The Prima Series is self-centering with four springs for strong retention, and its top-and-bottom mount design shows more glass while reducing required glass cut-outs versus standard side-mount glass-to-glass hinges.

Optional 5° Pivot Pin Set: Add or retrofit a 5° pre-set pivot pin set (Cat. No. P1VP1N) to alter the door closing position by 5°. Sold as a set (top and bottom); not included with hinge purchase. Pre-set 5° hinge models also available from stock.

Compatibility & Applications: Use with monolithic tempered glass 5/16"–3/8" (8–10 mm). PPH01 adapts to the Deluxe Header System for partial-height enclosures. PPH06 is compatible only with the EZ-Adjust Header System and includes the required adapter.

Specifications:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering (when within 15° of closed)
Cut-Out Required: See model-specific notes (e.g., PPH135 and PPH07 require additional holes/cut-outs)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes and technical support are available — contact the CRL Technical Sales Department for finish options and ordering.
