CRL Brushed Nickel Double Wall-to-Glass Hinges
CRL Brushed Nickel Double Wall-to-Glass Hinges
Regular price
$106.82 CAD
Regular price
Sale price
$106.82 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH245
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description

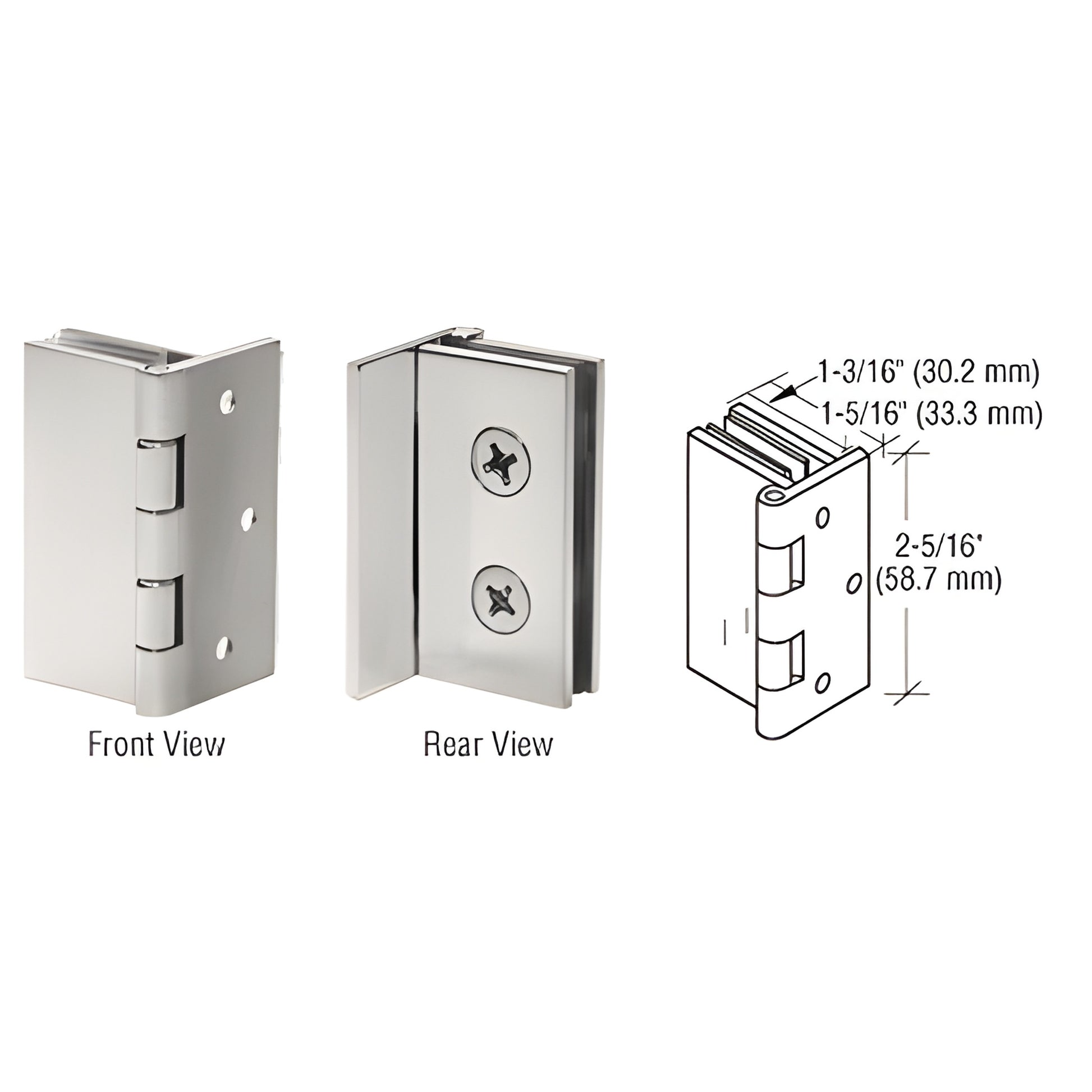

Finish/Color | Brushed Nickel |
Glazing Thickness | 1/4 in. To 5/16 in. (6mm To 8 mm) |
Height 2-5/16 in. | (58.7 mm) |
Material | Brass |
Maximum Door Width 22 in. | (558.8 mm) |
Pack Quantity | 2 |
Weight Capacity 30 lbs. | (13.6 kg) |
Width 1-5/16 in. | (33.3 mm) |
Overview
The CRL Brass Double Wall-to-Glass Hinges, designed for wall-mounted tempered glass applications, are ideal for glass thicknesses ranging from 1/4" to 5/16" (6 to 8 mm).
Each package contains two hinges made from durable forged brass, featuring a screw attachment and clear vinyl pad inserts to protect the glass.
Available in polished brass with a lacquered finish or chrome plated, these hinges require two 1/2" (12 mm) holes for easy mounting.
Ensure your glass door does not exceed a width of 22" (559 mm) or a weight of 30 lbs.
(13.6 kg) for optimal performance.
Please note that shipping weights are approximate, and images may vary slightly in color due to monitor settings.
For more details, contact CRL Customer Service before ordering.
Each package contains two hinges made from durable forged brass, featuring a screw attachment and clear vinyl pad inserts to protect the glass.
Available in polished brass with a lacquered finish or chrome plated, these hinges require two 1/2" (12 mm) holes for easy mounting.
Ensure your glass door does not exceed a width of 22" (559 mm) or a weight of 30 lbs.
(13.6 kg) for optimal performance.
Please note that shipping weights are approximate, and images may vary slightly in color due to monitor settings.
For more details, contact CRL Customer Service before ordering.
