CRL Brushed Nickel Large Wall Mount Set Screw Hinge
CRL Brushed Nickel Large Wall Mount Set Screw Hinge
Regular price
$91.46 CAD
Regular price
Sale price
$91.46 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH169
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

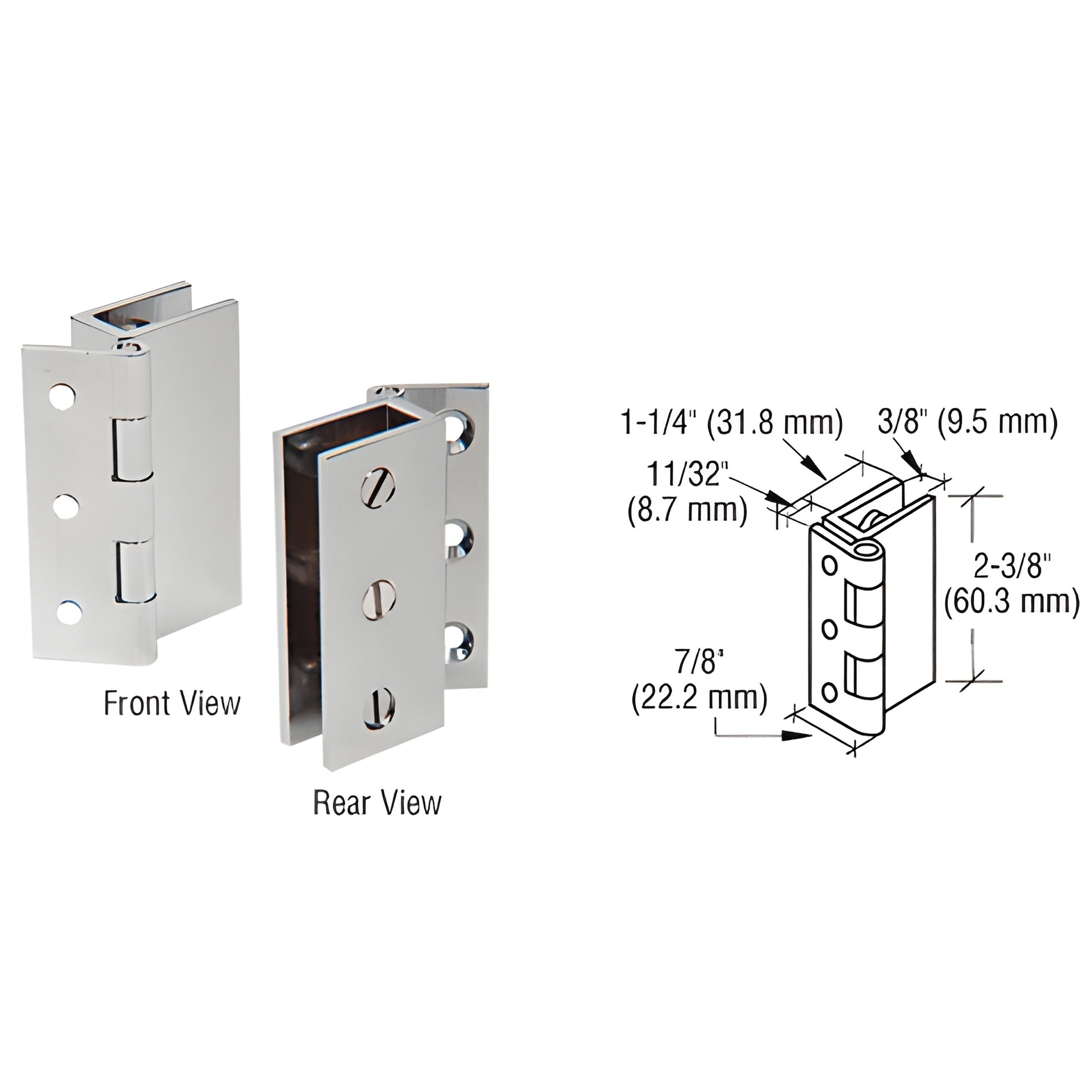

Description
| Finish/Color | Brushed Nickel |
| Glazing Thickness | 3/16 in. To 5/16 in. (5 mm To 8 mm) |
| Height 2-3/8 in. | (60.3 mm) |
| Material | Brass |
| Maximum Door Width 18 in. | (457.2 mm) |
| Pack Quantity | 2 |
| Weight Capacity 20 lbs. | (9.1 kg) |
| Width 1-1/4 in. | (31.8 mm) |
Overview
The CRL Large Wall Mount Set Screw Hinges offer unmatched design flexibility, accommodating 3/16" to 5/16" (5 to 8 mm) tempered glass for a sleek, thick glass appearance.
These hinges are easy to install with no holes or cut-outs required, and they secure the glass using three plastic-tipped set screws, ensuring a smooth operation.
Each package includes two hinges, suitable for doors up to 18" (457 mm) wide and weighing no more than 20 lbs.
(9 kg), complete with matching finish wood screws for a seamless look.
These hinges are easy to install with no holes or cut-outs required, and they secure the glass using three plastic-tipped set screws, ensuring a smooth operation.
Each package includes two hinges, suitable for doors up to 18" (457 mm) wide and weighing no more than 20 lbs.
(9 kg), complete with matching finish wood screws for a seamless look.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
