CRL Brushed Nickel Long Leg Set Screw Clamp for 1/4" to 5/16" Glass
CRL Brushed Nickel Long Leg Set Screw Clamp for 1/4" to 5/16" Glass
Regular price
$40.89 CAD
Regular price
Sale price
$40.89 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH51
Shipping Weight: 2.88 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.88 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

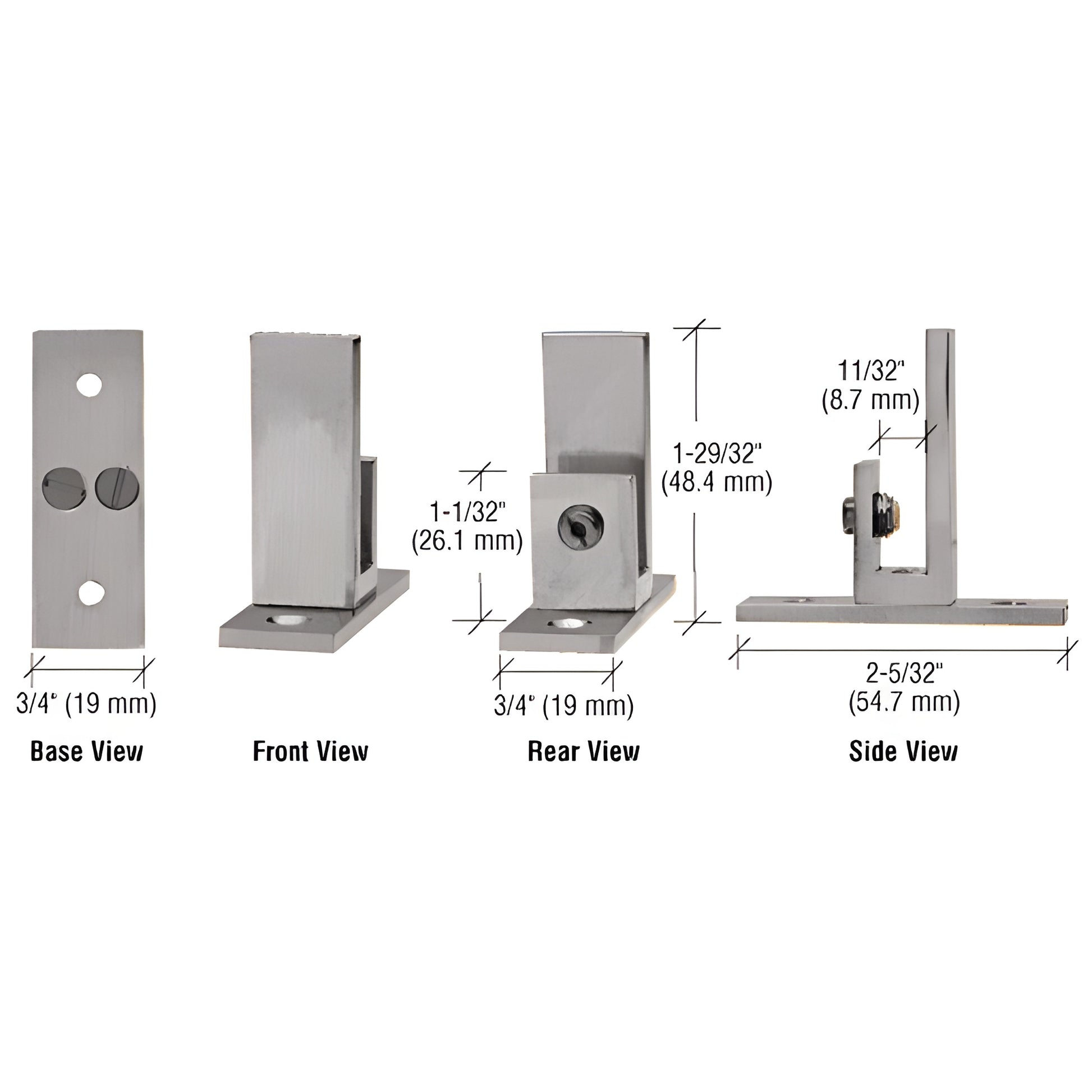

Description
| Finish/Color | Brushed Nickel |
| Glazing Thickness | 1/4 in. To 5/16 in. (6mm To 8 mm) |
| Height - Overall Blank Side 1-29/32 in. | (48.4 mm) |
| Height - Overall Set Screw Side 1-1/32 in. | (26.2 mm) |
| Length - Base Plate 2-5/32 in. | (54.8 mm) |
| Length - Clamp 3/4 in. | (19.1 mm) |
| Material | Brass |
| Thickness - Base Plate 1/8 in. | (3.2 mm) |
| Width - Base Plate 3/4 in. | (19.1 mm) |
| Width - Clamp 3/4 in. | (19.1 mm) |
Overview
The CRL Long Leg Set Screw Glass Clamps are the perfect solution for securely attaching shelves to walls, thanks to their extra-long legs that provide enhanced support.
Ideal for 1/4" to 5/16" (6 to 8 mm) glass, these versatile clamps are crafted from solid brass and can be utilized in various glass applications, including flush glazing and railing systems.
Designed to solve common glass mounting problems, the clamps feature a plastic-tipped set screw for securing the glass and come with two wood screws for easy installation.
Note: For optimal support, it's recommended that shelf depth does not exceed 5" (127 mm) and that clamps are installed into wall studs or a wood substrate.
One clamp is included per pack.
For accurate shipping costs or further inquiries, please contact CRL Customer Service.
Ideal for 1/4" to 5/16" (6 to 8 mm) glass, these versatile clamps are crafted from solid brass and can be utilized in various glass applications, including flush glazing and railing systems.
Designed to solve common glass mounting problems, the clamps feature a plastic-tipped set screw for securing the glass and come with two wood screws for easy installation.
Note: For optimal support, it's recommended that shelf depth does not exceed 5" (127 mm) and that clamps are installed into wall studs or a wood substrate.
One clamp is included per pack.
For accurate shipping costs or further inquiries, please contact CRL Customer Service.
Specifications
Installation Instructions
CAD Drawings - dwg
