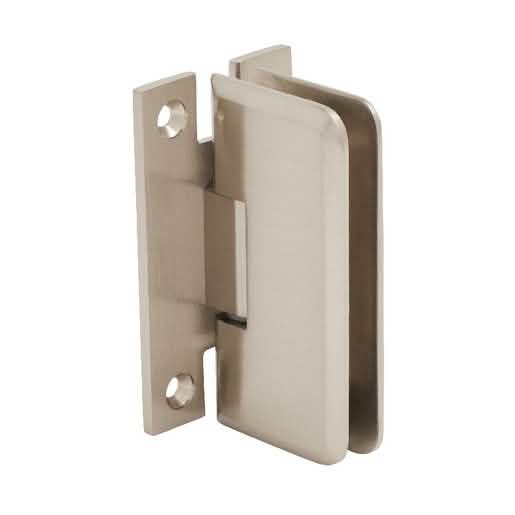

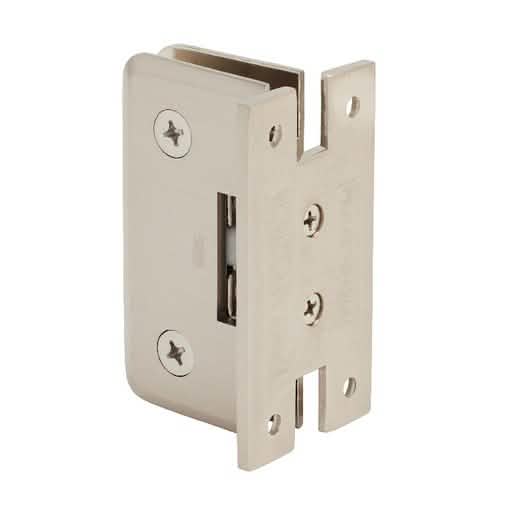

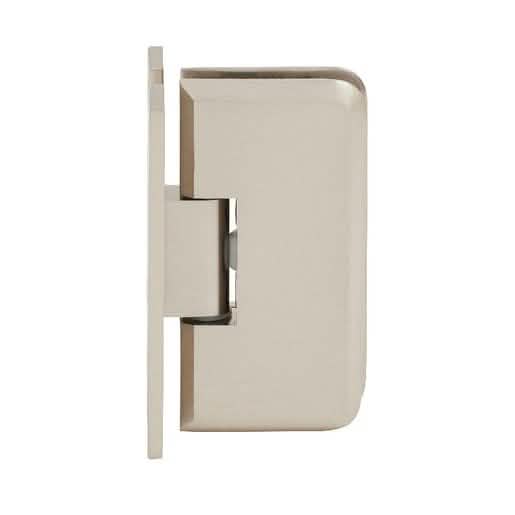

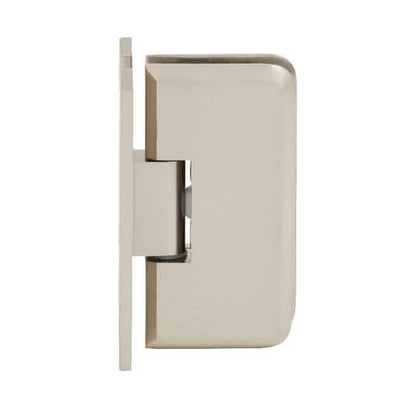

CRL Brushed Nickel Petite 037 Series Wall Mount 'H' Back Plate Hinge
CRL Brushed Nickel Petite 037 Series Wall Mount 'H' Back Plate Hinge
Regular price
$118.40 CAD
Regular price
Sale price
$118.40 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PET037BN
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | No |
| Back | Plate 'H' |
| Edge | Profile Beveled |
| Finish/Color | Brushed Nickel |
| Glazing Thickness | 1/4 in. To 5/16 in. (6 mm To 8 mm) |

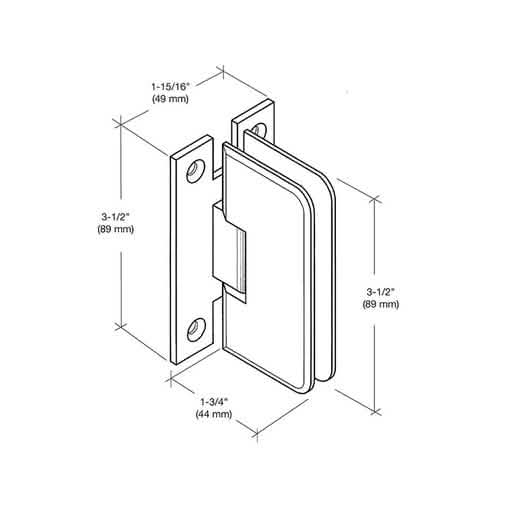

| Height 3-1/2 in. | (89 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges 55 lbs. | (24.9 kg) |
| Maximum Door Weight - 3 Hinges 82 lbs. | (37.2 kg) |
| Maximum Door Width - | 2 Hinges 31 |
| Maximum Door Width - | 3 Hinges 34 |
| Mounting | Type Wall Mount |
| Series | Petite |
| Width 1-3/4 in. | (44 mm) |
Overview
The CRL Petite Series offers a wide range of high-quality hinges designed for frameless shower doors using 1/4" to 5/16" tempered safety glass.
These hinges provide design flexibility and come in several beautiful finishes, backed by a 3-year warranty.
The series includes the PET044 Wall Mount Flush Back Plate Hinge for a clean exterior, the PET181 Glass-to-Glass Hinge for outward door swings, and the PET182 Glass-to-Glass Hinge for inward swings.
With 25% thicker plates for enhanced durability, these hinges ensure precise closing to zero degrees, supporting up to 82 lbs with proper installation.
Custom finishes are available upon request, and hinges are specifically designed for residential or hotel use.
For inquiries, contact the CRL Technical Sales Shower Door Department.
These hinges provide design flexibility and come in several beautiful finishes, backed by a 3-year warranty.
The series includes the PET044 Wall Mount Flush Back Plate Hinge for a clean exterior, the PET181 Glass-to-Glass Hinge for outward door swings, and the PET182 Glass-to-Glass Hinge for inward swings.
With 25% thicker plates for enhanced durability, these hinges ensure precise closing to zero degrees, supporting up to 82 lbs with proper installation.
Custom finishes are available upon request, and hinges are specifically designed for residential or hotel use.
For inquiries, contact the CRL Technical Sales Shower Door Department.
Specifications
Brochures & Literature
Quote Request Forms
Templates
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
