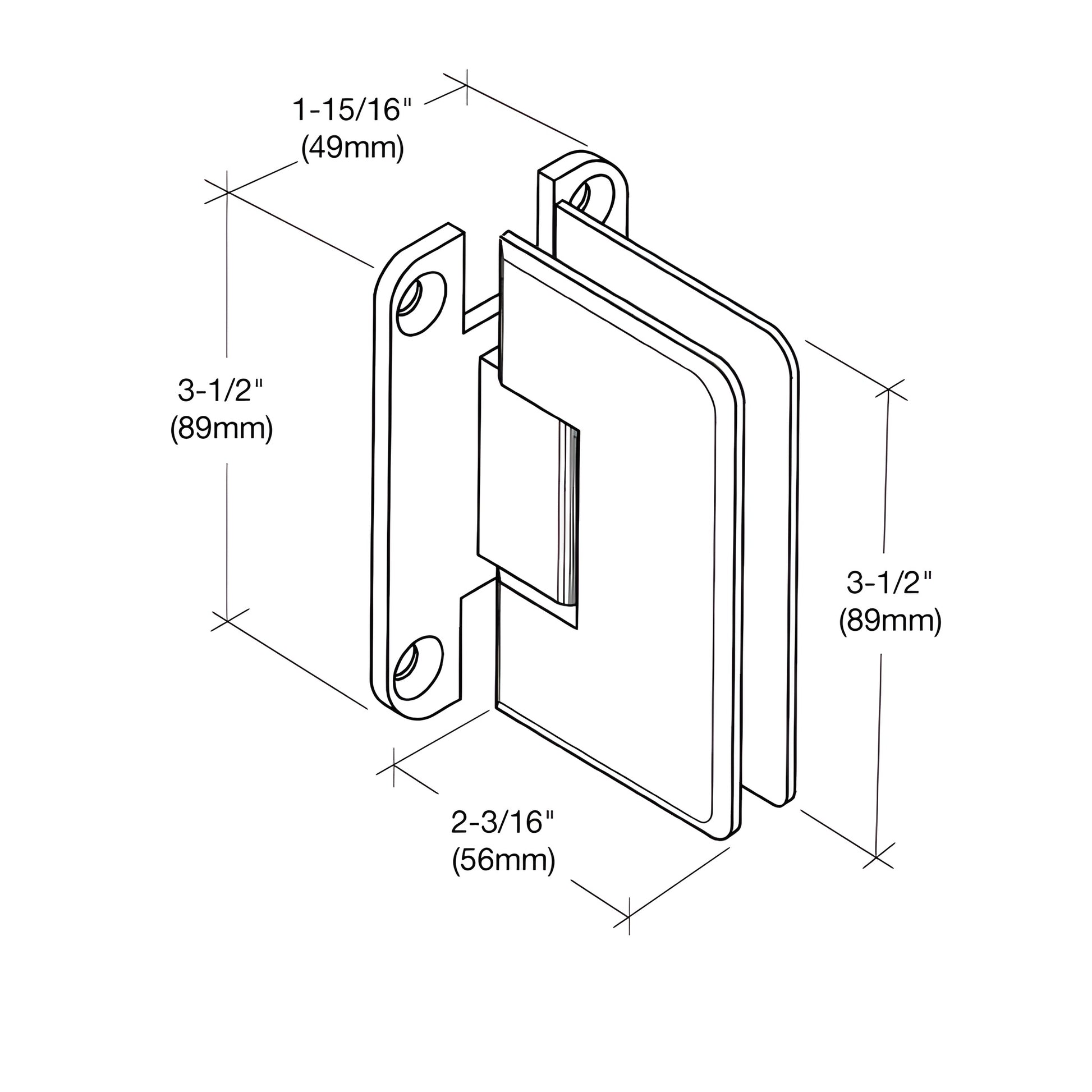

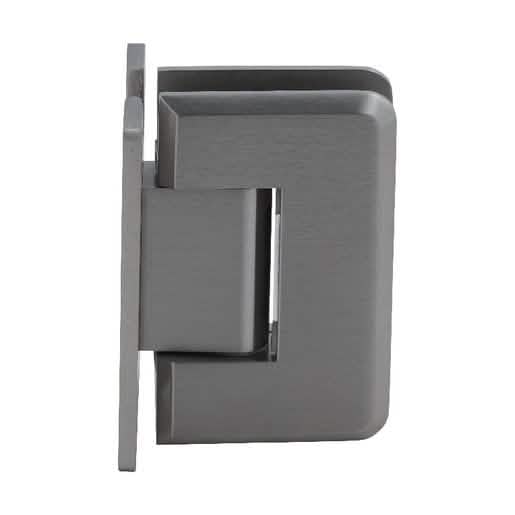

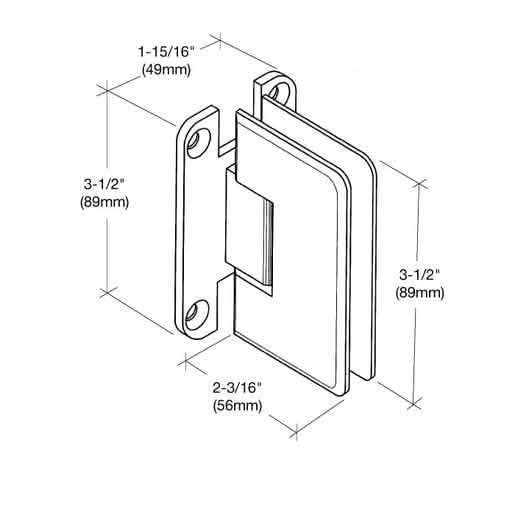

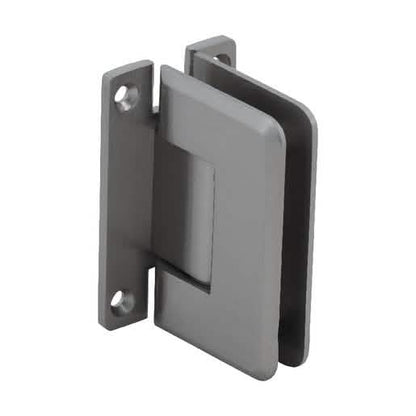

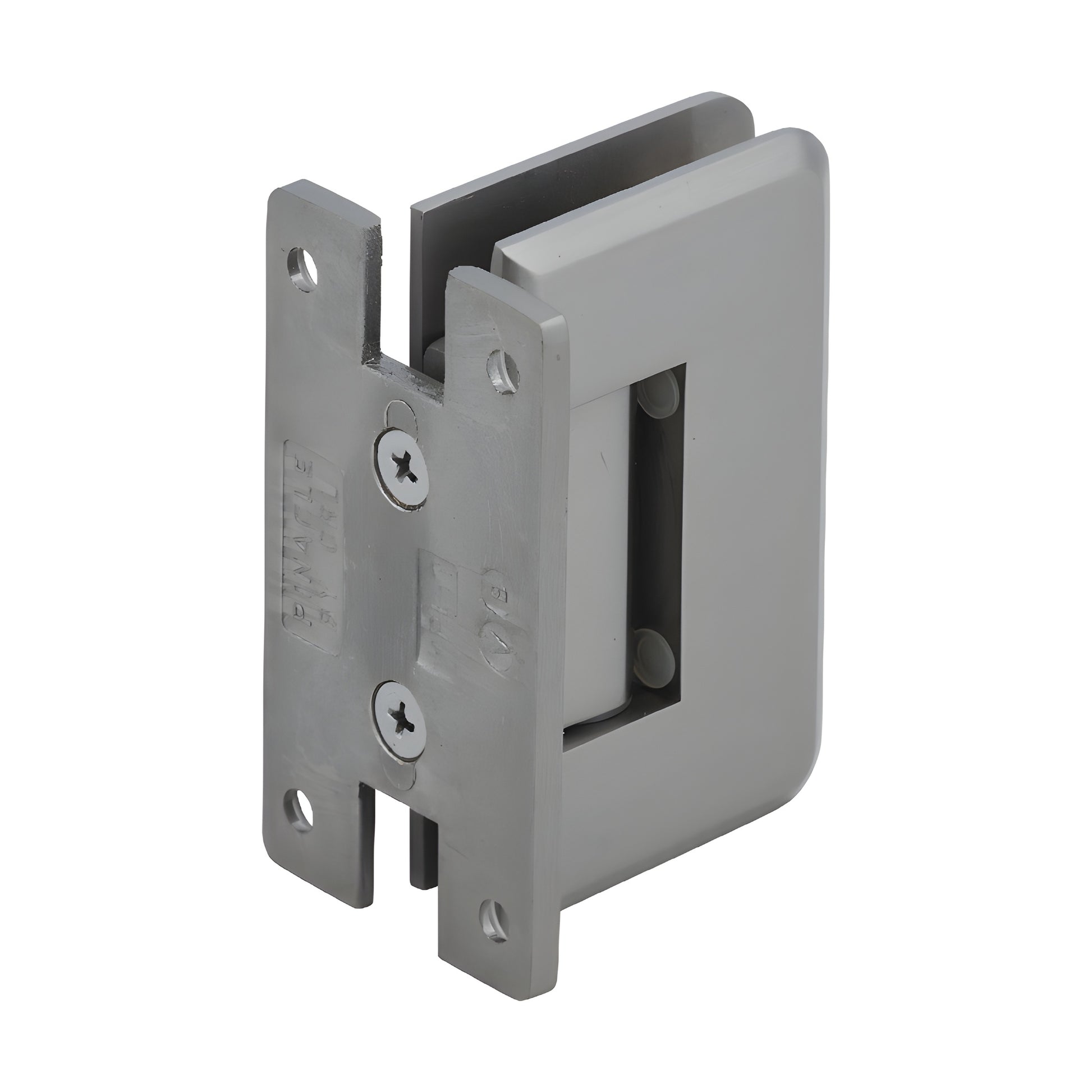

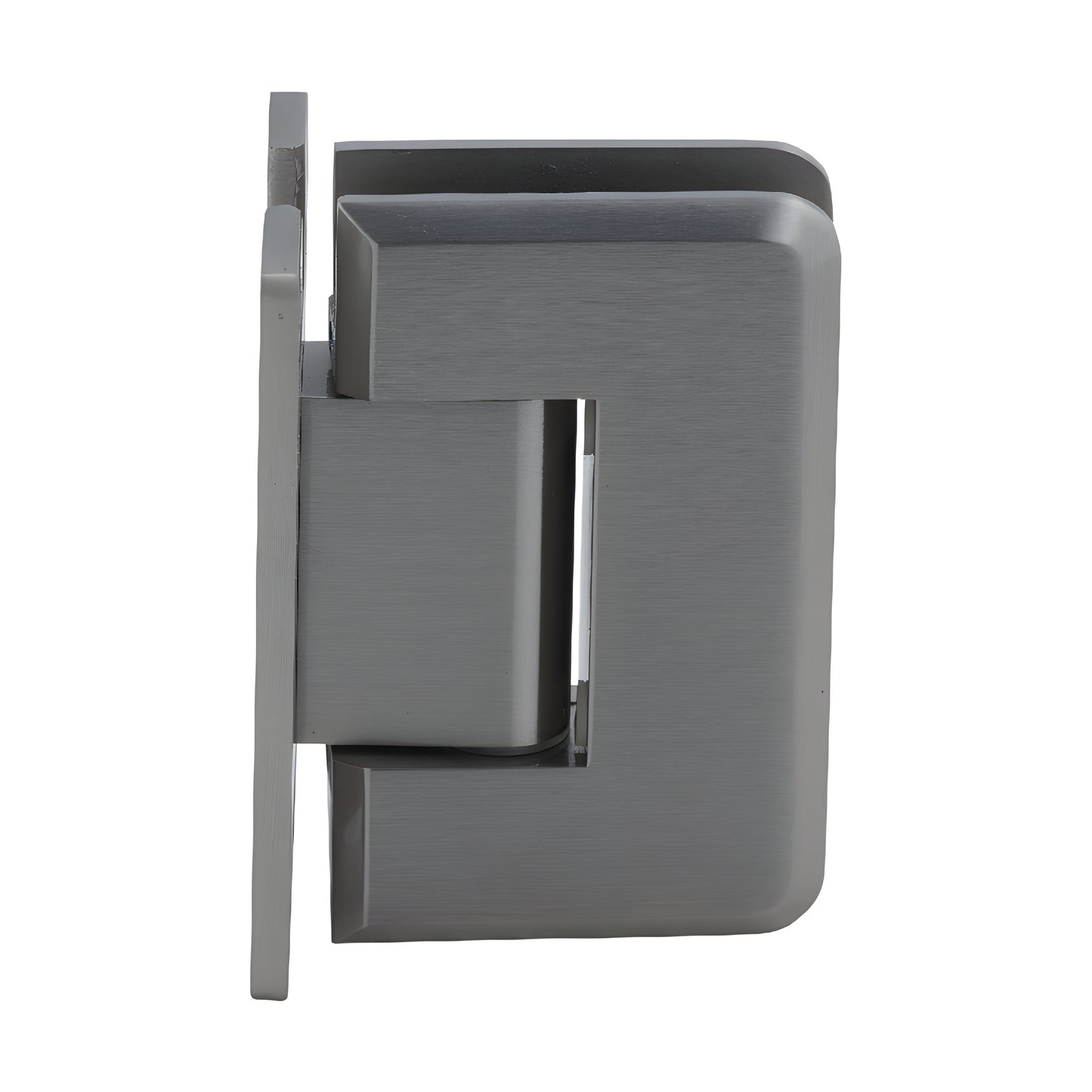

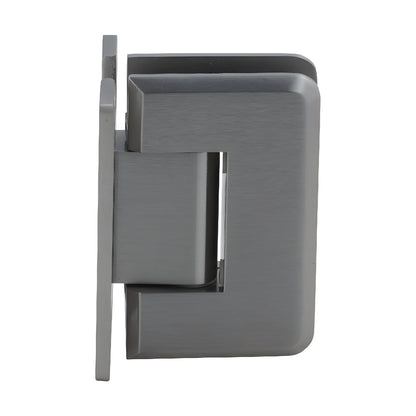

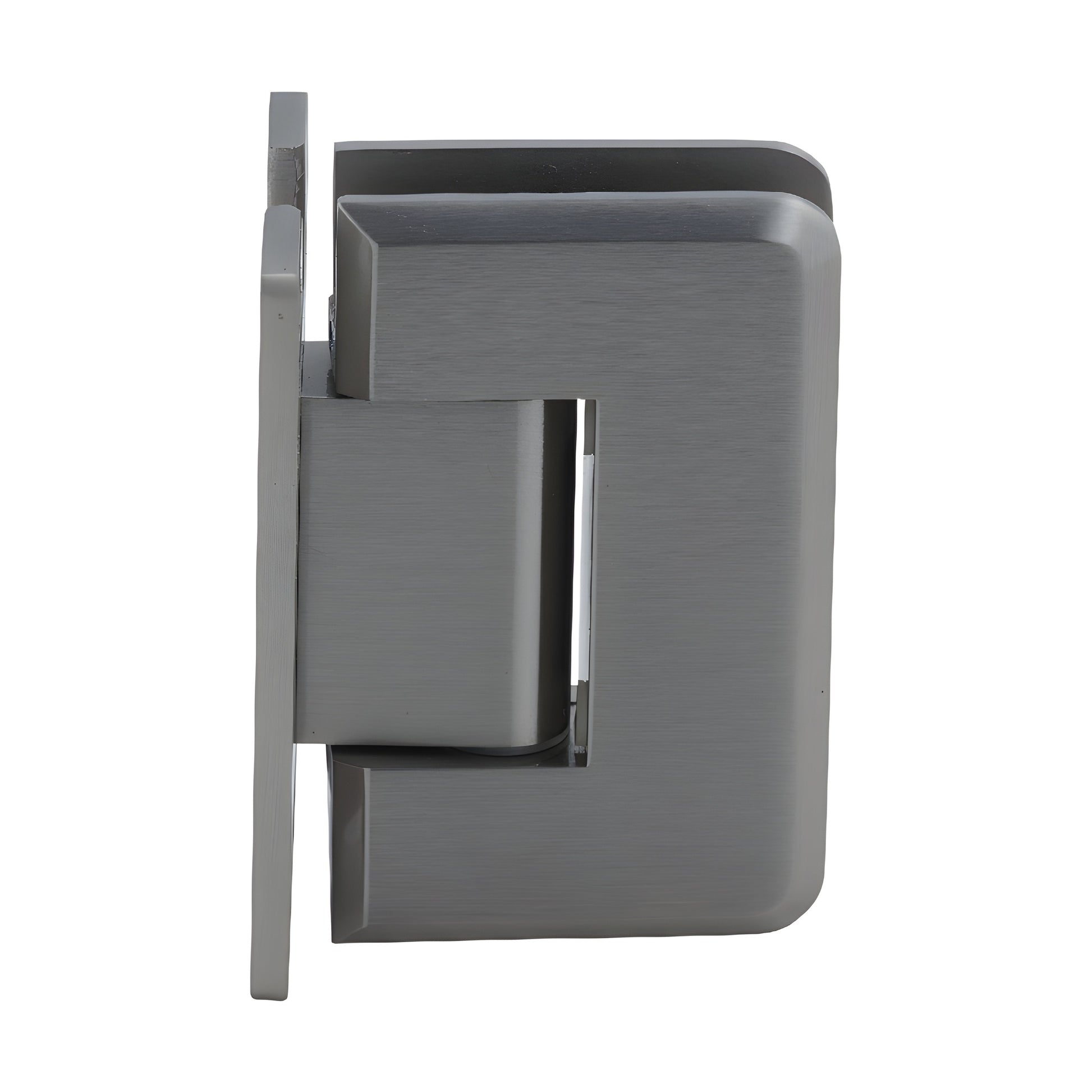

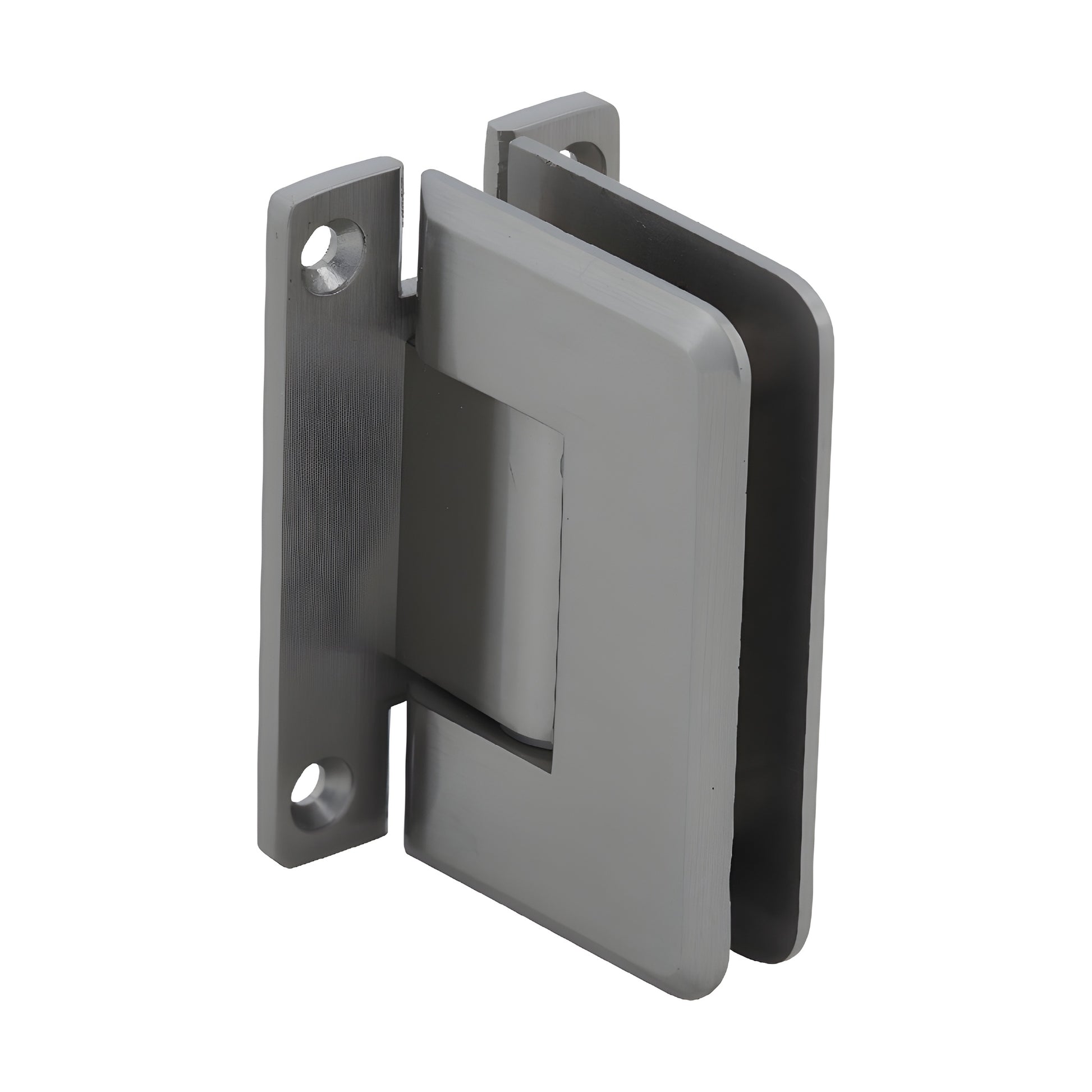

CRL Pinnacle 537 5° Brushed Nickel Wall-Mount Shower Hinge - Pre-Set

• Self-centering hinge with reversible 5° pivot pin
• Available in several high-quality finishes
• Three-year warranty
• 5° pre-set model (factory set for tighter closure into shower interior)
• For use with monolithic tempered glass

The CRL Pinnacle Hinge (SKU: P1N537BN) is a premium glass shower door hinge designed for sleek, modern frameless showers. Similar to the Geneva Series but with radius corners and beveled edges, Pinnacle offers a refined appearance while delivering reliable performance. Engineered for 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass, this solid brass shower hinge features stainless steel plunger tips, pins, and springs for long service life and consistent, self-centering door closure within 15° of the closed position. The reversible 5° pivot pin provides a tighter 5° closure into the shower interior and is reversible to the standard 90° setting. Long-tail keywords: glass shower door hinge, solid brass shower hinge for 8mm glass, 5 degree pre-set pivot pin hinge.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship factory-set to 85° for a 5° tighter closure. The pin rotates (do not flip) to switch settings.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard 5° adjustment does not achieve the desired closing position.

RATINGS:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (0°) or 5° Pre-Set Model for tighter closure into shower interior. Available as wall-mount hinges and 180° glass-to-glass hinges.
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes:
