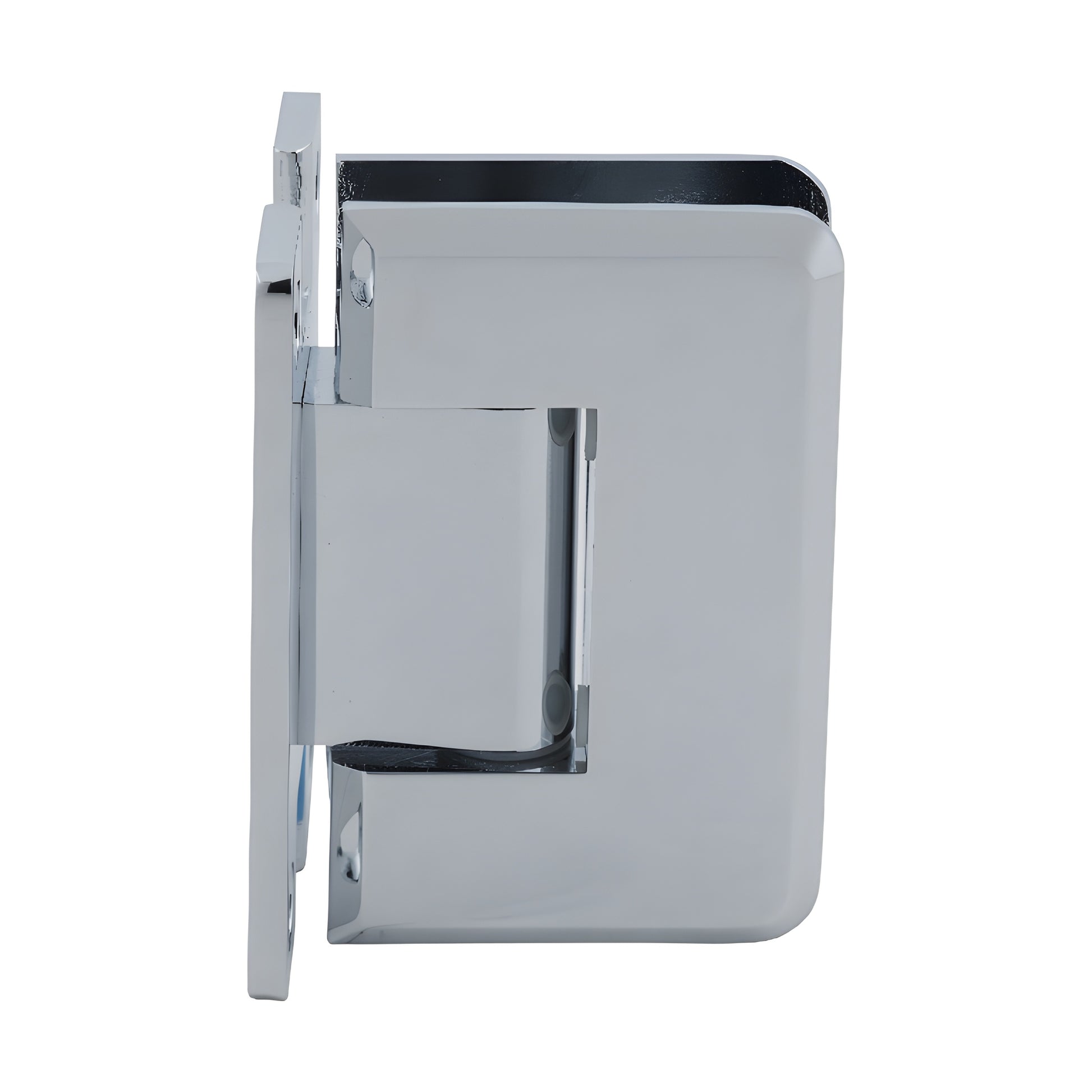

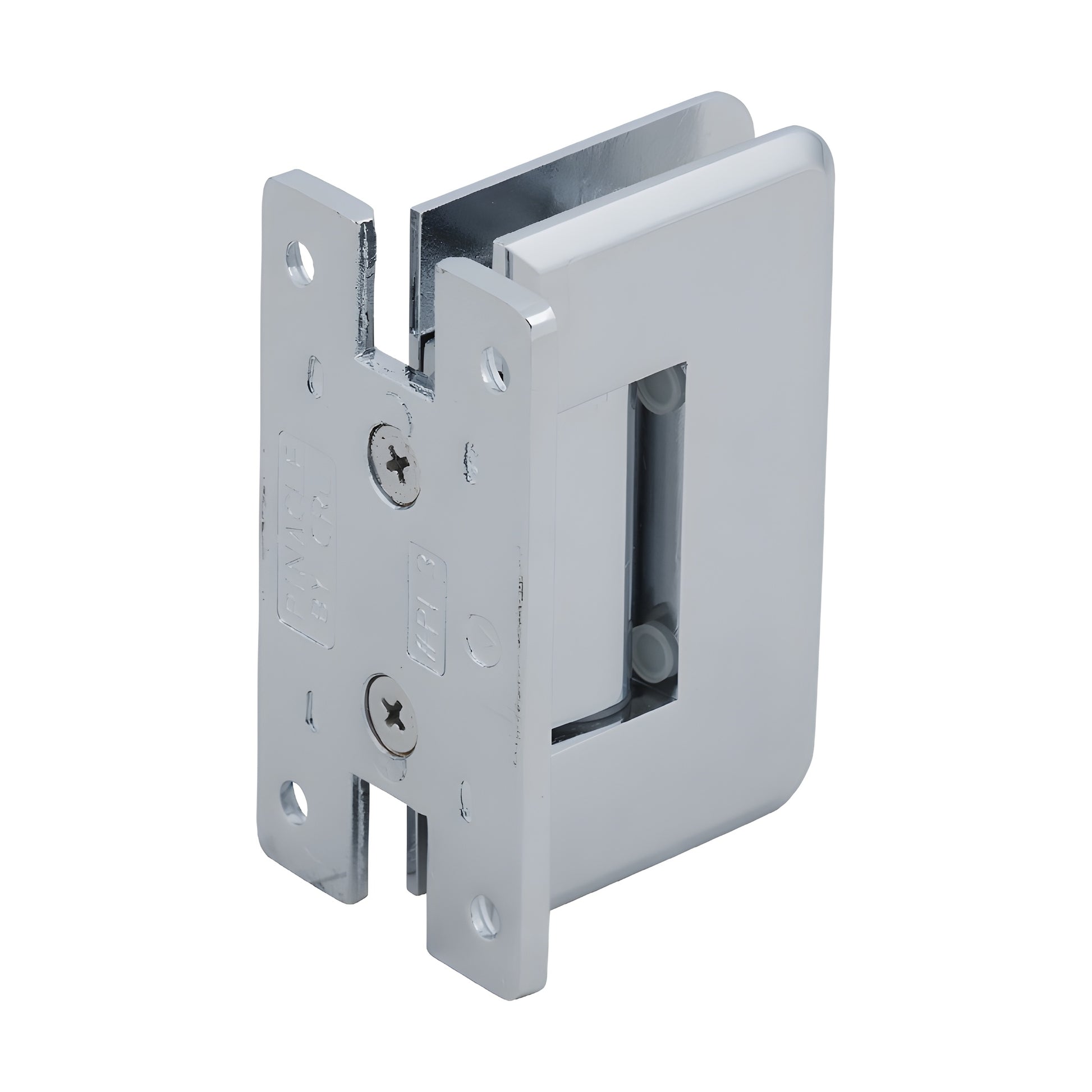

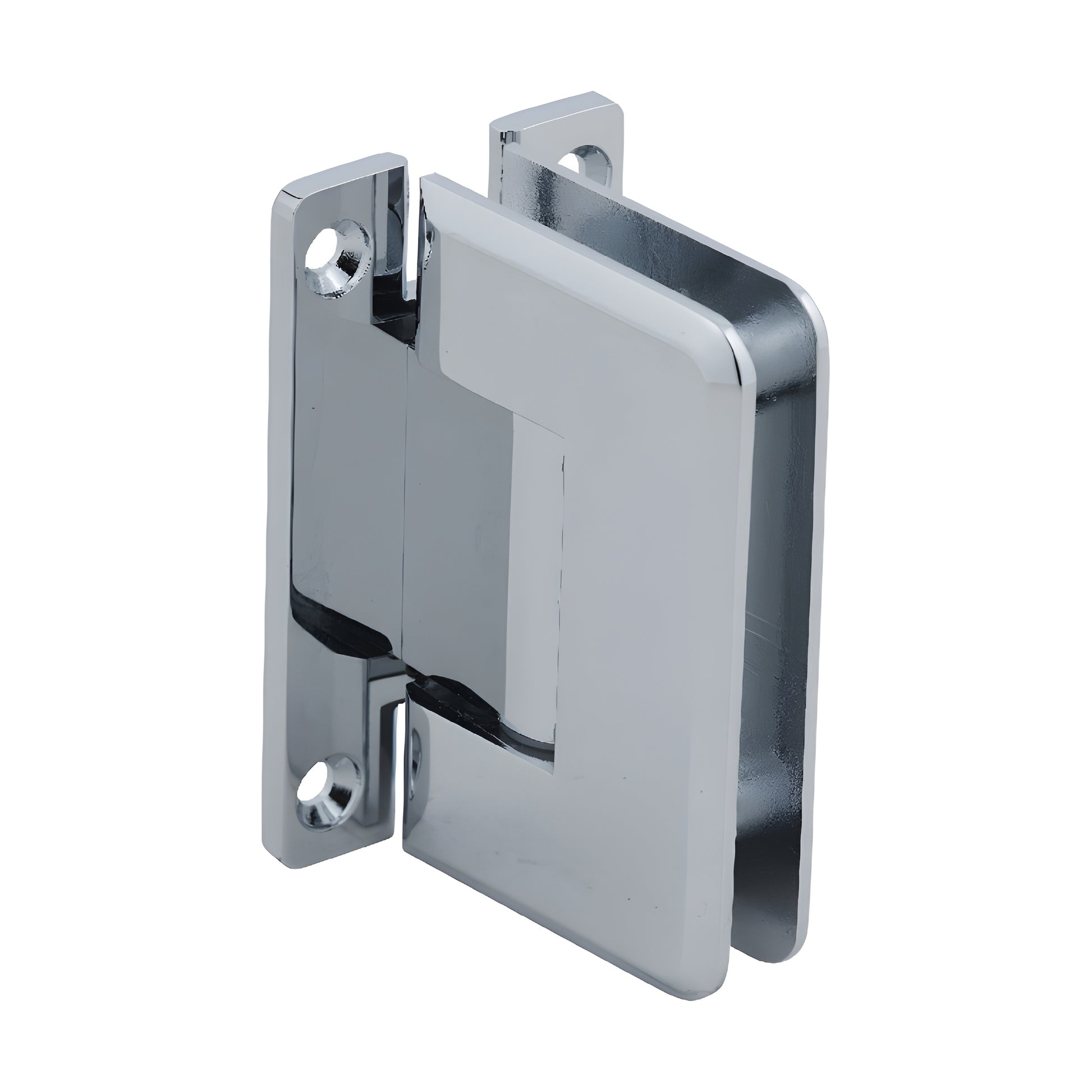

CRL Pinnacle 537 5° H Back Shower Door Hinge - Polished Chrome

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• 5 Degree Pre-Set Model (Factory Set for 5° tighter closure into shower interior)
• Use Monolithic Tempered Glass

The CRL Pinnacle Hinge (SKU: P1N537CH) is a solid-brass shower hinge engineered for reliable door closure and long service life. Compared with the Geneva Series, Pinnacle adds radius corners and beveled edges for a sleek, modern appearance. Designed for 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass, these hinges feature stainless steel plunger tips, pins, and springs and are self-centering within 15° of the closed position.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship with the 85° side active (5° tighter closure). The pin can be rotated to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment is insufficient.

LOAD CAPACITY & HINGE COUNT:

Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lb (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lb (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Available as Wall Mount Hinges and 180° Glass-to-Glass Hinge; choose Standard (0°) or 5° Pre-Set for tighter shower closure
Construction: Solid Brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

Replacement Hardware:
