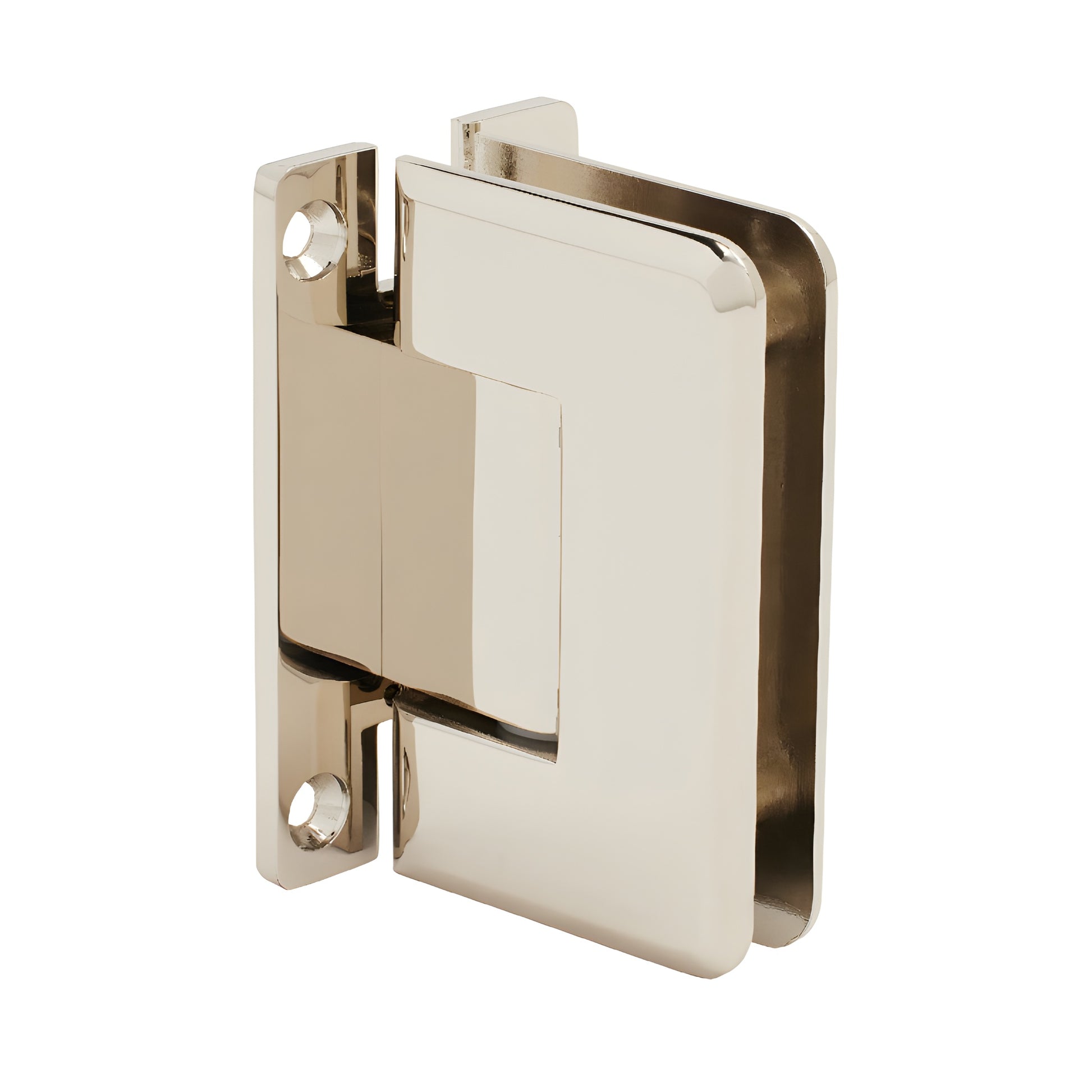

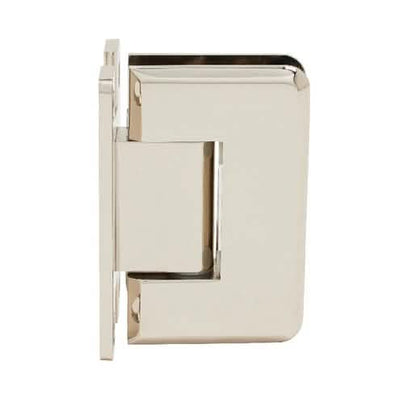

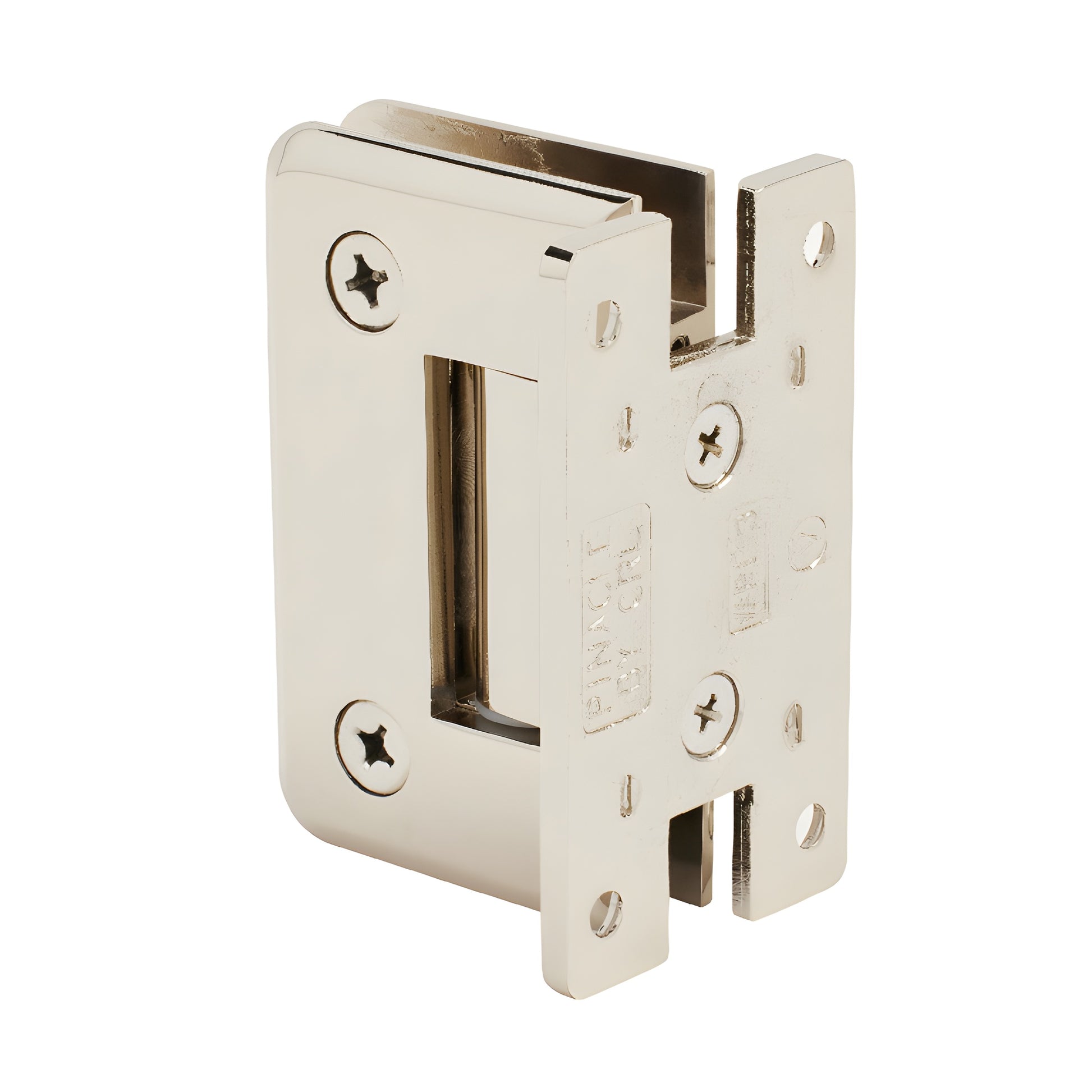

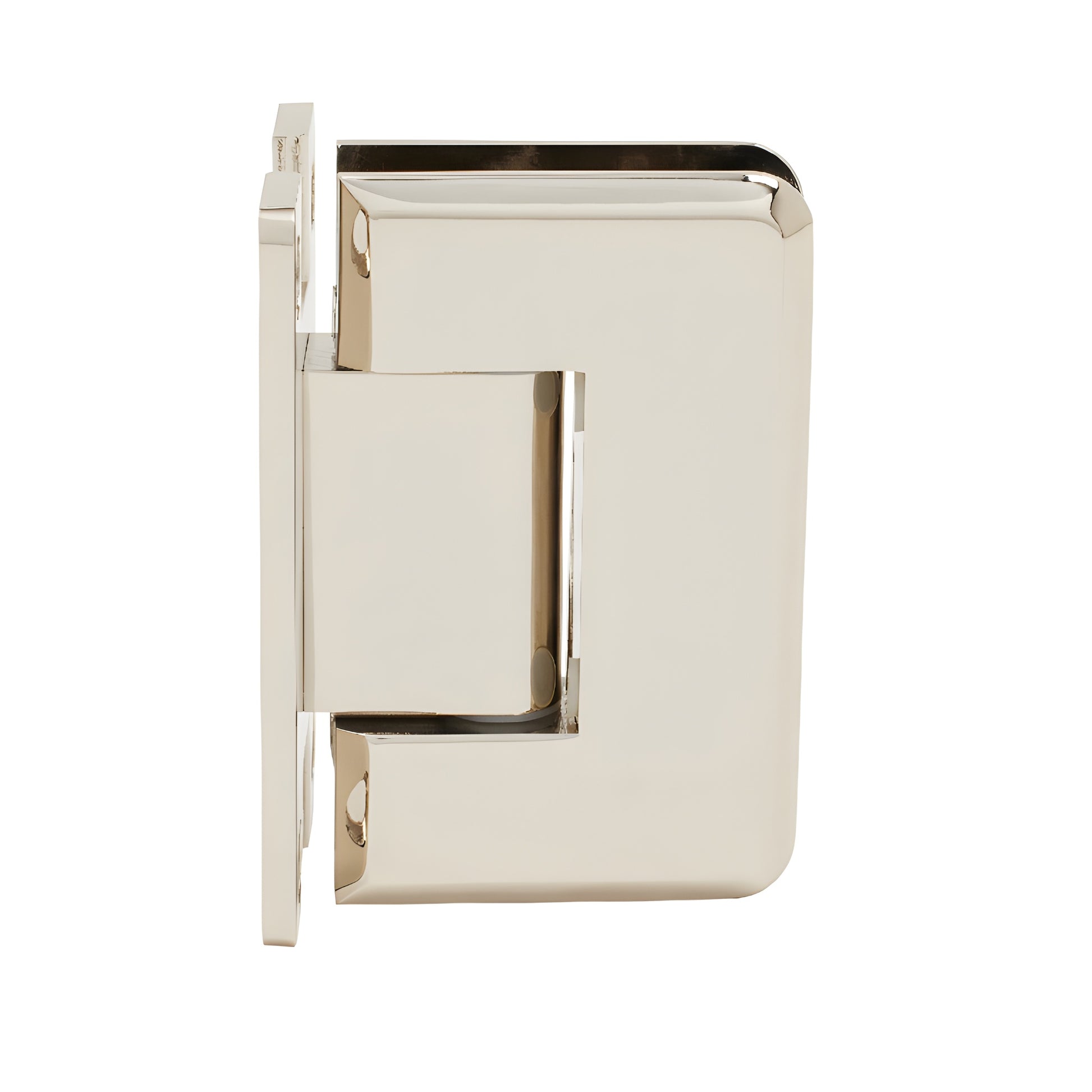

CRL Pinnacle 537 5° Polished Nickel Wall-Mount H Back Plate Hinge

• Self-centering shower hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• 5° pre-set model (factory set for tighter closure into shower interior)
• For use with monolithic tempered glass

The CRL Pinnacle Hinge offers a sleek radius-corner, beveled-edge design and functions like our popular Geneva Series with enhanced styling. Designed for frameless shower doors, Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and are self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, these durable shower door hinges provide reliable closure and long service life. The Pinnacle includes the reversible 5° pivot pin found in our Geneva, Cathedral, Roman, Ultimate, and Elite Series; custom pivot pins are available for off-angle installations. SKU: P1N537PN

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a reversible pivot pin. One side is marked 90° (standard closing); the opposite side is marked 85° (5° tighter closure). Standard models ship with the 90° side activated; pre-set models ship with the pin set to 85°. The pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom pivot pins (up to 45°) are available to accommodate off-angle wall-to-door installations when the standard 5° offset does not achieve the desired closure.

CAPACITY:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs. (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs. (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass hinge options; choose Standard (0°) or 5° Pre-Set Model for tighter closure into the shower interior
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use
