CRL Brushed Nickel Surface Mount Cabinet Pivot Hinge
CRL Brushed Nickel Surface Mount Cabinet Pivot Hinge
Regular price
$127.30 CAD
Regular price
Sale price
$127.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FA50BN
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description

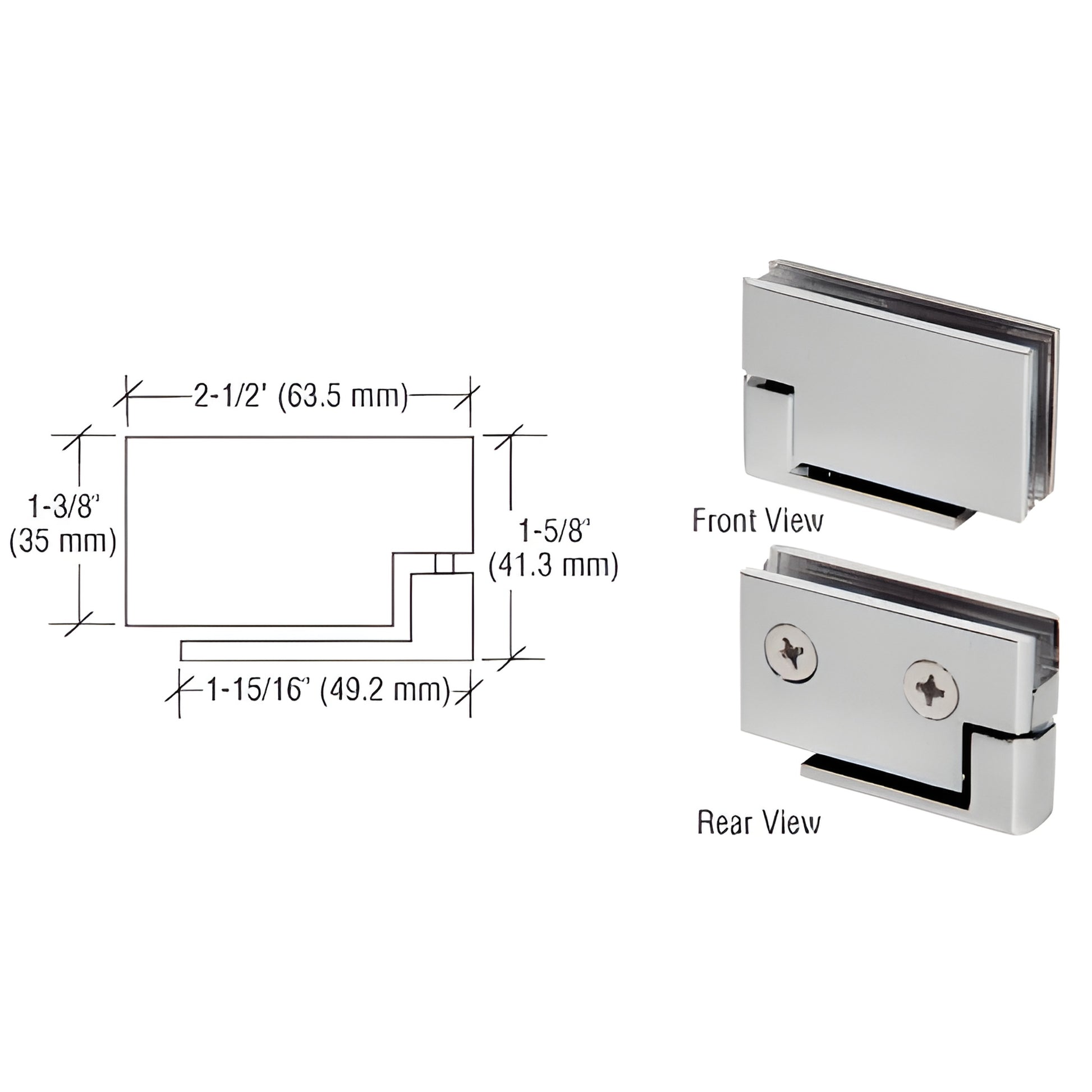

Finish/Color | Brushed Nickel |
Glazing Thickness | 1/4 in. To 5/16 in. (6mm To 8 mm) |
Height 1-5/8 in. | (41.3 mm) |
Material | Brass |
Maximum Door Width 24 in. | (609.6 mm) |
Pack Quantity | 2 |
Weight Capacity 50 lbs. | (22.7 kg) |
Width 2-1/2 in. | (63.5 mm) |
Overview
The CRL Surface Mount Cabinet Pivot Hinge is designed for glass thicknesses ranging from 1/4" to 5/16" (6 to 8 mm), making it a versatile choice for your cabinet needs.
Ideal for doors up to 24" (610 mm) wide and 50 lbs.
(22.7 kg) in weight, this hinge ensures optimal performance and stability.
Installation requires minimal clearance of 1/4" (6 mm) at the top and bottom, along with one hole and one cut-out in the glass.
Each package includes one set for top and bottom mounting, ensuring a complete solution for your glass cabinet installations.
For accurate shipping costs and other inquiries, please contact CRL Customer Service.
Ideal for doors up to 24" (610 mm) wide and 50 lbs.
(22.7 kg) in weight, this hinge ensures optimal performance and stability.
Installation requires minimal clearance of 1/4" (6 mm) at the top and bottom, along with one hole and one cut-out in the glass.
Each package includes one set for top and bottom mounting, ensuring a complete solution for your glass cabinet installations.
For accurate shipping costs and other inquiries, please contact CRL Customer Service.
Specifications
Templates
CAD Drawings - pdf
CAD Drawings - dwg
