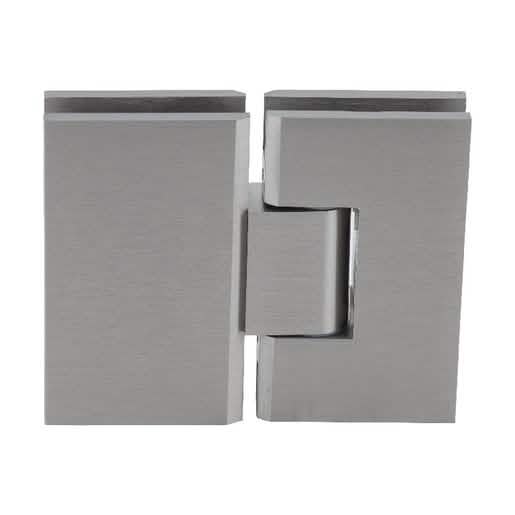

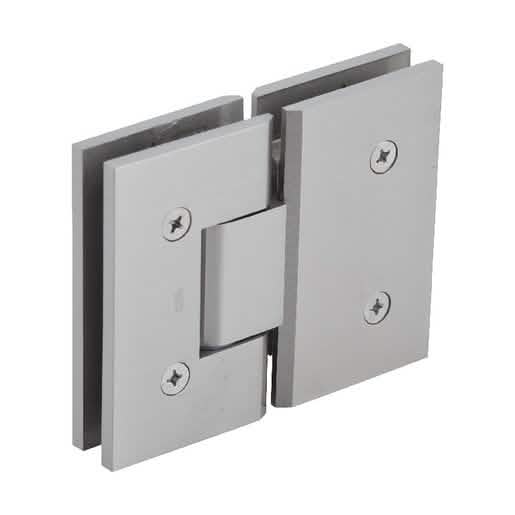

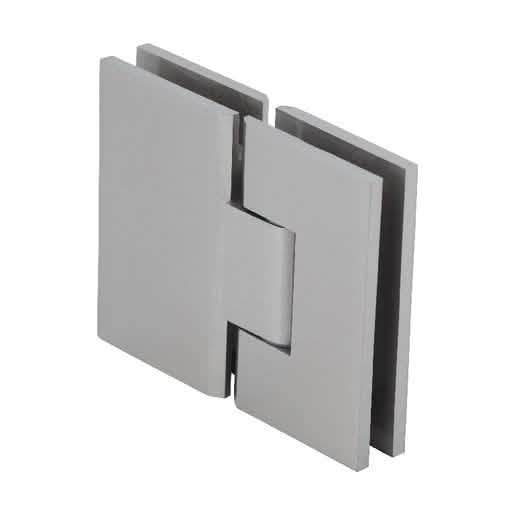

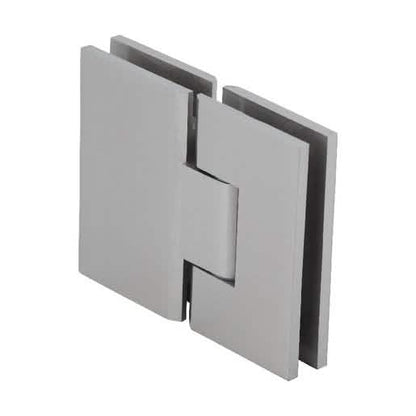

CRL Brushed Nickel Victoria 180 Degree Glass-to-Glass Series Hinge
CRL Brushed Nickel Victoria 180 Degree Glass-to-Glass Series Hinge
Regular price
$175.70 CAD
Regular price
Sale price
$175.70 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VCT180BN
Shipping Weight: 4.537 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 4.537 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

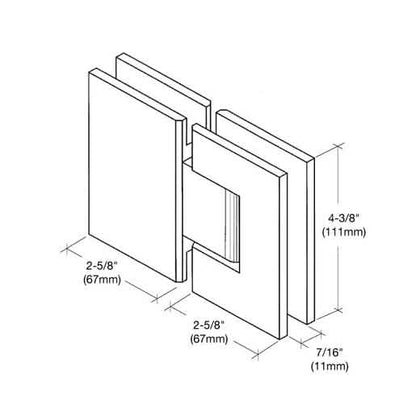

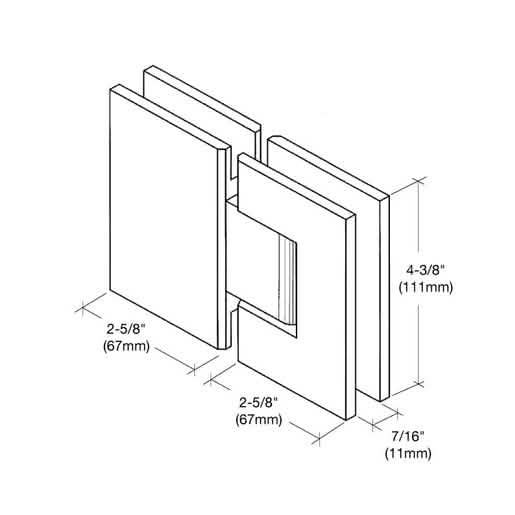

| Edge | Profile Square |
| Finish/Color | Brushed Nickel |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height 4-3/8 in. | (111 mm) |
| Material | Brass |
| Maximum Door Weight 140 lbs. | (63.5 kg) |
| Maximum Door Width 39 in. | (991 mm) |
| Mounting | Type Glass To Glass |
| Self-Centering Yes | Victoria |
| Width - Door Portion 2-5/8 in. | (67 mm) |
| Width - Sidelite Portion | 2-5/8 |
Overview
The CRL Victoria Series Hinges are the perfect solution for supporting heavier and wider shower doors, accommodating door weights up to 140 lbs (64 kg) and widths up to 39 inches (1 m) with just two hinges.
Designed for use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass, these versatile hinges are available in both wall mount and 180-degree glass-to-glass models.
Featuring an integrated safety interlock for enhanced glass panel control and a frameless aesthetic, they are constructed from solid brass with heat-treated stainless steel springs for increased durability.
Available in six popular finishes and custom options, these hinges offer exceptional holding power and self-centering capabilities, making them an excellent choice for residential or hotel shower installations.
Designed for use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass, these versatile hinges are available in both wall mount and 180-degree glass-to-glass models.
Featuring an integrated safety interlock for enhanced glass panel control and a frameless aesthetic, they are constructed from solid brass with heat-treated stainless steel springs for increased durability.
Available in six popular finishes and custom options, these hinges offer exceptional holding power and self-centering capabilities, making them an excellent choice for residential or hotel shower installations.
