CRL Brushed Nickel Y Inline Square Corner Glass Clamp for Shower
CRL Brushed Nickel Y Inline Square Corner Glass Clamp for Shower
Regular price
$69.33 CAD
Regular price
Sale price
$69.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC182BN
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Nickel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Leg Width
2-1/8 in. (54 mm)
Material
Brass
Mounting Type
Wall Mount
Width
1-3/4 in. (44 mm)
Overview

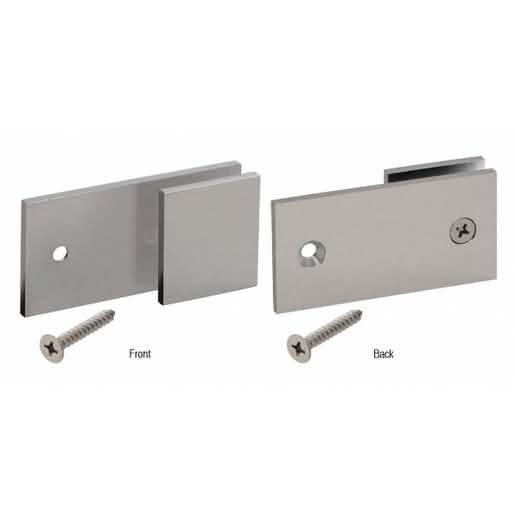

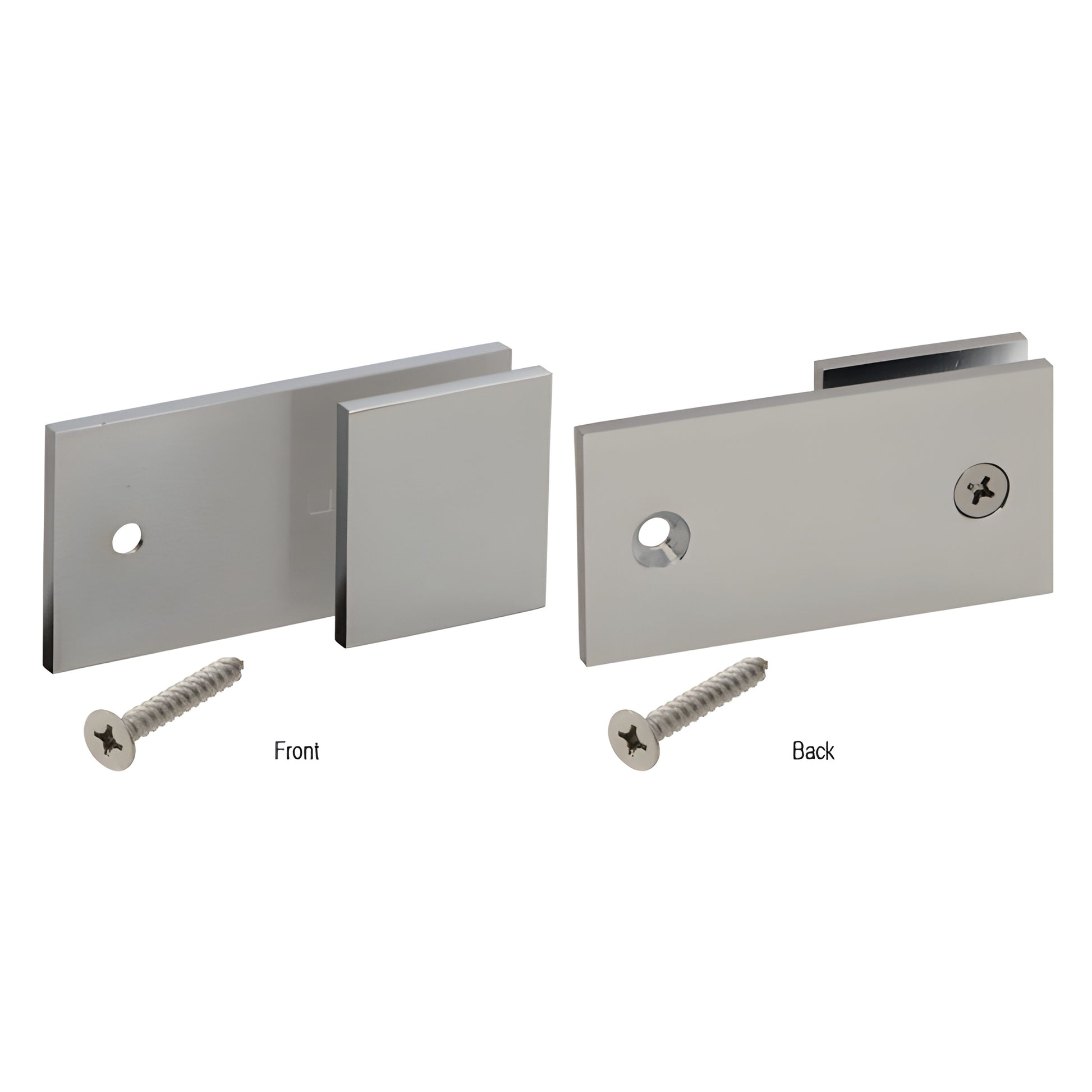

- Brass Y-clamp for frameless shower enclosures — secures fixed glass panels at the outside edge
- Square-edge profile to match Geneva and Vienna series hinges and similar square-edge hardware
- Glass fabrication required for 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass
This solid-brass Y clamp (SKU: SGC182BN) is designed for frameless shower enclosures when a fixed panel is moved to the outside enclosure edge. Available in several popular plated and brushed finishes, with custom finishes available on request. The square-edge profile pairs seamlessly with other square-edge clamps and hinges in our product line. Wood screw for wall mounting is included. Ideal for installers and fabricators specifying 3/8"–1/2" tempered safety glass.
Ready to specify? Contact CRL or add SGC182BN to your cart.
Specifications
Templates
