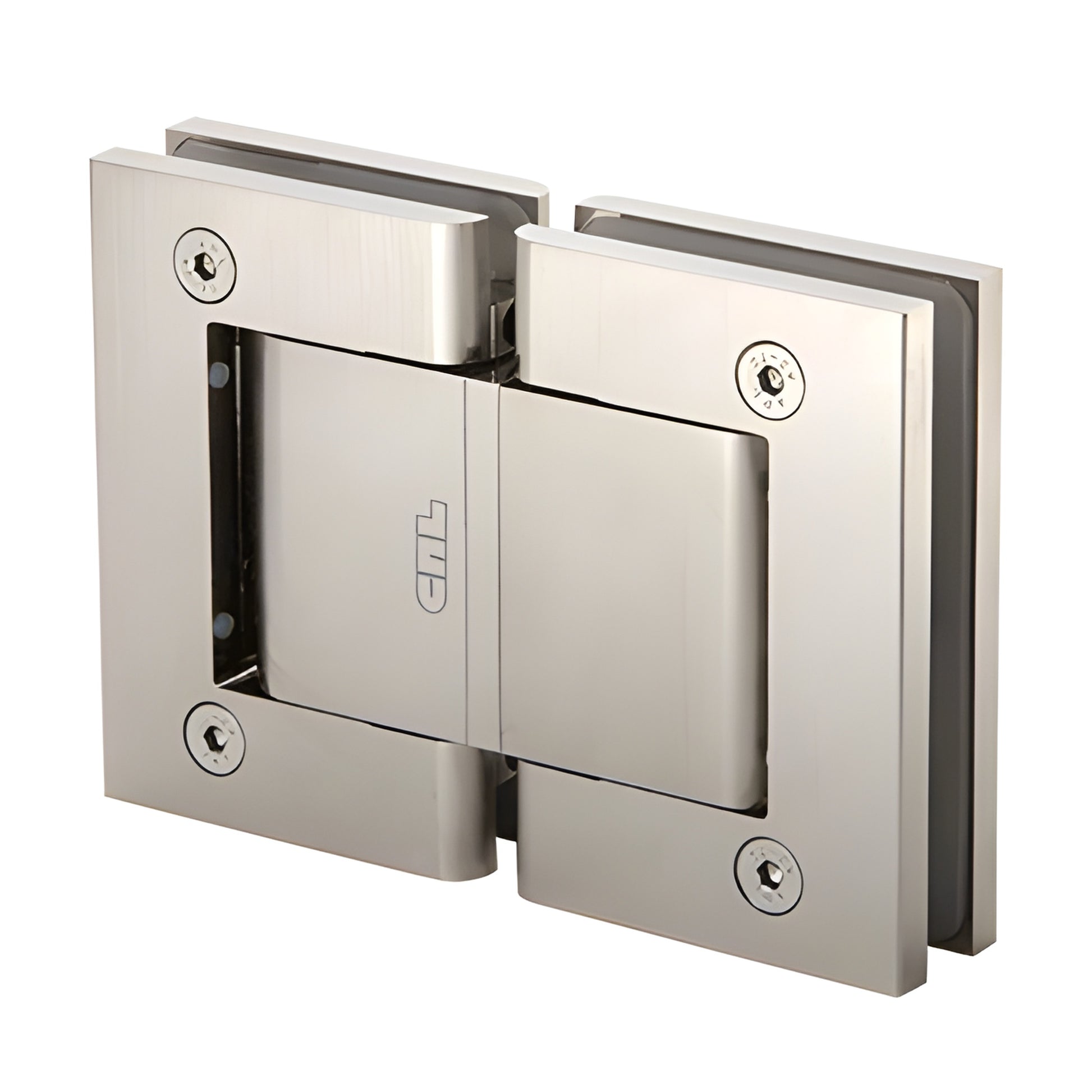

CRL 180° Vernon Oil Dynamic Glass-to-Glass Shower Hinge, Satin Nickel

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body with multiple finish options
• Hold-open and no-hold-open models available
• Adjustable closing speed via control valve
• Ideal alternative to floor closers and patch fittings for retrofit all-glass doors

CRL 180º Glass-to-Glass Oil Dynamic Hinge (SKU: H8015SN)

This Oil Dynamic hinge functions as a self-closing glass door hinge that swings 90º inwards and outwards with positive stops at 0º and ±90º. Designed for interior glass doors (not for shower doors), it combines hydraulic closing performance with automatic mechanical hinge design so you can install an all-glass, self-closing door without floor-mounted or overhead closers.

Two properly mounted hinges support glass doors up to 39" (1 m) wide and a combined maximum weight of 176 lbs. (80 kg). The hinge is ambidextrous, features an adjustable closing speed, and is available in wall-mount and glass-to-glass configurations. Oil Dynamic hinges have been tested for long service life (over 1 million cycles).

• Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Swing: 90º inwards and outwards (except model 31M8060, which is one-way)
• Closing Type: Automatic closing from 0º to 80º
• Special Features: Hold-open at 90º (models available without hold open); adjustable closing speed
• Cut-out required (use template provided; CRL cut-outs may not match other brands)

Includes: Snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass; hex screws

Maximum capacities using two hinges: Door width: 39" (1 m); Door weight: 176 lbs. (80 kg)

NOTE: Do not use more than two hinges on one door.

Product Warning:

Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, obtain approval from CRL Technical Sales. Use only the template included with the hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
