CRL Brushed SS Patch Kit for Double Frameless Glass Doors - No Lock
CRL Brushed SS Patch Kit for Double Frameless Glass Doors - No Lock
Regular price
$903.78 CAD
Regular price
Sale price
$903.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE8BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (SKU: PHE8BS)
CRL PHE8 European Double Door Kits provide complete frameless glass double door hardware for a pair of free-swinging doors with fixed transom and two sidelites (glass and any additional supports for the fixed transom and sidelites not included). Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (ordered separately). Ideal for commercial and high-end residential frameless glass door installations.

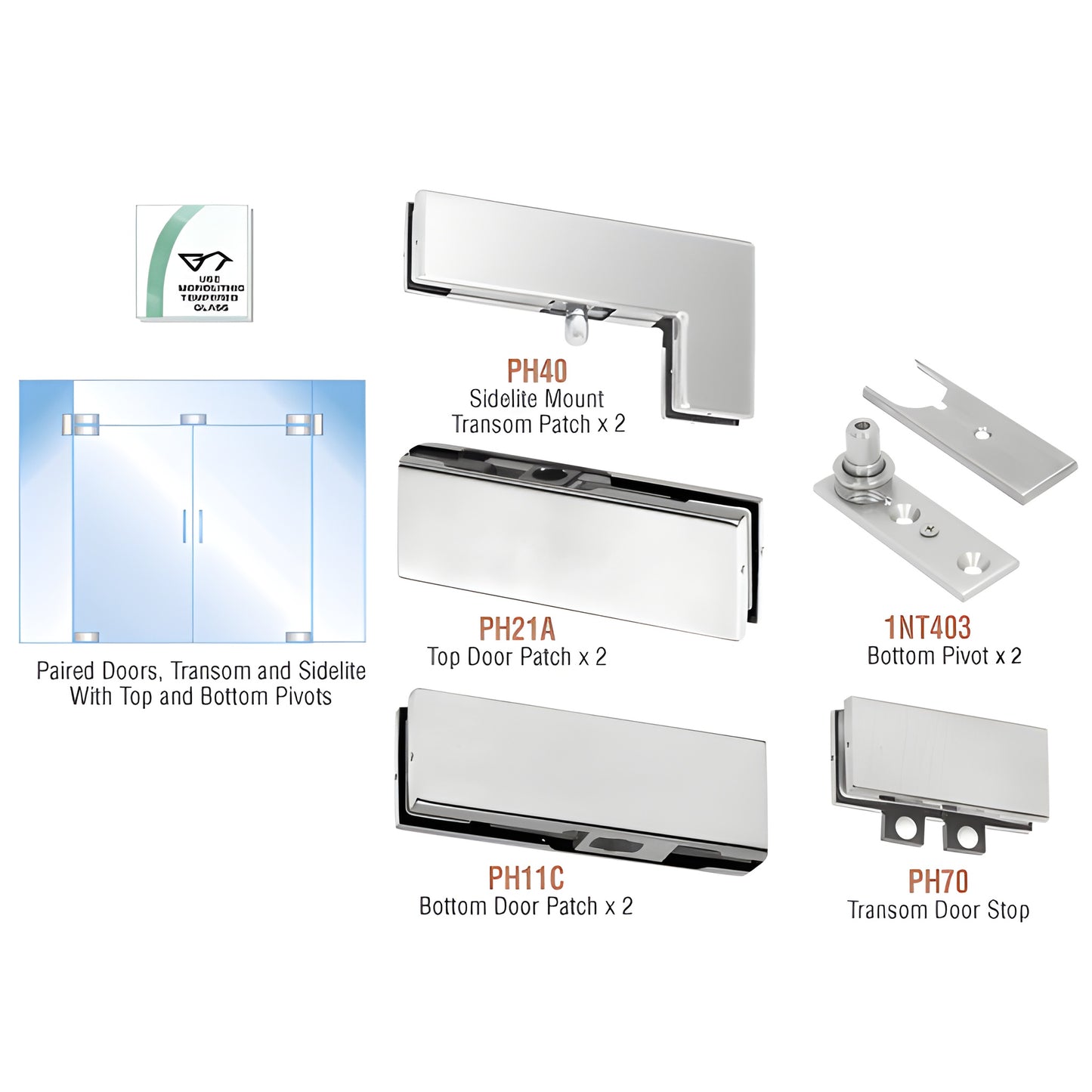

Kit contains:
- 2 × PH40 sidelite mount transom patches
- 2 × PH21A top door patches
- 2 × PH11C bottom door patches
- 1 × PH70 transom door stop
- 2 × 1NT403 bottom pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)
Kits with locks include two EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order the PHE8BS European double door kit today or contact CRL Customer Service for product details and installation guidance.
