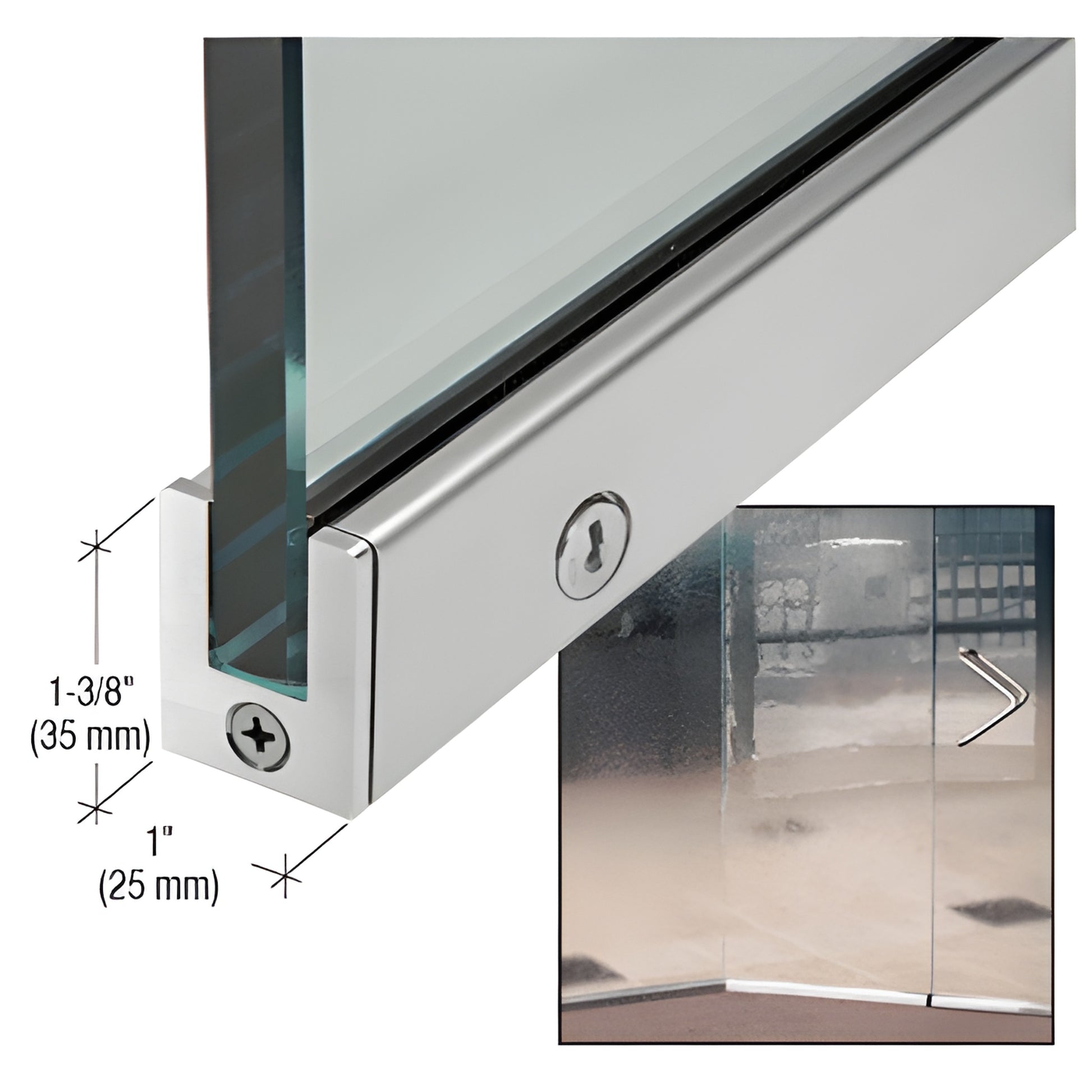

CRL Brushed Stainless 1-3/8 in RH Tall Slender Door Rail 35-3/4 in

• For 1/2" (12 mm) monolithic tempered glass
• Available in three heights with or without a lock
• Dry glaze slender profile door rails are only 1" (25 mm) wide
• Brushed or polished stainless steel finishes
• Custom 1" (25 mm) slender profile vertical stiles available on special order

CRL Slender Profile Door Rails (SKU: SP35BS12SR) measure only 1" (25 mm) wide and are offered in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). Designed for 1/2" tempered glass display cases and glass doors, these slender profile rails are prepped to accept any of the three Slender Profile Rail Pivot Inserts (ordered separately) to accommodate overhead closers, floor-mounted closers, or pivots. Rails can be fitted with the 7150 Series Cam Lock for display case security; other locking options may be available by special order.

All Slender Profile Rails are engineered for field installation and feature easy on-site adjustment to compensate for common installation variances. Rails are aluminum cores clad in alloy 304 stainless steel for a durable, long-lasting finish ideal for retail displays and architectural glass doors.

ORDERING INFORMATION:
• Compatible pivots: CRL9040WBP Top Pivot and 1NT402 Bottom Pivot.
• End caps are included with all Slender Profile Door Rails.
• Specify door rail length (including end caps) when ordering custom length rails.
• When ordering the 7150 Series Cam Lock, specify door handing and glass fabrication for the lock template.
• Slender Profile Rails are prepped to receive any of the Slender Profile Door Rail Pivot Inserts.
• Installation instructions and adjustment wrenches are included.

Product Warning:

Custom rails are made to your specified size and finish and are not returnable.
Glass fabrication is required for installing a lock—please use the provided template.
Maximum system width is 42" (1.07 m).
