- For 1/2" (12 mm) monolithic tempered glass
- Available in three heights with or without a lock
- Dry glaze slender profile door rails are only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order

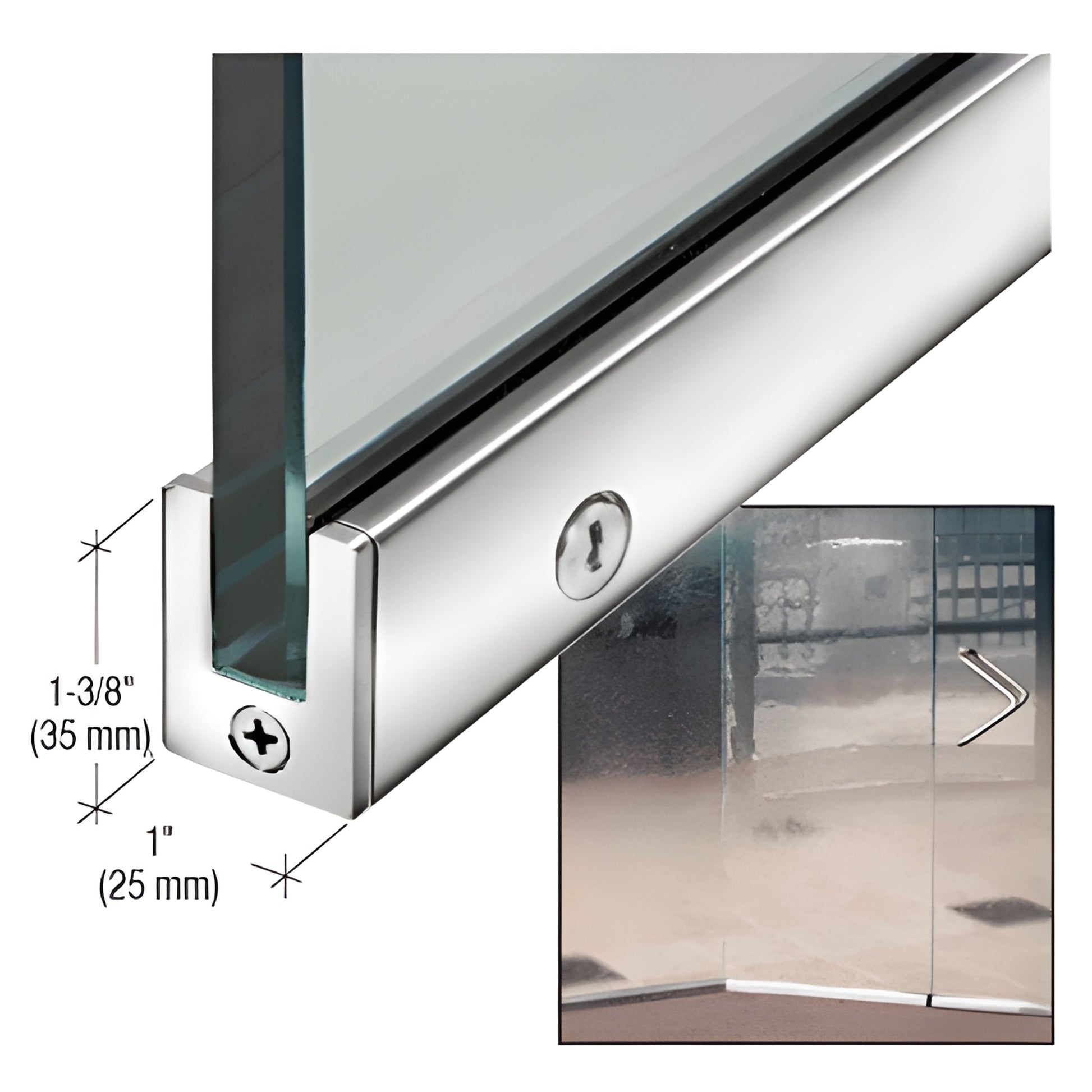

CRL Slender Profile Door Rails (SKU: SP35PS12SR) measure only 1" (25 mm) wide and are offered in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). These slender profile door rails are engineered for 1/2" tempered glass display doors and retail showcases, providing a low‑profile, dry‑glaze solution for frameless glass installations. Each rail is prepped to accept any of the three Slender Profile Rail Pivot Inserts (ordered separately) to integrate overhead door closers, floor-mounted closers, or pivots. Rails can be fitted with the 7150 Series Cam Lock for display case applications; other locks may be available by special order.
All Slender Profile Rails are designed for field installation and offer easy adjustment to compensate for on-site variances. Rails feature an aluminum core clad in alloy 304 stainless steel for a durable, corrosion‑resistant finish suitable for commercial display and architectural glass doors.
ORDERING INFORMATION:
• Compatible pivots: CRL9040WBP top pivot and 1NT402 bottom pivot.
• End caps are included with all Slender Profile Door Rails.
• Specify door rail length (including end caps) when ordering custom length rails.
• When ordering the 7150 Series Cam Lock, specify door handing.
• Rails are prepped to receive any Slender Profile Door Rail Pivot Insert (ordered separately).
• Installation instructions and adjustment wrenches are included.
Product Warning:
Custom rails are made to your specified size and finish and are non‑returnable.
Glass fabrication is required for locks—refer to the lock template.
Maximum recommended door width for the Slender Profile Door Rail System is 42" (1.07 m).
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are representative; colors may vary with monitor settings.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or
