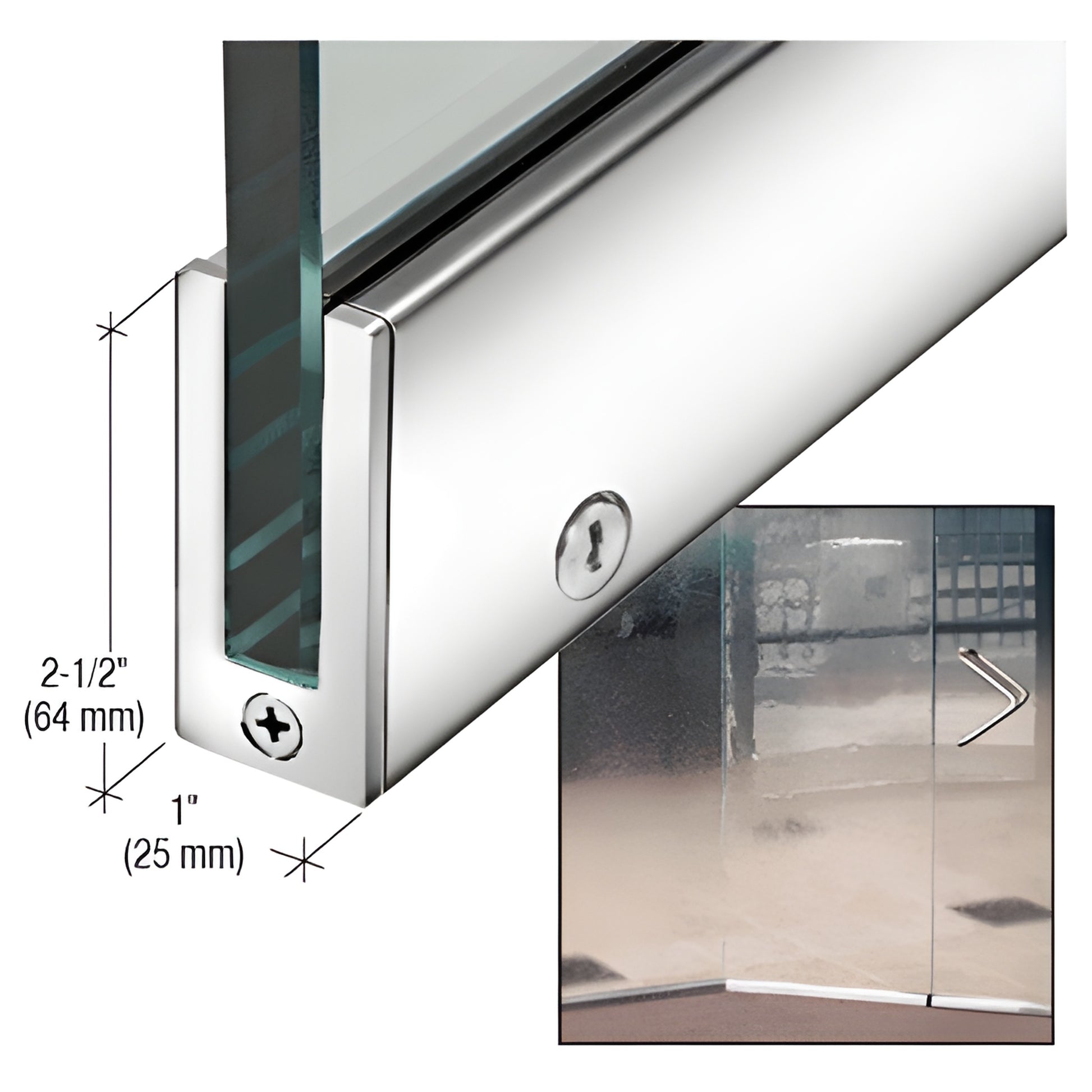

CRL Polished Stainless Steel RH 2.5in Slender Door Rail w/ Lock 908mm

• For 1/2" (12 mm) monolithic tempered glass
• Available in three heights with or without a lock
• Dry-glaze slender profile door rails are only 1" (25 mm) wide
• Brushed or polished stainless steel finishes
• Custom 1" (25 mm) slender profile vertical stiles available on special order

CRL Slender Profile Door Rails measure only 1" (25 mm) wide and are available in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). Designed for tempered glass display cases and glass partition doors, these slender profile rails are prepped to receive any of the three Slender Profile Rail Pivot Inserts (ordered separately) to accommodate overhead door closers, floor-mounted closers, or pivots. All rails can be fitted with the 7150 Series Cam Lock for secure display case applications; other locking options may be available on special order.

All Slender Profile Rails are engineered for field installation and simple on-site adjustment to compensate for unexpected installation conditions. Rails feature aluminum construction clad in alloy 304 stainless steel for a durable, long-lasting finish ideal for display case and retail storefront applications.

Key features & differentiators:

• Ultra-slim 1" (25 mm) door rail for minimal visual profile
• Three heights to match hardware and glass requirements
• Prepped for Slender Profile Rail Pivot Inserts (sold separately)
• Compatible with 7150 Series Cam Lock for display cases
• Alloy 304 stainless steel cladding over aluminum for durability
• Field-adjustable design, includes installation wrenches

ORDERING INFORMATION (SKU: SP64PS12SR):

• Compatible pivots: CRL9040WBP Top Pivot, 1NT402 Bottom Pivot
• End caps included with all Slender Profile Door Rails
• Specify door rail length (including end caps) when ordering custom lengths
• If specifying the 7150 Series Cam Lock, indicate door handing
• Slender Profile Rails are prepped to receive Slender Profile Door Rail Pivot Inserts (sold separately)
• Installation instructions and adjustment wrenches included

Product Warning:

Custom rails are made to your specified size and finish and are not returnable. Glass fabrication is required for a lock — please use the provided template. Maximum width for the Slender Profile Door Rail System is 42" (1.07 m).
