CRL Brushed Stainless 42" P7 Series End Post Railing Kit No Fittings
CRL Brushed Stainless 42" P7 Series End Post Railing Kit No Fittings
Regular price
$457.53 CAD
Regular price
Sale price
$457.53 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F42EBS
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Base | Plate Cover Included Yes |
Base Plate Diameter 4-3/4 in. | (121 mm) |
Base Plate Mounting Holes | 2 |
Base Plate Thickness 3/8 in. | (10 mm) |
Finish/Color | Brushed Stainless Steel |
Material | Stainless Steel |
Mounting Hole Diameter 9/16 in. | (14 mm) |
Overview

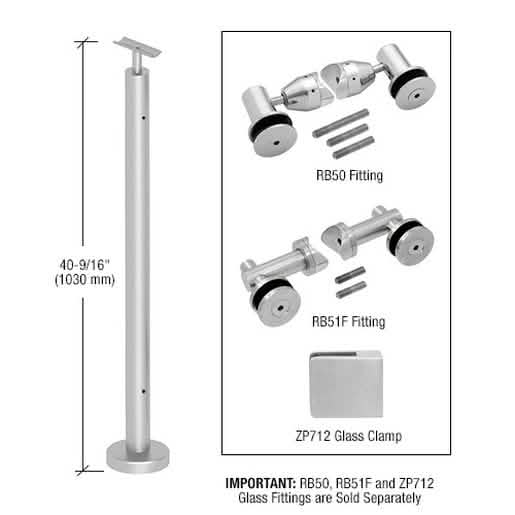

CRL's Surface Mounted Post Railing Kits are crafted from high-quality Schedule 40 1.9" (48 mm) diameter stainless steel tubing, perfect for guard rail or hand rail applications.
Designed for use with panels 1/2" (12 mm) to 1" (25 mm) thick, these kits include a base plate, base cover flange, and welded top saddle, with standard post heights of 36" (914 mm) and 42" (1.07 m), and custom heights available.
Choose from two standard stainless finishes or customize with powder paint finishes.
Please note that glass attachment fittings are sold separately.
For secure attachment, specify Cat.
No.
PRS1032 for 10-32 x 5/8" stainless steel screws, available in packs of 50.
Regular maintenance is recommended to preserve the stainless steel finish; consult the Stainless Steel Disclaimer for more details.
Contact CRL Customer Service for precise shipping weights and costs.
Designed for use with panels 1/2" (12 mm) to 1" (25 mm) thick, these kits include a base plate, base cover flange, and welded top saddle, with standard post heights of 36" (914 mm) and 42" (1.07 m), and custom heights available.
Choose from two standard stainless finishes or customize with powder paint finishes.
Please note that glass attachment fittings are sold separately.
For secure attachment, specify Cat.
No.
PRS1032 for 10-32 x 5/8" stainless steel screws, available in packs of 50.
Regular maintenance is recommended to preserve the stainless steel finish; consult the Stainless Steel Disclaimer for more details.
Contact CRL Customer Service for precise shipping weights and costs.
