CRL 42 in Brushed Stainless 180° Center-Post Glass Railing Clamp Kit
CRL 42 in Brushed Stainless 180° Center-Post Glass Railing Clamp Kit
Regular price
$1,166.87 CAD
Regular price
Sale price
$1,166.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PR42CBS
Shipping Weight: 13.24 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.24 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- 1.9" (48 mm) Diameter Posts
- Square or Round Z-Series Glass Clamps (factory-attached)
- Ready-to-install kits for commercial and residential applications
- Designed to accept 1/2" (12 mm) tempered glass
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights available
- Two standard stainless finishes
- Custom powder coat finishes available

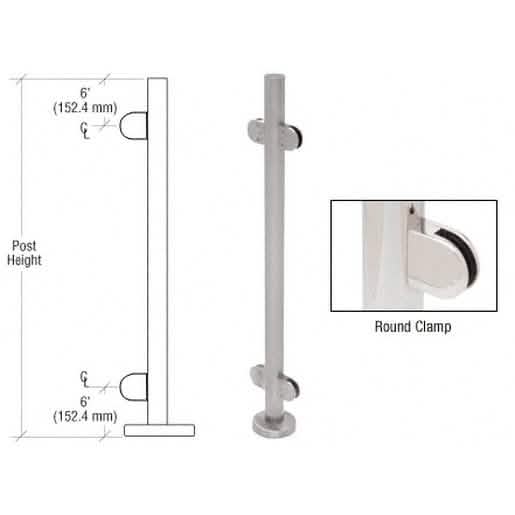

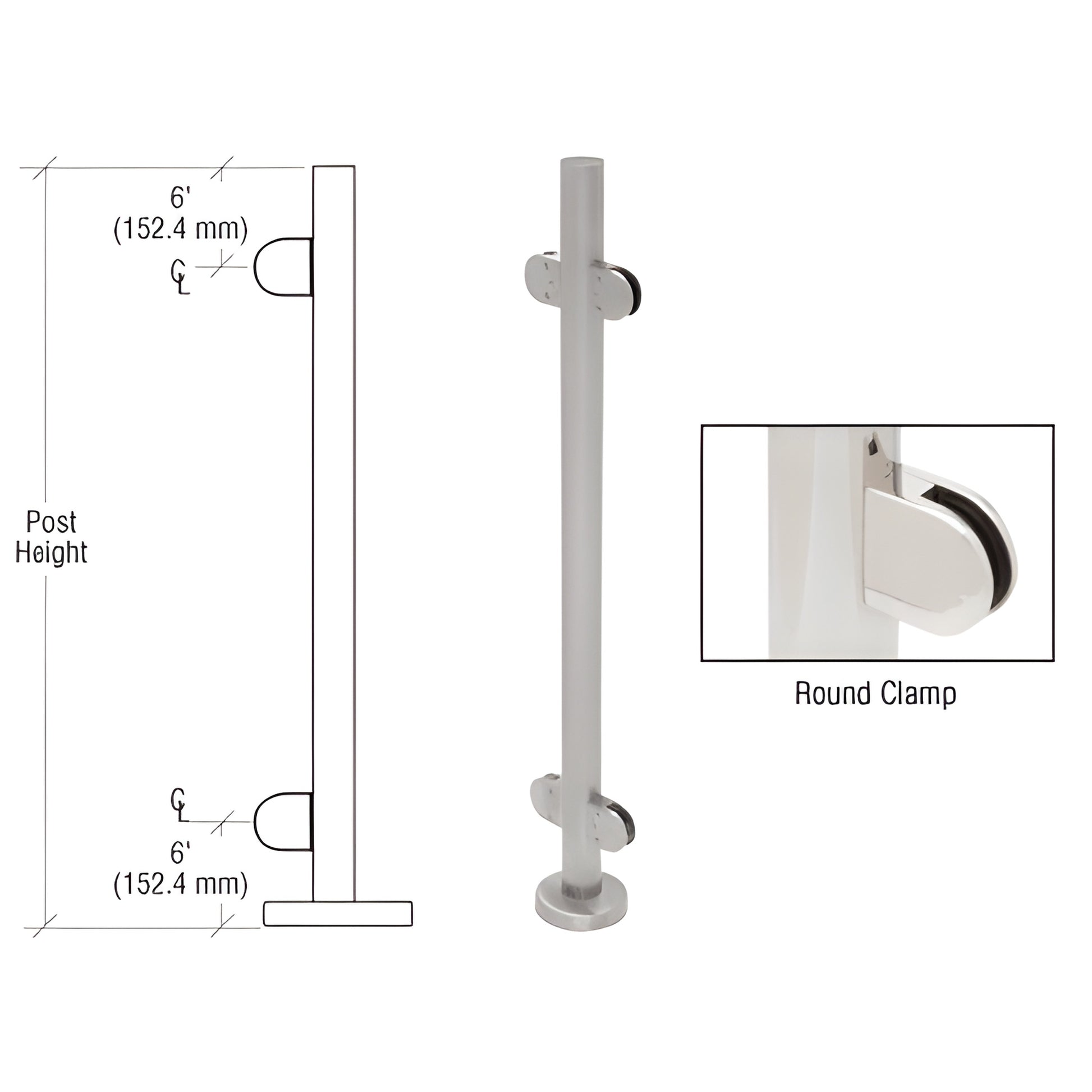

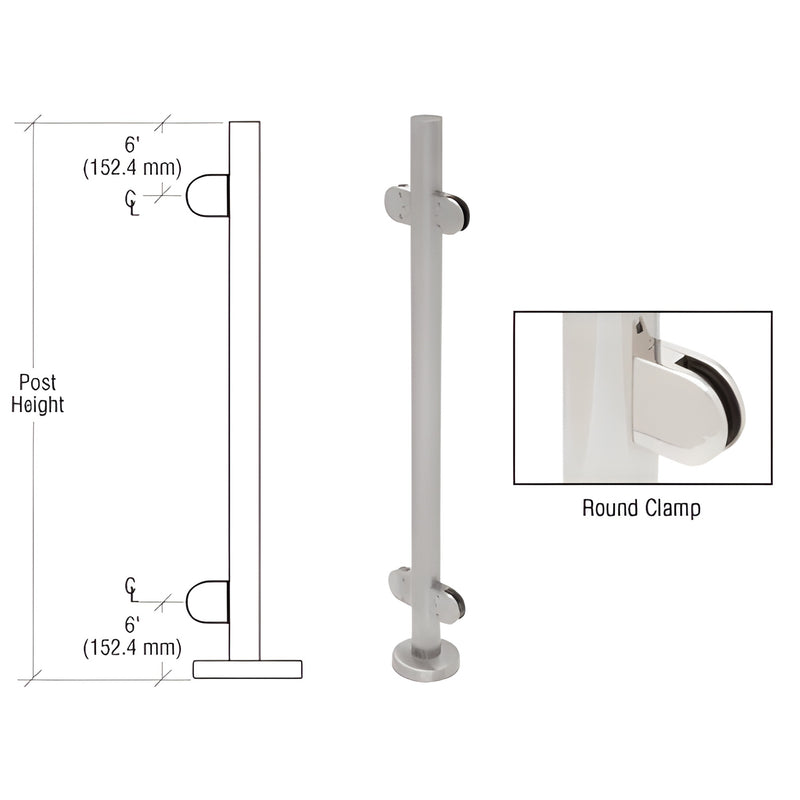

CRL's Glass Clamp Round Post Kits (SKU: PR42CBS) are constructed from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing and include a base plate, base plate cover canopy, welded top cap, and Z-Series glass clamps pre-installed on the post. These ready-to-install kits speed up installation and reduce on-site fitting—ideal when you need durable stainless steel glass clamp post assemblies with factory-attached hardware.
NOTE: CRL's Glass Clamp Post Kits are not designed for guard rail or hand rail applications.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Contact CRL or your local distributor to request custom heights, finishes, or exact shipping weight and to place your order.
