Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary by monitor.
CRL
CRL 72" Brushed Stainless D-Shape Locking Ladder Door Pull
CRL 72" Brushed Stainless D-Shape Locking Ladder Door Pull
Regular price
$2,122.18 CAD
Regular price
Sale price
$2,122.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DLLPA72BS
Shipping Weight: 16.534 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 16.534 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adaptor For 1 3/4 Inch Thick Doors
LLPA134ADT
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Mounting Points
3
Overview
- SKU: DLLPA72BS
- Locks operate at a comfortable 42" (1.07 m) height above the floor
- Fits 1/2" to 3/4" (12 to 19 mm) glass doors
- 316 alloy stainless steel tubing for enhanced corrosion resistance
- Fully concealed deadbolt locks into the floor (custom top or top/bottom locking models available upon request)

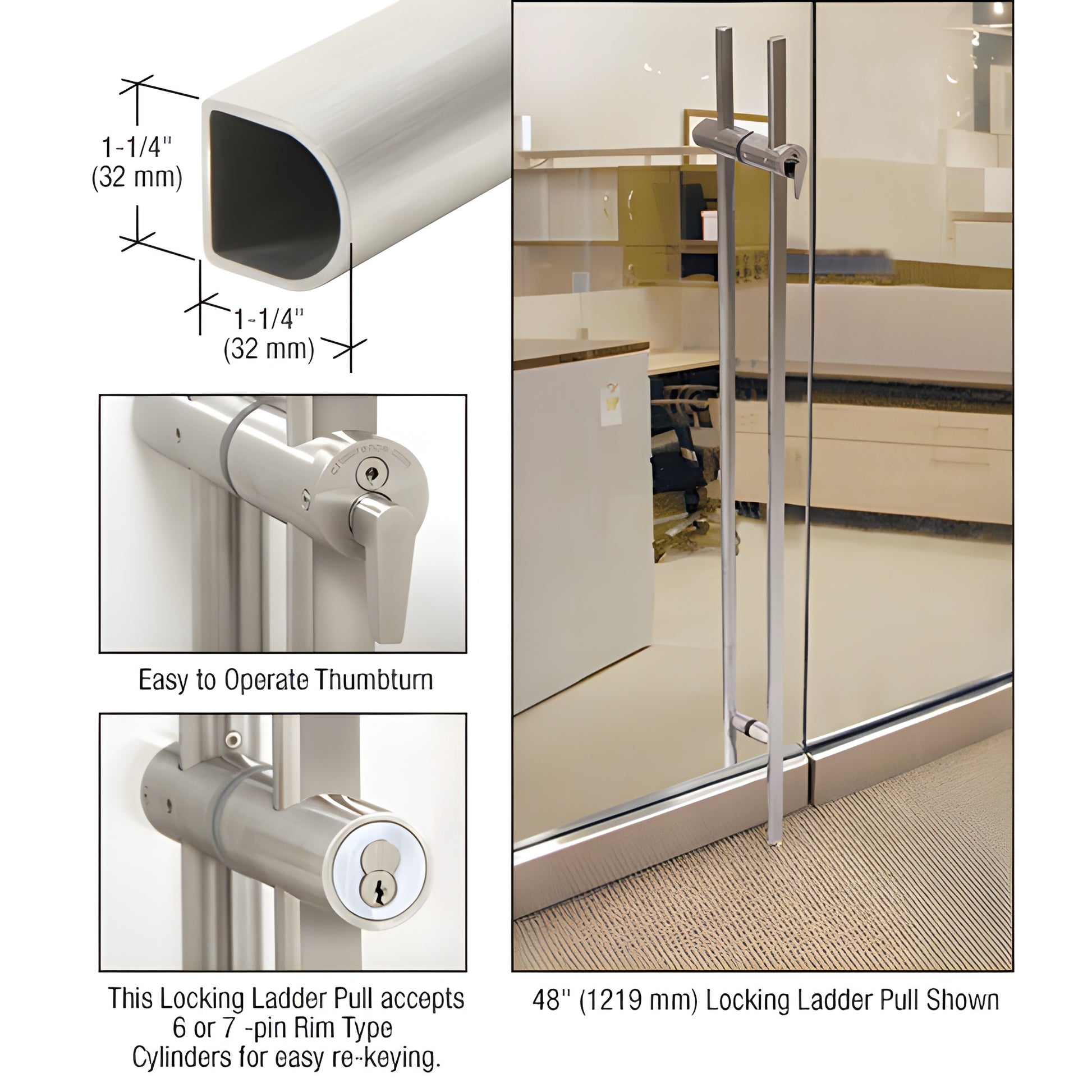

CRL Designer Series "D" Shape Locking Ladder Pull is a glass door locking ladder pull designed for commercial and residential glass entrances. The fully concealed deadbolt locks into the floor and is operated by a key or thumbturn positioned at a comfortable height above the finished floor. Supplied with a standard 7-pin rim cylinder with interchangeable core—use it as-is, re-key the core, or replace the entire rim cylinder to accommodate proprietary cylinders. Ladder pulls accept most standard rim-type cylinders.
Note: Glass fabrication is required.
Product Warning:
Glass fabrication is required.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Order DLLPA72BS Designer "D" Shape Locking Ladder Pull or contact CRL for custom locking configurations.
Specifications
CAD Drawings - pdf
