• 78LPBS stainless steel 78 in ladder pull, brushed finish, back-to-back glass door handle with mid-posts, 1-1/4 in diameter
1 1

CRL

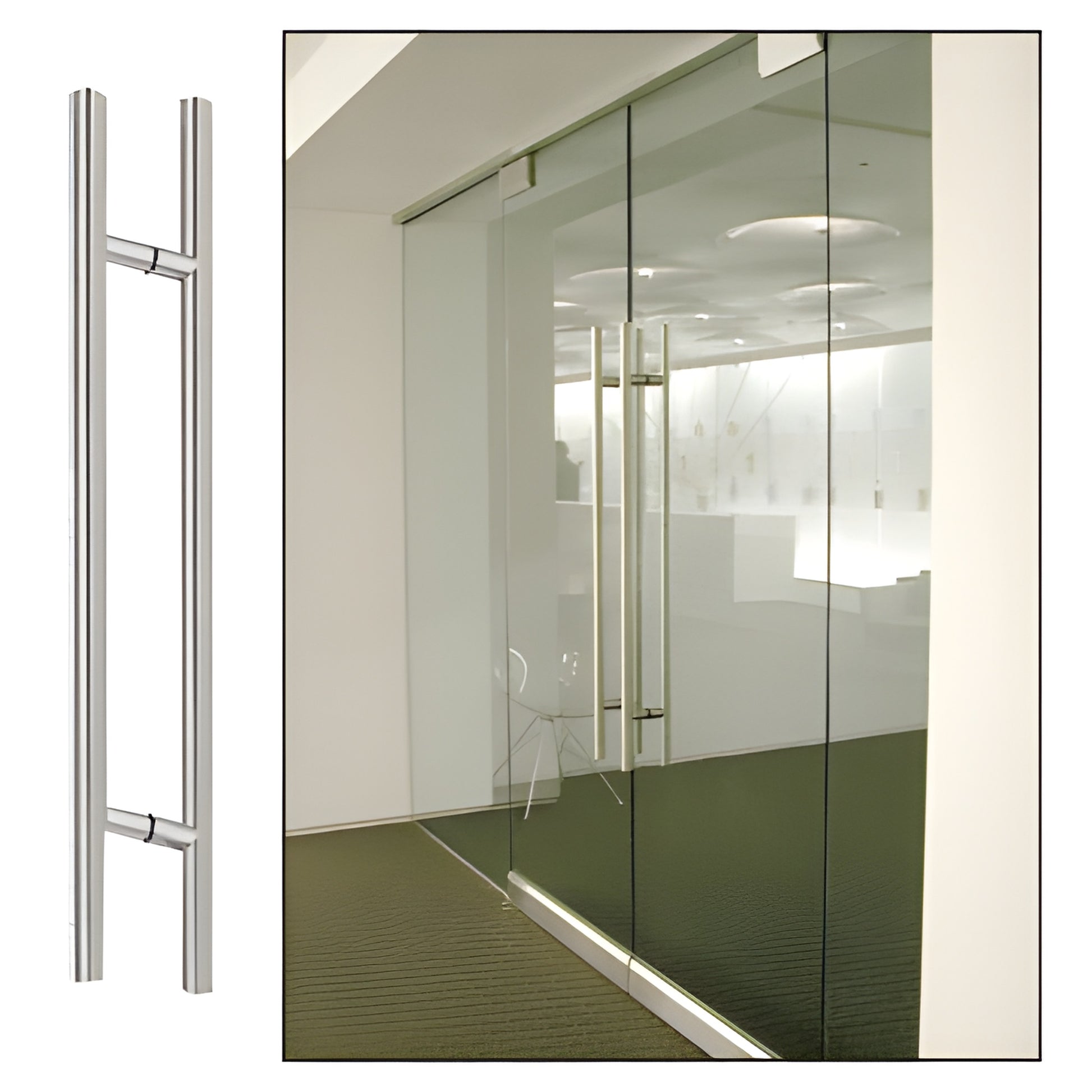

CRL 78" Brushed Stainless Ladder-Style Back-to-Back Pull Handle

CRL 78" Brushed Stainless Ladder-Style Back-to-Back Pull Handle

$973.48 CAD
$973.48 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 78LPBS
Shipping Weight: 20.282 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
66 in. (1676 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
78 in. (1981 mm)
Style Washers
No

Overview

  • Eleven sizes from 24" to 84" (610 mm to 2.13 m) overall height — SKU: 78LPBS
  • Brushed or Polished 304 Grade Stainless Steel
  • Custom lengths, designs, and finishes available on special order

CRL Straight Style Ladder Pulls include two mid-posts and mounting fasteners for back-to-back installation on 3/8" to 3/4" (10 to 19 mm) tempered glass or on 1-3/4" (44 mm) wood or aluminum doors. Custom ladder pulls can be ordered with additional mid-posts for increased support; maximum mid-post spacing is 72" (1.83 m). These stainless steel ladder pull handles are ideal for commercial glass doors and storefronts where a durable, modern glass door handle is required.


SPECIFICATIONS:
Fits 3/8" to 3/4" (10 to 19 mm) thick tempered glass, or 1-3/4" (44 mm) thick aluminum or wood doors

CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing for long-lasting finish and strength

GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes for secure mounting


NOTE:

Click here to view our single-sided ladder pulls in all available sizes and finishes.


Most shipping weights are approximate and have not been verified. If you need exact weight for shipping estimates, contact CRL Customer Service before ordering. Product images show the actual product or a close representation; colors may vary with monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not stain- or rust-proof. Periodic maintenance preserves the factory finish. For details see the Stainless Steel Disclaimer in the Technical References section.


Order SKU 78LPBS or contact CR
