CRL 90° Right-Hand Sidelite Patch, Brushed Stainless w/1NT300
CRL 90° Right-Hand Sidelite Patch, Brushed Stainless w/1NT300
Regular price
$385.49 CAD
Regular price
Sale price
$385.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH42RBS
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Handing
Right Hand
Insert Type
1NT300
Mounting Type
Sidelite
Profile
90°
With Insert
Yes
Overview
- Works with 2-9/16" (65 mm) pivot setback door patch fittings
- For 3/8" (10 mm) glass only — sidelite mounted transom patch
- Left and right handed configurations

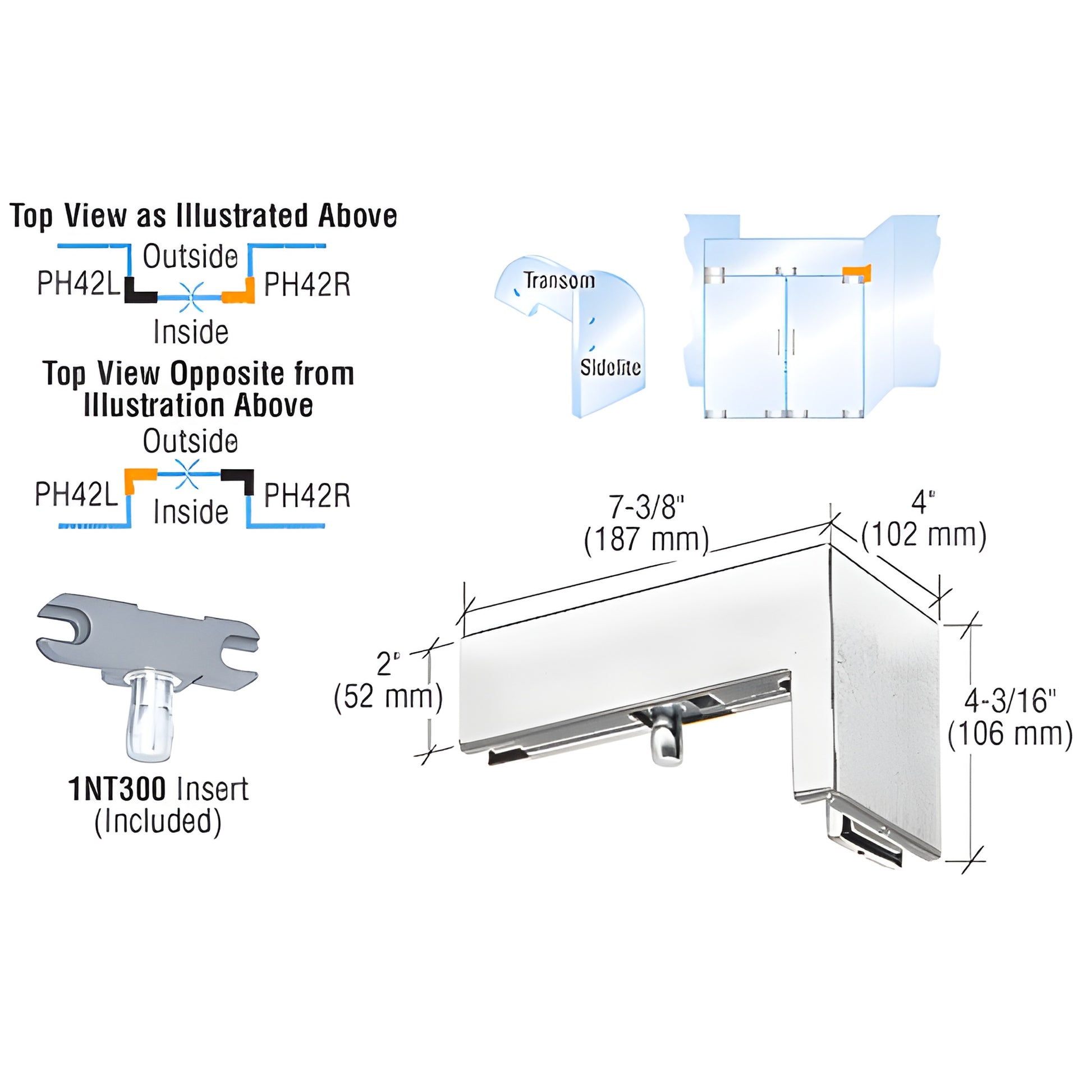

The CRL 90° Left Hand Sidelite Mounted Transom Patch (SKU: PH42RBS) supports a transom from a sidelite glass panel. It includes a INT300 insert for mounting a door with CRL's PH21A top door patch fitting. The insert can be moved to the non-hinged side to enable a double-swing door; add an INT306 transom patch door stop insert to create a one-way door. This product is ideal for frameless glass sidelite and transom installations requiring a compact, durable transom support.
Glass fabrication required:
Three 3/4" (19 mm) diameter holes and one corner notch; door and panels flat polished; no miters required.
Comes with:
Template and instructions.
Product warning / note:
These fittings are for 3/8" (10 mm) tempered glass only and are not for use with laminated glass.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Order the PH42RBS sidelite mounted transom patch for reliable 90° transom support—contact CRL or your local distributor to buy.
