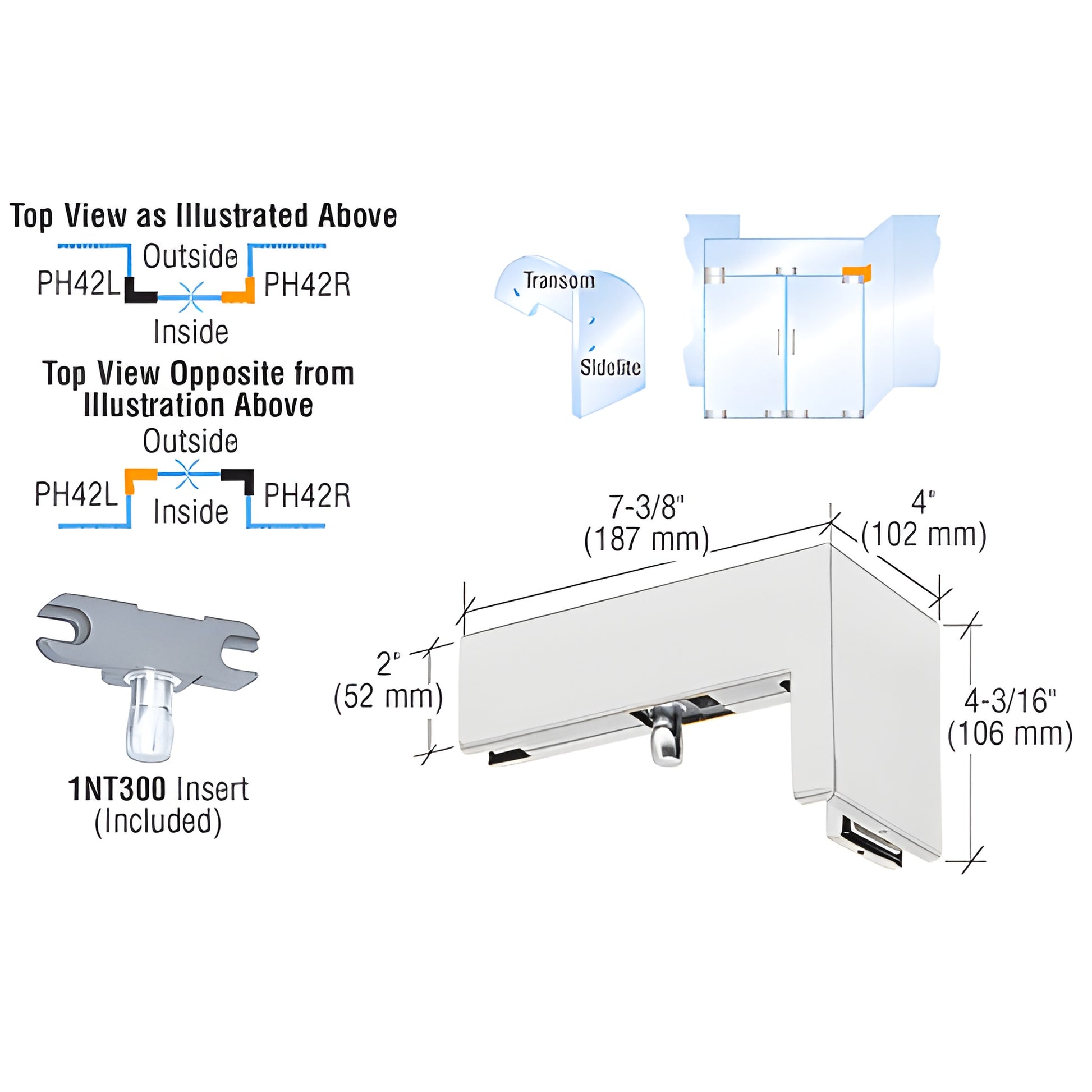

CRL Satin Anodized 90° Right-Hand Sidelite Patch with 1NT300 Insert
CRL Satin Anodized 90° Right-Hand Sidelite Patch with 1NT300 Insert
Regular price
$385.49 CAD
Regular price
Sale price
$385.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH42RA
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. (10 mm)
Handing
Right Hand
Insert Type
1NT300
Mounting Type
Sidelite
Profile
90°
With Insert
Yes
Overview
- Works with 2-9/16" (65 mm) pivot setback door patch fittings
- For 3/8" (10 mm) glass only
- Available left and right handed
CRL 90 Degree Left Hand Sidelite Mounted Transom Patch (SKU: PH42RA) supports a transom from a sidelite glass panel and is designed for 3/8" (10 mm) glass applications. Includes an INT300 insert for mounting a door with CRL's PH21A top door patch fitting. The insert can be relocated to the non-hinged side to allow a double-swing door; use the INT306 transom patch door stop insert to configure a one-way door. Ideal for sidelite-mounted transom assemblies and pivot setback door systems.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) diameter holes and one corner notch; door and panels flat polished; no miters required.
COMES WITH:
Template and instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Order SKU PH42RA for a reliable sidelite-mounted transom patch—contact us to confirm fit and lead time.
