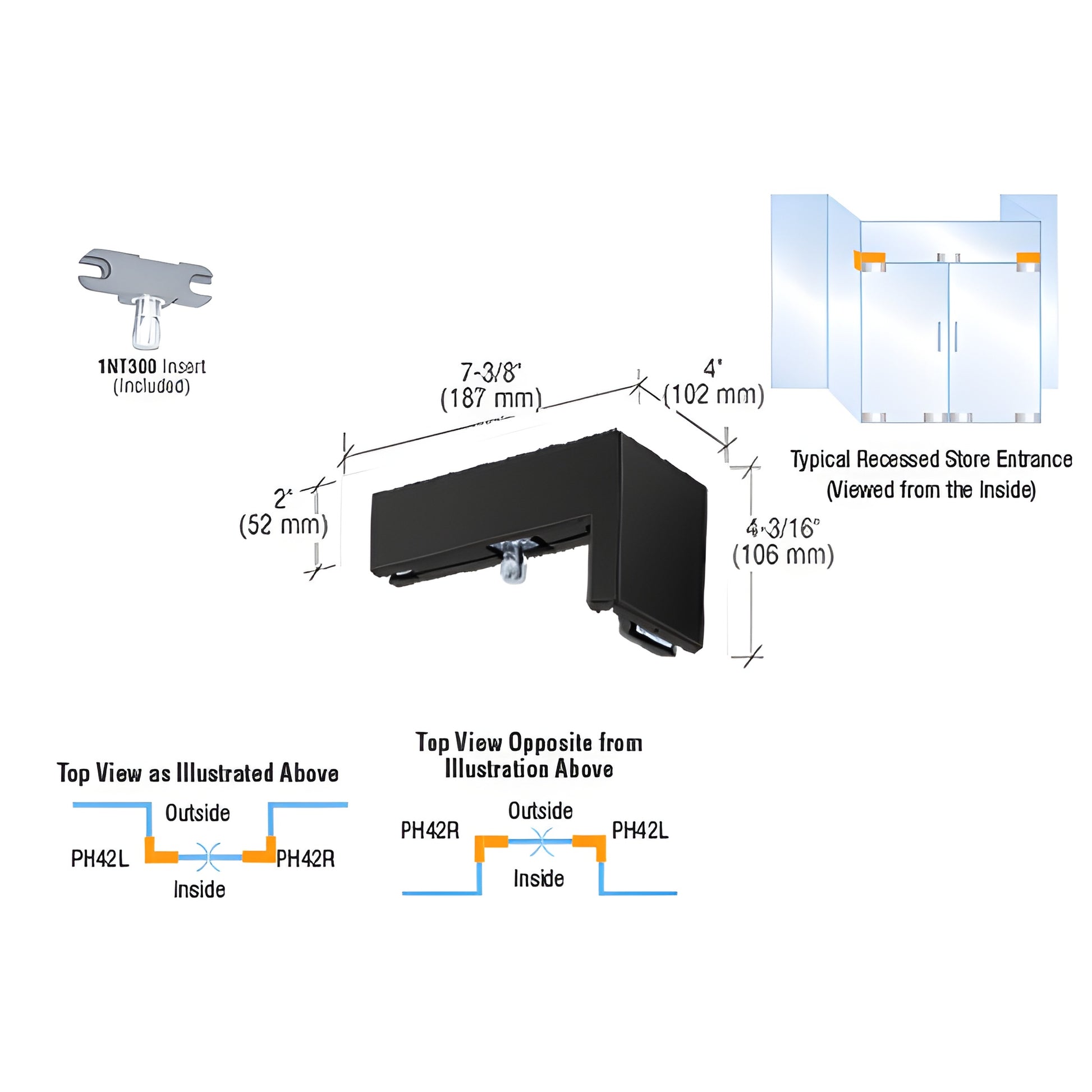

CRL Matte Black 90° Right-Hand Glass Sidelite Patch 1NT300
CRL Matte Black 90° Right-Hand Glass Sidelite Patch 1NT300
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH42RMBL
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Black
Glazing Thickness
3/8 in. (10 mm)
Handing
Right Hand
Insert Type
1NT300
Mounting Type
Sidelite
With Insert
Yes
Overview
- Works with 2-9/16" (65 mm) pivot setback door patch fittings
- For 3/8" (10 mm) glass only
- Left- and right-handed versions available
The CRL 90° Left Hand Sidelite Mounted Transom Patch (SKU: PH42RMBL) supports a transom from a sidelite glass panel and is designed for 3/8" (10 mm) frameless glass applications. Includes the INT300 Insert for mounting a door with CRL's PH21A top door patch fitting. The INT300 Insert can be repositioned to the non-hinged side to allow a double-swing door, and an INT306 transom patch door stop insert can be added to create a one-way door. Ideal for commercial and residential frameless glass sidelite/transom installations where a durable transom support is required.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) diameter holes and one corner notch; door and panels flat polished; no miters required.
COMES WITH:
Template and instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
