CRL Brushed Stainless AMR215 Series Patch Lock
CRL Brushed Stainless AMR215 Series Patch Lock
Regular price
$126.02 CAD
Regular price
Sale price
$126.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# AMR215BS
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

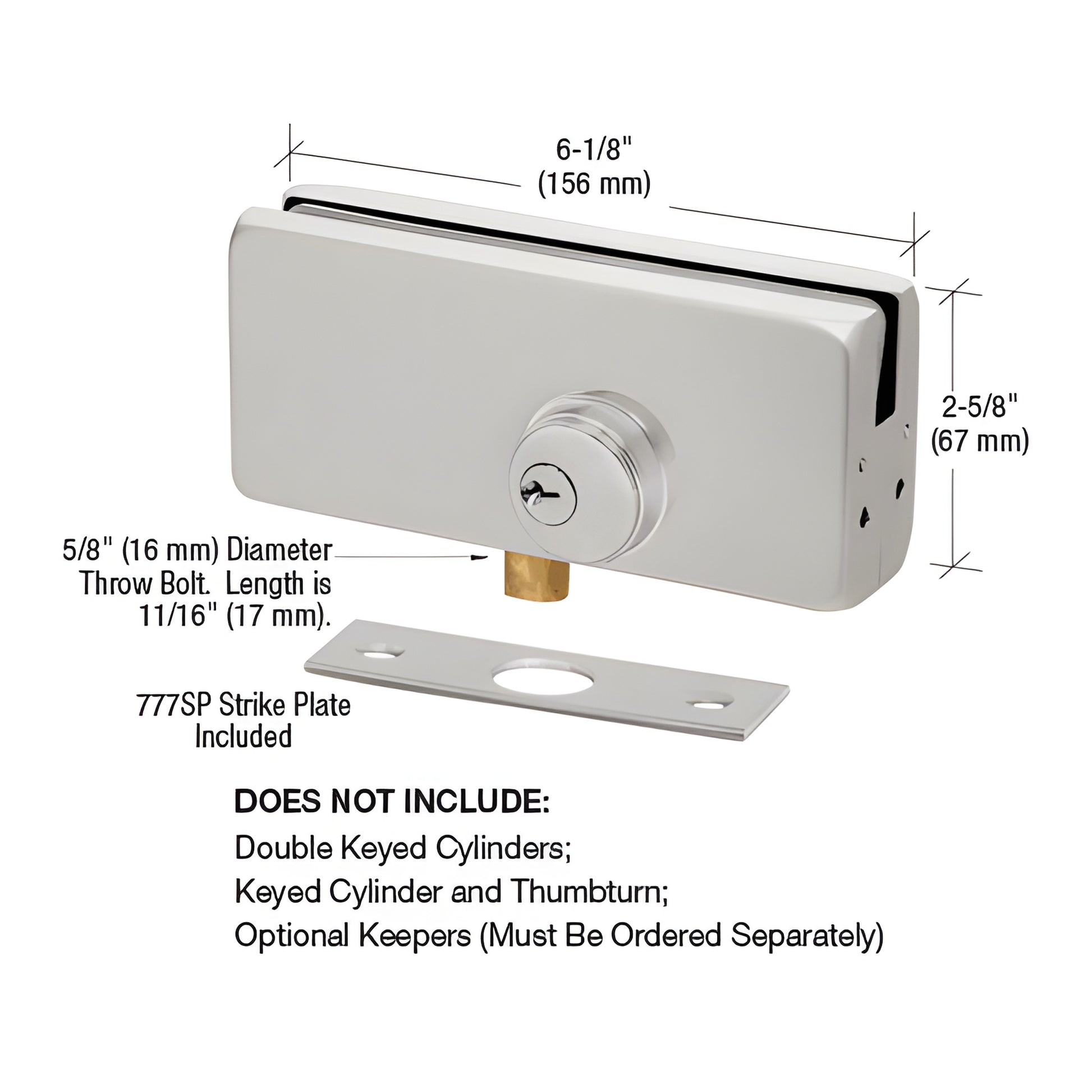

| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 3/8 in.,1/2 in. (10 mm,12 mm) |
| Height 2-9/16 in. | (65 mm) |
| Width 6-1/8 in. | (156 mm) |
Overview
The American Style Patch Lock is a robust upgrade of the AMR205 Lock, featuring a high-density cast body with a secure lock mechanism.
Designed for 3/8" or 1/2" glass, it comes in five architectural finishes, providing enhanced security with a taller profile housing that secures more glass.
Ideal for top and bottom corner applications, this lock can be paired with double keyed cylinders or a keyed cylinder/thumbturn, which must be ordered separately.
Installation requires top or bottom mounts with a 3/4" diameter hole and corner notch, and it includes a template and instructions.
Note: Optional keepers and cylinders are not included and must be purchased separately.
For double door configurations, a Bottom Patch Lock is necessary for the inactive leaf.
Designed for 3/8" or 1/2" glass, it comes in five architectural finishes, providing enhanced security with a taller profile housing that secures more glass.
Ideal for top and bottom corner applications, this lock can be paired with double keyed cylinders or a keyed cylinder/thumbturn, which must be ordered separately.
Installation requires top or bottom mounts with a 3/4" diameter hole and corner notch, and it includes a template and instructions.
Note: Optional keepers and cylinders are not included and must be purchased separately.
For double door configurations, a Bottom Patch Lock is necessary for the inactive leaf.
Specifications
Templates
Cleaning & Maintenance
