• PHA6BS brushed stainless frameless glass door hardware kit for paired doors with transom - patches, pivots, stop
1 1

CRL

CRL Brushed Stainless Double Door Patch Kit for Fixed Transom - No Lock

CRL Brushed Stainless Double Door Patch Kit for Fixed Transom - No Lock

$733.87 CAD
$733.87 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA6BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Pair With Transom
Door Type
A Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • Most Popular Design
  • For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
  • Available With or Without Locks
CRL PHA6 North American Door Kits (SKU: PHA6BS) include the hardware needed to assemble a pair of free-swinging frameless glass doors with a fixed transom (glass and additional transom supports not included). Pivot setback is 2-3/4" (70 mm). Compatible with a separately ordered floor closer with tapered spindle. Ideal for commercial and high-traffic applications seeking a clean, modern frameless glass door solution.

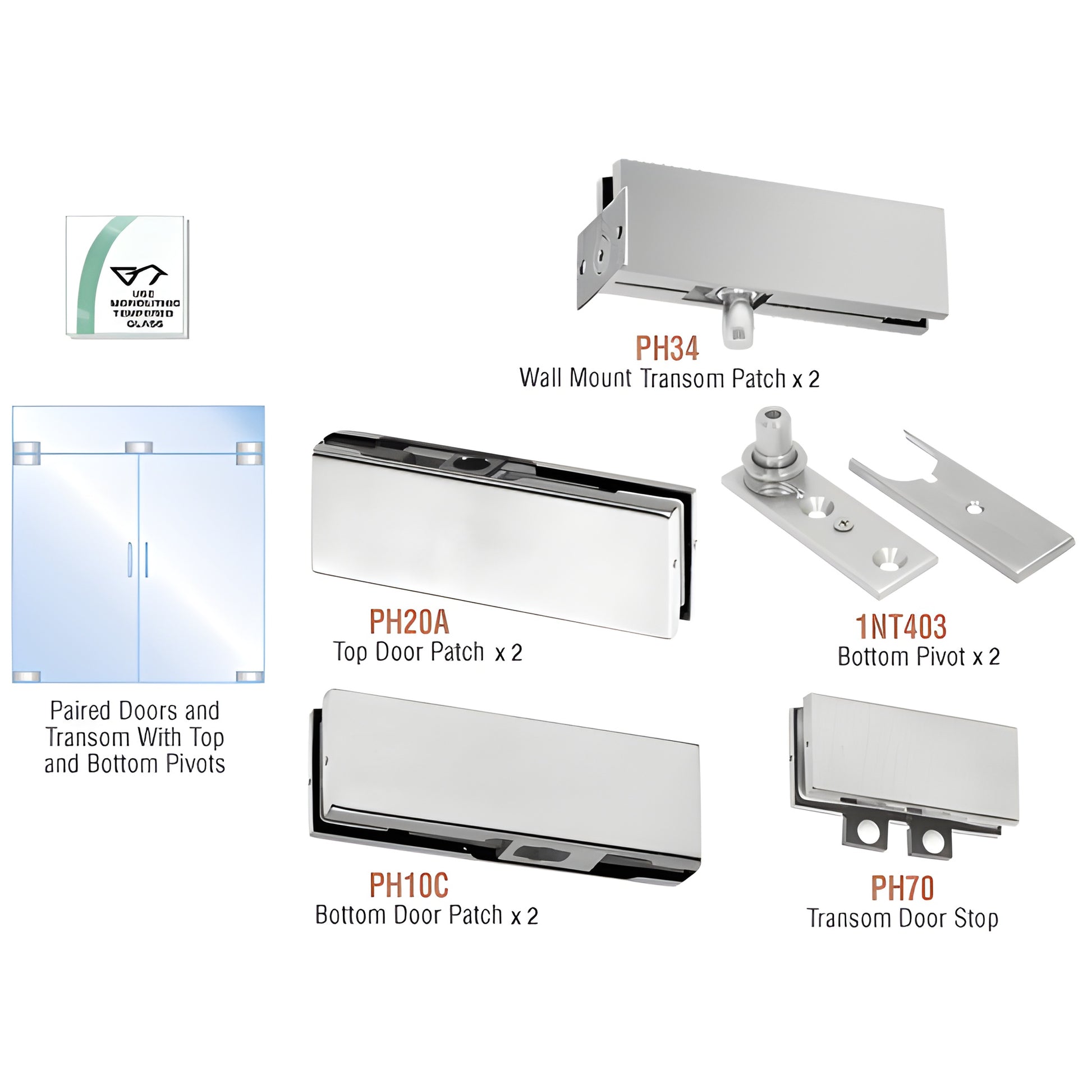

Kit Contains:
  • 2 - PH34 Wall Mount Transom Patches
  • 2 - PH20A Top Door Patches
  • 2 - PH10C Bottom Door Patches
  • 1 - PH70 Transom Door Stop
  • 2 - 1NT403 Bottom Pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with locks include two Cat. No. AMR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.

Note: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

Choose PHA6BS for a proven, commercial-grade frameless glass door hardware kit—shop now or contact CRL for a quote.
